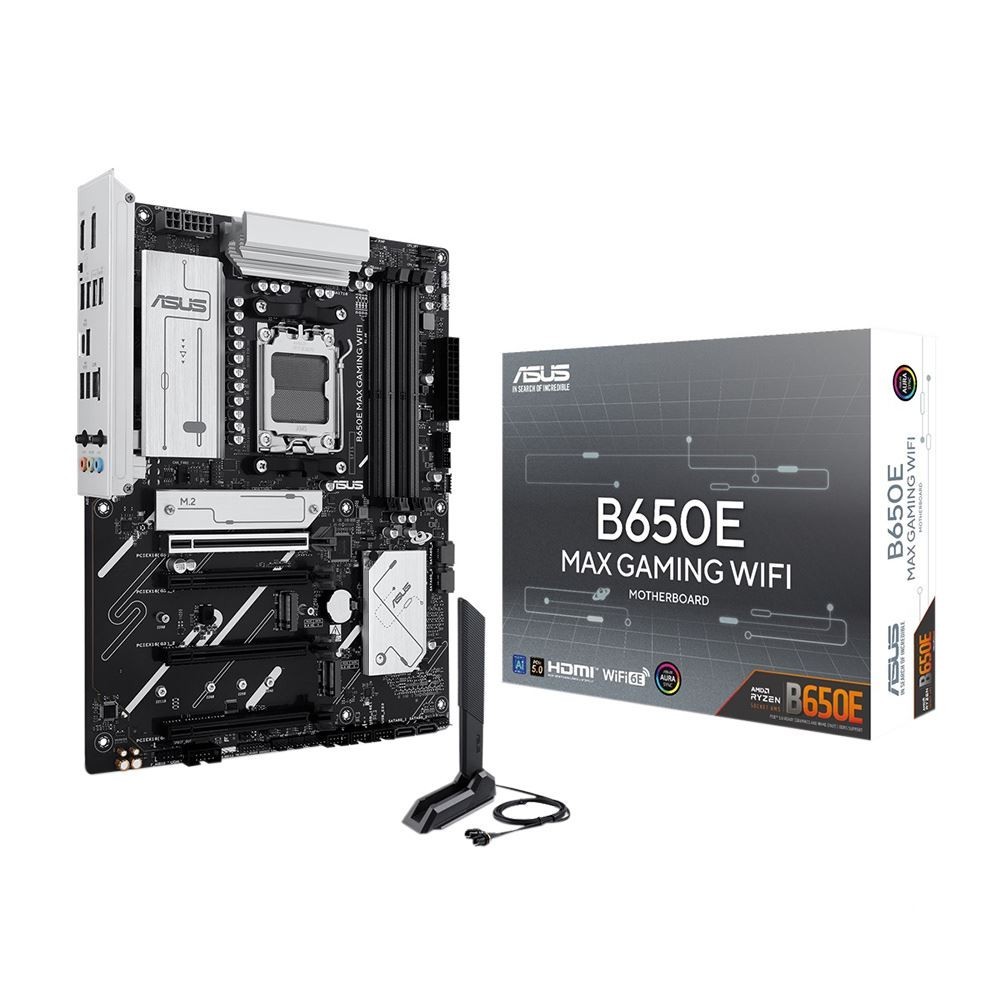

Brand New - ASUS B650E MAX GAMING WIFI AMD AM5 ATX MotherboardFactory sealed in retail boxASUS B650E MAX GAMING WIFI AMD AM5 ATX Motherboard
Product InformationMfr Part#B65EMAXGMWFUPC197105932449General B650EBIOS256 Mb Flash ROM, UEFI AMI BIOSManageabilityWOL
PXECPU SupportAMD CPU SupportRyzenSocket TypeAM5Memory SpecificationsECCNon-ECC; Non-RegisteredMemory TypeDDR5-4800
DDR5-5200
DDR5-5400
DDR5-5600
DDR5-5000
DDR5-5800Memory Speeds Supported8000+ MHz (OC)Memory Slots4 x 288pin DIMMMemory Channel SupportDual ChannelMax Memory Supported256GBMaximum Memory Supported Per Slot64GBVideo SpecificationsOnboard Graphic ChipsetRequires CPU with Integrated GraphicsStorage SpecificationsM.2 Port Type2242
2260
2280
22110SATA Express3 x M.2 Socket 3
M KeySATA 6Gb/s4RAID SupportRAID 0
RAID 1
RAID 5
RAID 10Audio SpecificationsAudio Channels7.1NetworkingWiFi SupportOnboard WiFiLAN ChipsetRealtek 2.5Gb EthernetLAN Speed10/100/1000/2500MbpsWireless Technology802.11b
802.11g
802.11a
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
Bluetooth v5.3
WiFi 6E (802.11ax)Expansion SlotsPCI Express 4.0 x161PCI Express 5.0 x161PCI Express 3.0 x162Back Panel PortsLAN Ports1 x 10/100/1000/2500 RJ-45 LANAudio Ports1 x 3.5 mm Microphone
1 x 3.5 mm Line-In
1 x 3.5 mm Line-OutSpecialty Ports2 x WiFi Antenna PortsUSB 2.02 x USB 2.0 (Type-A)USB 3.11 x USB 3.2 (Gen 2 Type-C)
2 x USB 3.2 (Gen 1 Type-A)
3 x USB 3.2 (Gen 2 Type-A)Video Connectors1 x HDMI 2.1
1 x DisplayPort 1.4Internal I/O & ConnectorsHeaders4 x System Fan Header
1 x Water Pump Header
2 x CPU Fan HeaderUSB3 x USB 2.0 Headers (6 Ports)
1 x USB 3.2 Gen 1 Type-A Header (2 Ports)
1 x USB 3.2 Gen 1 Type-C Header (1 Port)Other I/O3 x Addressable LED HeadersPowerPower Connectors1 x 24-pin ATX Connector
1 x 8-pin +12 V Connector
1 x 4-pin +12 V ConnectorATX Connector24-pin ATX Power ConnectorPhysical SpecificationsDepth12.00 in. (304.80 mm)Width9.61 in. (244.00 mm)Form FactorATXWarrantyParts3 YearsLabor3 YearsPackage ContentsWhat's in the BoxMotherboard, 2x SATA Cables, Antenna, M.2 Rubber Package, M.2 Screws
