Dear valued buyer, thank you for viewing our page. We will provide you best service and high quality products. Every Item will be inspect before ship it out, we ensure it qualified in orders, and everyone will be packaged carefully. You must be happy to do business with us.

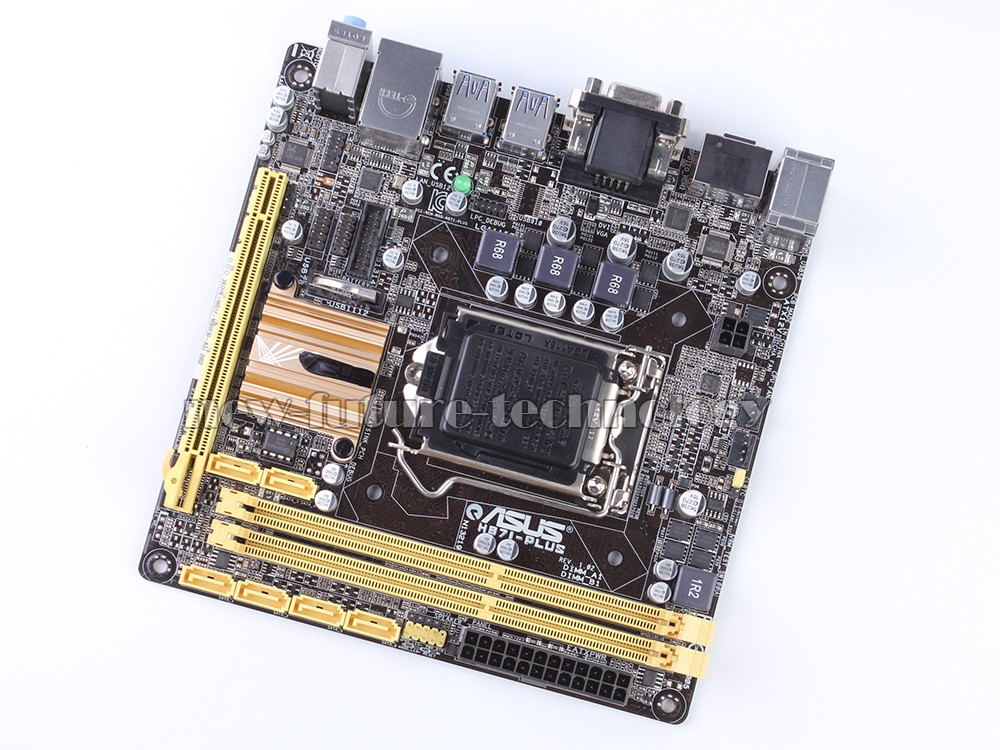

we specialize in computer accessories and so on. we only sell original parts please buy with confidence. Motherboard model H87I-PLUS
Package Included
1 x Motherboard.
2x sata cable(free gift).
1 xI/O back panel.
We accept PayPal payment ONLY.
This item will be shippedworldwild by mail as soon as possible.
We only ship to address,please give us the exact address and phone# through .
Please note The tax of import duty is not included in the item price or shipping fees. These charges are the buyer's responsibility. Please check with your country's customs office to determine what these additional costs will be prior to offerding or buying.
1.Standard shipping :
Usually To United States be shipped via ePacket ,SpeedPAK , other countries will be shipped via AIR MAIL ,not expedited shipping.
Shipping time(Standard shipping)
Area
Normally delivery time
USA
10-20 days
European Union
12-25 days
Australia Canada Europe Countries
12-25 days
Asia countries
15-30 days
Other countries
15-40 days
it maybe arrive late,if you want to get it fast, please choose expedited shipping when buying.
My items has still not arrived ?
Read the shipping details firstto determine the expected delivery time , if your items has not
arrived within that time(weekends and holidays were not included ),please email us.
2. Expedited shipping:
USA ,UK, Europe,CA ,Usually need 3-5 days arrive.other country 4-7 days,it must add 20-35USD shipping fee(according to your country).
1. Customer should make initial contact in7 days from receiving the order. Products must be returned in originalcondition.
2. Please contact us before returning itemsand we will provide the shipping address. DO NOT send without communication.
3. Both shipping cost: The cost of itemshipping back is buyer's responsibility, the resend shipping cost is seller's.
4. Please do not return any items without an authorization number or other instructions by us. Any packages that are send without our knowledge will be refused and no replacements will be issued. Wrong item ordered or non defective part returns require a 20% restocking fee. All products are marked with serial number and QC badge.Any products returned without our serial number and QC badge will be rejected as not our parts..
General information:
CPU
Intel® Socket 1150 for 4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 22 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to ASUS official website for CPU support list
Chipset
Intel® H87
Memory
2 x U-DIMM, Max. 16GB, DDR3 1600/1333/1066 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
* Refer to ASUS official website for the Memory QVL (Qualified Vendors Lists).
Graphic
Integrated Graphics Processor
- Supports HDMI with max. resolution 4096 x 2304 at 24 Hz
- Supports DVI with max. resolution 1920 x 1200 at 60 Hz
- Supports RGB with max. resolution 1920 x 1200 at 60 Hz
Maximum shared memory of 1024 MB
Expansion Slots
1 x PCIe 3.0/2.0 x16
Storage
Intel® H87 chipset :
6 x SATA 6Gb/s port(s), yellow
Support Raid 0, 1, 5, 10
LAN
Intel® I217, 1 x Gigabit LAN Controller(s)
Audio
Realtek® ALC887 8-Channel High Definition Audio CODEC *1
USB Ports
Intel® H87 chipset :
6 x USB 3.1 Gen 1 port(s) (4 at back panel, , 2 at mid-board)
Intel® H87 chipset :
8 x USB 2.0/1.1 port(s) (4 at back panel, , 4 at mid-board)
Special Features
ASUS 5X PROTECTION :
- ASUS DIGI+ VRM - Phase digital power design
- ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention
- ASUS ESD Guards - Enhanced ESD protection
- ASUS All 5K-Hour Solid Capacitors - 2.5x long lifespan with excellent durability
- ASUS Stainless Steel Back I/O - 3x more durable corrosion-resistant coating
ASUS TurboV EVO :
- GPU Boost
ASUS EPU :
- EPU
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
- Anti-Surge
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- Network iControl
- USB 3.0 Boost
ASUS Quiet Thermal Solution :
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
TPM IC Onboard
Back I/O Ports
1 x PS/2 keyboard (purple)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.1 Gen 1
4 x USB 2.0
1 x Optical S/PDIF out
3 x Audio jack(s)
Internal I/O Ports
1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s) (1 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel connector(s)
1 x Internal speaker connector(s)
1 x System panel(s)
1 x Clear CMOS jumper(s)
BIOS
64 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a
Manageability
WOL by PME, PXE
Form Factor
Mini ITX Form Factor
6.7 inch x 6.7 inch ( 17 cm x 17 cm )
Note
*1: Use a chassis with HD audio module in the front panel to support an 8-channel audio output
