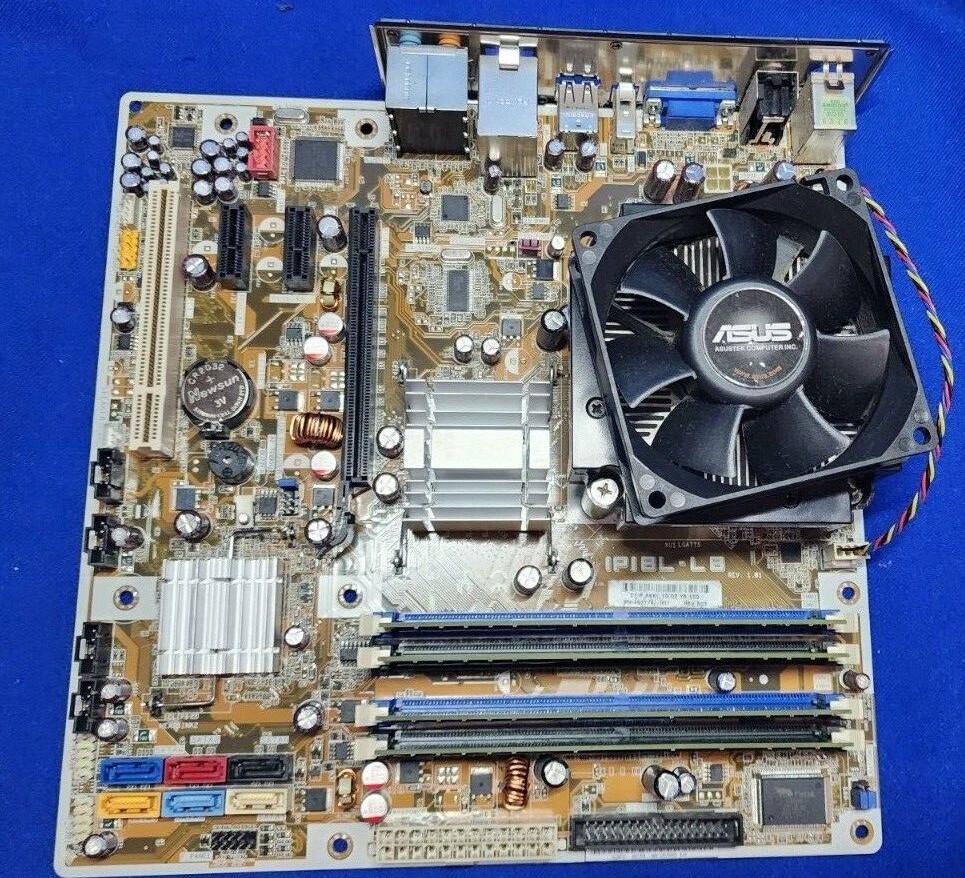

ASUS IPIBL-LB LGA 775 Intel G33 mATX Intel Motherboard with CPU
All boards used pulled from working environments and tested to boot to bios.
All boards seems to be in over all good condition, with normal sign of use, no bulging caps were noted upon inspection.One variant listed (High End Bundle) features more I/O Options such as 1394, 6 audio ports including SPDIF in and out and 6 vs 4 SATA connectors.This bundle comes with 4x 1GB sticks of Supper talent ram @667, Intel E8400 3.0GHZ Dual core and an Asus Branded CPU coolerMid range offer omits the 1394, 3 of the audio ports and SPDIF as well as SATA connectors. bundle features an Intel E7500 2.93GHZ Dual core and either an Asus or non Asus branded CPU Cooler.
Low End offer omits the 1394, 3 of the audio ports and SPDIF as well as SATA connectors. bundle features an Intel E7200 2.53GHZ Dual core and no CPU cooler nor backplate.
All bundles Feature I/O Shields.
Items will be carefully packed and shipped via USPS.Sold as is, no returns accepted.Please feel free to ask any questions and I will answer the best of my abilities.Feeling lucky? Feel free to make an offer.Thanks for looking!ModelBrand ASUSModel IPIBL-LB
Supported CPUCPU Socket Type LGA 775CPU Type Core 2 Duo (C) 4x00 up to E4400 / Core 2 Duo (C) E6x00 up to E6700 / Core 2 Duo (W) E8xxx / Core 2 Quad (K) up to Q6600 / Core 2 Quad (Y) up to Q9xxxxFSB 800/1066/1333 MHz
ChipsetsChipset Intel G33South Bridge Intel ICH9R
Onboard VideoOnboard Video Chipset GMA 3100
MemoryNumber of Memory Slots 4x240pinMemory Standard DDR2 667 / DDR2 800Maximum Memory Supported 8GB (2gb per DIMM max)Channel Supported Dual Channel
Expansion SlotsPCI Express 2.0 x16 PCI Express x1 2.0x1PCI Slots 1
Storage DevicesPATA 1SATA 3Gb/s 4 (Or) 6x SATA 3Gb/sOnboard AudioAudio Chipset Realtek ALC888SAudio Channels 7.1Channels
Onboard LANMax LAN Speed Realtek 8111C 10/100 Mbps
Rear Panel PortsPS/2 2USB 1.1/2.0 4xIEEE 1394 0 (Or) 1S/PDIF Out 0 (Or)1 x CoaxialS/PDIF IN 0 (Or)1 x CoaxialAudio Ports 3 (Or) 6 PortsVGA 1RJ45 1
Internal I/O ConnectorsOne 24-pin ATX power connectorOne 4-pin ATX power connectorFour (Or) Six SATA connectorsOne floppy drive connectorTwo 12v fan connectors for CPU fan and PC fanOne 9-pin header for power button, reset button, power LED, and HDD LEDThree USB 2.0 headers supporting 6 USB ports or devicesOne IEEE 1394a headerOne SPDIF audio output headerOne 4-pin audio line-input connector (interrupts line input on back panel, Vista capable,requires matching front audio jack module)One 9-pin audio header for headphone-out and microphone-in (yellow, Vista capable,requires matching front audio jack module)Intel high-definition Audio/Modem Link (2x8 HDMI connector)Physical SpecForm Factor mATXDimensions (W x L) 9.6" x 9.6"Power Pin 24 Pin
