Dear Buyers:
Welcome to our store.Before shipping, we'll test and examine all the items,ensure there is no defects or DOA.
We'll put the item into an Anti-electrostatic plastic bag, then put it into a safe package to avoid being injured by shipping.Warranty:
Our item warranty 90 days, the following reason we don't accept returns:
A. Wrong order.
B. The item didn't buy from us.
C. Damage the item on purpose.Kindly Tips:
A. If the motherboard can't work correctly, please first check your CPU whether can be compatible with our motherboard, then check your video card or power supply.
B. Please DO NOT use single-sidememory, most motherboards can't support suchmemory.C. We DO use genuine brandmemory, please do not use fakememory or if you're not sure whether yourmemoryfake or not, please do not try it on our motherboard.Packet Contained:
1 x motherboard
2 x SATA II cables
1 x I/O shield

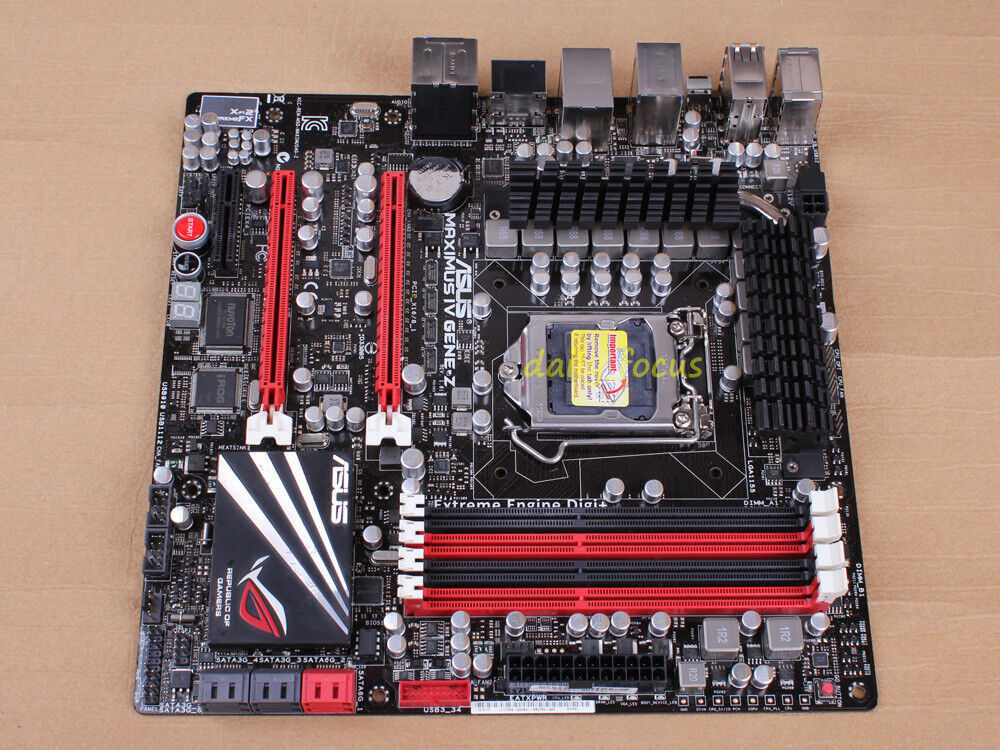

Parts Specification:
CPU
Intel® Socket 1155 for 2nd Generation Core™ i7/Core™ i5/Core™ i3 Processors
Supports Intel® 32 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to ASUS official website for CPU support list
Chipset
Intel® Z68
Front Side Bus
1066/ 800 MHz
Memory
4 x DIMM, Max. 32GB, DDR3 Hz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to ASUS official website for the Memory QVL (Qualified Vendors Lists).
* Due to CPU behavior, DDR3 2200/2000/1800 MHz memory module will run at DDR3 2133/1866/1600 MHz frequency as default.
Graphic
Integrated Graphics Processor
VGA output support : HDMI port
- Supports HDMI with max. resolution 1920 x 1200 @ 60 Hz
Multi-GPU Support
Supports NVIDIA® SLI™ Technology
Supports AMD CrossFireX™ Technology
Supports LucidLogix® Virtu™ Technology
Expansion Slots
2 x PCIe 2.0 x16 (x16 or dual x8)
1 x PCIe 2.0 x4
Storage
Intel® Z68 chipset :
2 x SATA 6Gb/s port(s), red
4 x SATA 3Gb/s port(s), gray
Support Raid 0, 1, 5, 10
Support Intel® Smart Response Technology on 2nd generation Intel® Core™ processor family
JMicron® JMB362 controller : *1
2 x eSATA 3Gb/s port(s), red
LAN
Intel®, 1 x Gigabit LAN Controller(s)
Audio
SupremeFX X-Fi 2 built-in 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio Feature :
- X-Fi® Xtreme Fidelity™
- EAX® Advanced™ HD 5.0
- THX® TruStudio PRO™
- Creative ALchemy
- Blu-ray audio layer Content Protection
- Optical S/PDIF out port(s) at back panel
USB Ports
ASMedia® USB 3.0 controller :
4 x USB 3.0 port(s) (2 at back panel, blue, 2 at mid-board)
Intel® Z68 chipset :
12 x USB 2.0 port(s) (8 at back panel, black, 4 at mid-board)
ROG Exclusive Features
ROG Connect
Extreme Engine Digi+ :
- 8 -phase CPU power design + 4 -phase iGPU power design
- 2 -phase Memory power design
Mem TweakIt
ROG Extreme OC kit :
- Debug LED
ProbeIt
UEFI BIOS features :
- ROG BIOS Print
- GPU.DIMM Post
GameFirst
iROG
Extreme Tweaker
Loadline Calibration
Overclocking Protection :
- COP EX (Component Overheat Protection - EX)
- ASUS C.P.R.(CPU Parameter Recall)
Special Features
ASUS TurboV EVO :
- CPU Level Up
ASUS Exclusive Features :
- MemOK!
- Onboard Button : Power/Reset/Clr CMOS (at back IO)
ASUS Quiet Thermal Solution :
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS Q-Shield
- ASUS O.C. Profile
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
ASUS Q-Design :
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector
Back I/O Ports
1 x PS/2 keyboard/mouse combo port(s)
1 x HDMI
2 x eSATA 3Gb/s
1 x LAN (RJ45) port(s)
2 x USB 3.0
8 x USB 2.0 (white port can be switched to ROG Connect)
1 x Optical S/PDIF out
6 x Audio jack(s)
1 x Clear CMOS button(s)
Internal I/O Ports
1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
2 x SATA 6Gb/s connector(s)
4 x SATA 3Gb/s connector(s)
2 x CPU Fan connector(s)
3 x Chassis Fan connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
6 x ProbeIt Measurement Points
1 x Power-on button(s)
1 x Reset button(s)
1 x ROG Connect switch(es)
1 x Go Button(s)
1 x Clear CMOS jumper(s)
BIOS
64Mb Flash ROM, EFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI2.0a Multi-Language BIOS
Manageability
WfM2.0, DMI2.0, WOL by PME, WOR by PME, PXE
Form Factor
uATX Form Factor
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Note
*1: These SATA ports are for data hard drivers only. ATAPI devices are not supported.
Shipping:
CountryAgentEstimate timeUSAExpedited Shipping3-5 business Shipping3-6 business daysUK,Germany,FranceExpedited Shipping4-6 business daysOther EuropeCountryExpedited Shipping5-8 business daysOther CountryExpedited Shipping6-10 business days Custom Tax:
Please note we're unable to take any responsibility for any custom delay or tax. The fees of import duty/tax are not included in the item price or shipping fee, these are the buyer's responsibility.
Please check with your local custom office to determine what these additional costs would be before payment. And these fees are normally collected by the delivery company, when you pick up item.
Customer Service:
Dear buyer, we sincerely do business with you. If you satisfy with our service and products, please leave us positive response. Your recognition is our power to move forward, especially to a beginner like us. Your great comments will lead us to get more potential customers, and make us more confident to develop business and serve you better.
But if you don't satisfy with the item, or you have any concern about our transaction, please do first contact us, we will response you in 24 hours, and do our best to help you solve any problems.
Thank you for watching
