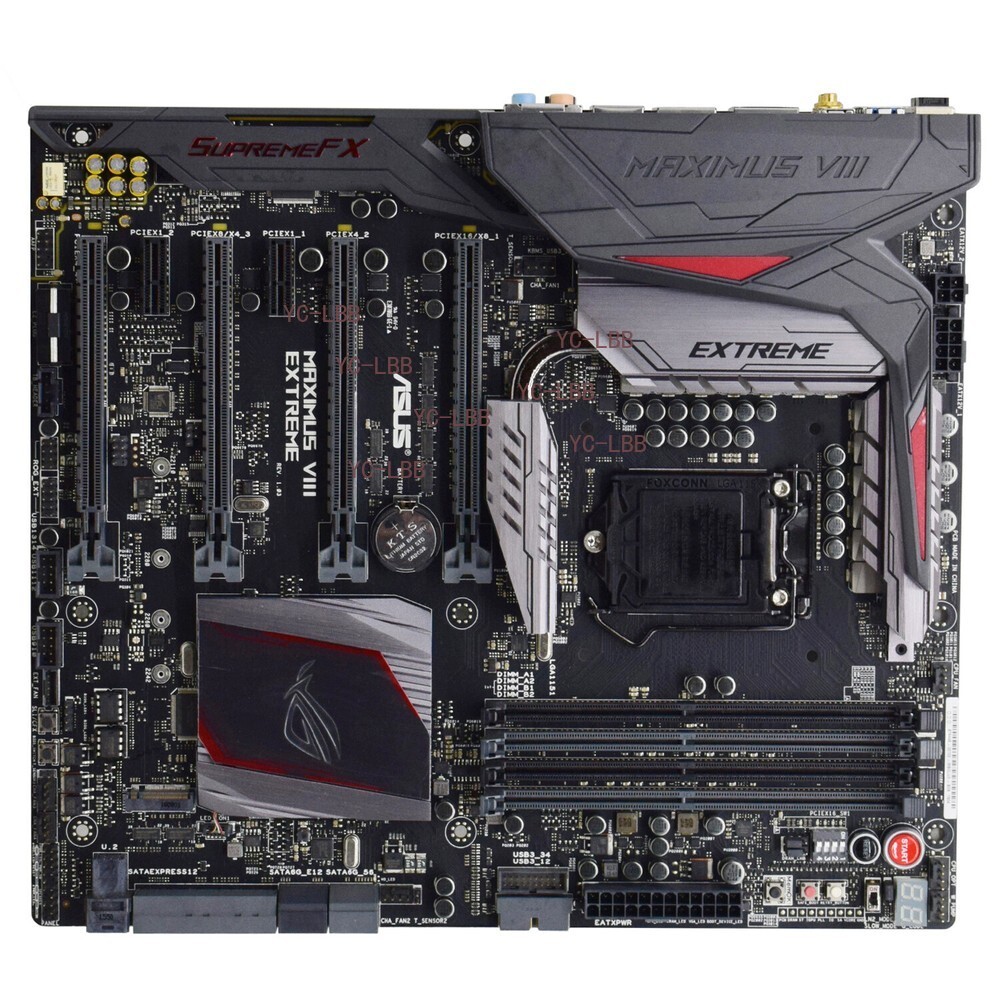

ASUS MAXIMUS VIII EXTREME Motherboard E-ATX Intel Z170 LGA1151 DDR4 64GB SATA3 HDMI
Note: If the product is damaged in transportation or has quality problems and needs to be returned, the freight shall be borne by the seller. If the product is damaged by the buyer, the buyer will bear the expenses incurred when it needs to be returned or replaced.
Compatible Model:
ASUS MAXIMUS VIII EXTREME Descriptions:
- Original quality item, without retail package.
- 100% tested working before shipping.
- Updated with the latest BIOS version.
- Free OEM I/O shield included, without CMOS battery for safe sending.
- Please check and confirm the model of your device before purchase.
- We provide 90 days warranty, the buyer pays the postage of the returned package.
CPU LGA1151 socket for 6th Generation Intel® Core™ i7/ i5/ i3/Pentium®/ Celeron® Processors Supports 14 nm CPU Supports Intel® Turbo Boost Technology 2.0* * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
Chipset Intel® Z170 Express Chipset
Memory Dual channel memory architecture 4 x DIMM, max. 64GB, DDR4 3800(OC)* / 3733(OC)* / 3700(OC)* / 3600(OC)* / 3500()OC)* / 3466(OC)* / 3400(OC)* / 3333(OC)* / 3300(OC)* / 3200(OC)* / 3000(OC)* / 2800(OC)* / 2666(OC)* / 2400(OC)* / 2133* MHz, non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) * Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Please refer to Memory QVL(Qualified Vendors List) for details..
Expansion slots New 6th Gen Intel® Core™ Processors - 3 x PCIe 3.0/2.0 x16 slot (supports x16, x8/x8, x8/x4/x4) Intel® Z170 Express Chipsets - 1 x PCIe 3.0/2.0 x16 slot (max. at x4 mode)* - 2 x PCIe 3.0/2.0 x1 slots * The PCIe x4_4 slot shares bandwidth with SATA6G_56. The PCIe x4_4 is default set at x2 mode.
Multi-GPU support Supports NVIDIA® Quad-GPU SLI™ Technology Supports AMD® 4-way/ 3-way/2-way Quad-GPU CrossFireX™ Technology
Graphic Integrated Intel® HD Graphics Processor - DisplayPort 1.2* with max. resolution 4096x2304@24Hz - HDMI 1.4 with max. resolution 4096 x 2160@24Hz - Intel® InTru™ 3D/Quick Sync Video/Clear Video HD Technology/ Insider™ - Supports up to 2 displays simultaneously - Maximum shared memory of 512MB * DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays
Storage Intel® Z170 Express Chipset - 2 x SATA Express ports [gray] (compatible with 4 x SATA 6.0 Gb/s ports) - 6 x SATA 6Gb/s ports [gray] (4 ports from 2 x SATA Express ports) - 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (PCIe 3.0 x4 and SATA modes)** - Intel® Rapid Storage Technology 14 supports RAID 0, 1, 5 and 10* - Intel® Smart Response Technology* - 1 x U.2 port, supports PCIe 3.0 x4 NVM Express storage** ASMedia® SATA 6Gb/s controller - 2 x SATA 6Gb/s ports (black)*** * The supported functions depend on the CPU installed. ** The M.2 slot shares bandwidth with U.2 slot and SATA Express 1 slot. Please refer to user manual for detailed information. *** These SATA ports are for data hard drivers only. ATAPI devices are not supported.
LAN Intel® I219-V Gigabit LAN- Dual interconnect between the integrated Media Access Controller (MAC) and physical layer (PHY) Anti-surge LANGuard ROG GameFirst technology
Wireless & Bluetooth Wi-Fi 802.11 a/b/g/n/ac supports dual frequency band 2.4/5 GHz Up to 1300Mbps transfer speed Bluetooth v4.0/3.0+HS
Audio ROG SupremeFX 2015 Audio 8-Channel High Definition Audio CODEC - ES9023P High Definition Codec - 2VRMS Headphone Amp into (32-600 Ohms) - SupremeFX Shielding Technology - Jack-detection, Multi-streaming, and Front Panel Jack-retasking - Optical S/PDIF out port at back panel Audio Feature: - Sonic SenseAmp - Sonic Studio II - Sonic Radar II - DTS Connect
USB Intel® Z170 Express Chipset - supports ASUS USB 3.1 Boost: - 6 x USB 3.0 ports (2 ports at back panel [blue], 4 ports at midboard [gray])* - 6 x USB 2.0 ports (6 ports at mid-board)*** Intel® USB 3.1 Controller: - 2 x USB 3.1 ports (1 Type-A and 1 Type-C ports at back panel) ASMedia® USB 3.1 controller - supports ASUS USB 3.1 Boost: - 2 x USB 3.1 ports (2 Type-A at back panel [Red]) ASMedia® USB 3.0 controller - supports ASUS USB 3.1 Boost: - 2 x USB 3.0 ports (2 ports at back panel [blue]) *** 2 x USB2.0 ports at mid-board (USB1314) shares with ROG extension (ROG_EXT) port.
Back I/O Ports 1 x HDMI port 1 x DisplayPort 1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.0) 1 x BIOS Flashback Button 1 x Clear CMOS button 4 x USB 3.1 ports (1 x Type-C [black] and 3 x Type-A [red]) 4 x USB 3.0 ports [blue] 1 x PS/2 keyboard/mouse combo port 1 x anti-surge LAN (RJ45) port 1 x Optical S/PDIF out 5 x Gold-plated audio jacks
Internal I/O Ports 2 x USB 3.0 connector supports additional 4 USB 3.0 ports 3 x USB 2.0 connectors support additional 6 USB 2.0 ports [one connector via ROG_EXT header] 2 x SATA Express connectors (compatible with 4 SATA 6Gb/s ports) 4 x SATA 6Gb/s connectors [2 x gray; 2 x black] 1 x U.2 port 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support 1 x ROG extension (ROG_EXT) header 1 x 4-Pin CPU fan connector 1 x 4-Pin CPU OPT fan connector 4 x 4-Pin Chassis fan connectors 1 x 4-pin Water pump connector 1 x 5-pin EXT_FAN(Extension Fan) connector 3 x Thermal sensor connectors 1 x 24-pin EATX power connector 1 x 8-pin EATX 12V power connector 1 x 4-pin EATX 12V power connector 1 x EZ Plug connector 9 x ProbeIt Measurement Points 1 x Power-on button 1 x Reset button 1 x Safe Boot button 1 x ReTry button 1 x LN2 Mode jumper 1 x Slow mode switch 1 x Memory switch header 1 x Front panel audio connector (AAFP) 1 x System panel connector 1 x MemOK! Button 1 x BIOS Switch button 1 x SLI/CFX switch (2/3/4-WAY adjustments)
BIOS 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information
Manageability WfM2.0, DMI3.0, WOL by PME, PXE
Software Drivers ROG GameFirst technology ROG RAMDisk ROG RAMCache ROG CPU-Z ROG Mem TweakIt Overwolf Kaspersky® Anti-Virus DAEMON Tools Pro Standard ASUS WebStorage HomeCloud ASUS Utilities
Operating System Support Windows® 10* Windows® 8.1* Windows® 7 * 64-bit supported only
Form Factor Extended ATX Form Factor, 12”x 10.7” (30.5cm x 27.2cm)
