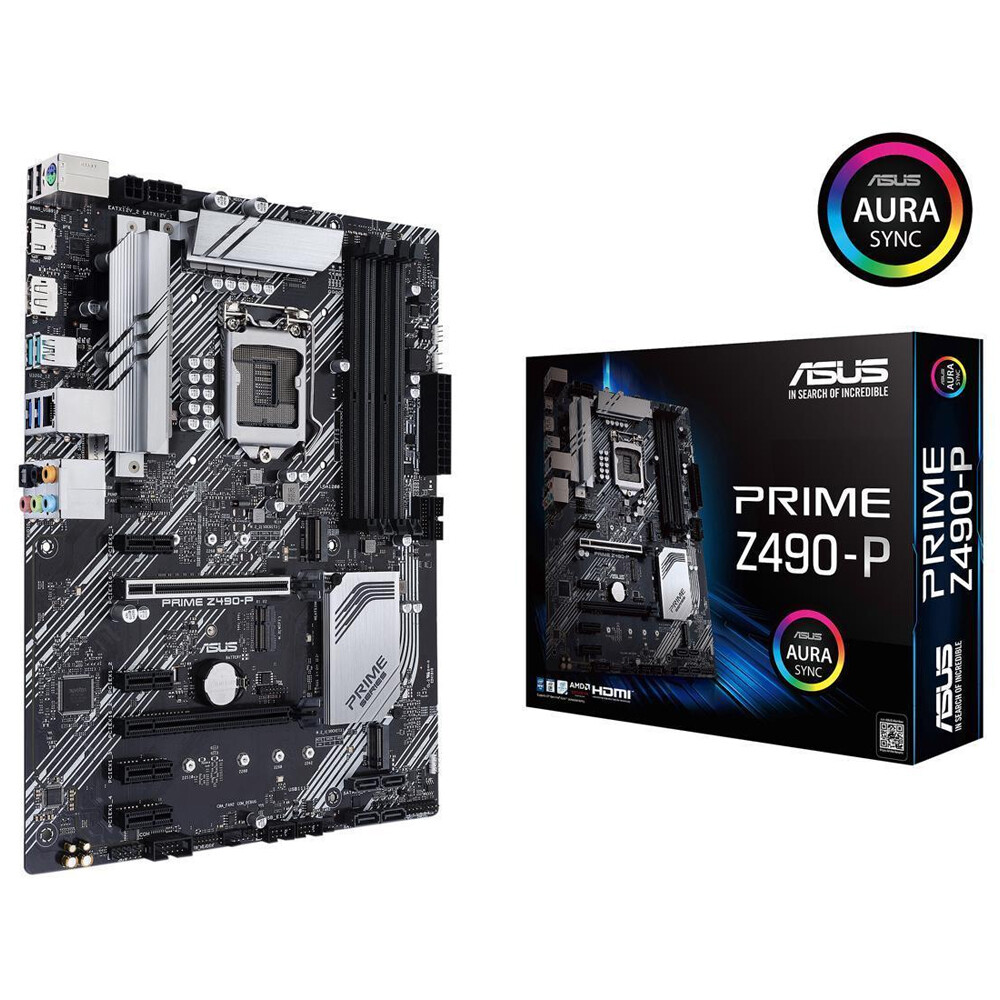

ModelBrandASUSModelPRIME Z490-PSupported CPUCPU Socket Type LGA 1200CPU TypeIntel Socket LGA1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors*
* Refer to www.asus.com for CPU support list.Supported CPU TechnologiesSupports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.ChipsetsChipset Intel Z490MemoryNumber of Memory Slots4×288pinMemory StandardDDR4 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory*
* 10th Gen Intel Core i9/i7 CPUs support 2933/ 2800/ 2666/ 2400/ 2133 natively. Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).Maximum Memory Supported128GBChannel Supported Dual ChannelExpansion SlotsPCI Express 3.0 x16Intel 10th Gen Processors*
1 x PCIe 3.0 x16 slot (supports x16 mode)
Intel Z490 Chipset
1 x PCIe 3.0 x16 slot (supports x4 mode)
* Support PCIe bifurcation for RAID on CPU function.PCI Express x14 x PCIe 3.0 x1 slotsOther SlotsM.2 slot (Key E) (Wi-Fi module is sold separately)Storage DevicesSATA 6Gb/s 4 x SATA 6Gb/sM.2M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports SATA & PCIe 3.0 x4 mode)*
M.2_2 slot (Key M), type 2242/2260/2280 (supports SATA & PCIe 3.0 x4 mode)
* When a device in SATA mode is installed on the M.2_1 socket, SATA6G_2 port cannot be used.Intel Optane ReadyYesSATA RAID0/1/5/10Onboard AudioAudio Chipset Realtek ALC887Audio Channels 8 ChannelsOnboard LANLAN ChipsetRealtek RTL8111HMax LAN Speed10/100/1000MbpsRear Panel PortsBack I/O Ports2 x USB 3.2 Gen 2 ports (2 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Realtek RTL8111H 1Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
1 x PS/2 Keyboard/Mouse combo portInternal I/O ConnectorsOnboard USB2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports*
* The USB_E1 port, USB_E2 port, ADD_Gen2 header and the two RGB headers share the bandwidth. But the ADD_Gen2 header and the two RGB headers will affect transfer rate only when you adjust their lighting effect.Other ConnectorsFan and cooling related
1 x 4-pin CPU Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Miscellaneous
1 x AURA Addressable Gen 2 header*
2 x AURA RGB headers*
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x M.2 slot (Key E)
1 x SPI TPM header (14-1pin)
1 x 20-5pin System Panel header
1 x Thunderbolt header
* The USB_E1 port, USB_E2 port, ADD_Gen2 header and the two RGB headers share the bandwidth. But the ADD_Gen2 header and the two RGB headers will affect transfer rate only when you adjust their lighting effect.Physical SpecForm FactorATXLED LightingRGBPower Pin1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connectorFeaturesFeaturesMulti-GPU Support:
Supports AMD 2-Way CrossFireX Technology
Special Features:
ASUS 5X PROTECTION III
- ASUS DIGI+ VRM (- Digital power design with Dr. MOS)
- ASUS LANGuard
- ASUS Overvoltage Protection
- ASUS SafeSlot Core+
- ASUS Stainless-Steel Back I/O
ASUS Q-Design
- ASUS Q-DIMM
- ASUS Q-Slot
ASUS Thermal Solution
- Aluminum heatsink design
ASUS EZ DIY
- Procool
AURA Sync
- Standard RGB headers
- Addressable Gen 2 RGB header
Software Features:
ASUS Exclusive Software
Armoury Crate
- Aura Sync
AI Suite 3
- Performance And Power Saving Utility
EPU
Digi+ VRM
Fan Xpert 4
- EZ update
AI Charger
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
BIOS:
128MB Flash ROM, UEFI AMI BIOS
Manageability:
WOL by PME, PXE
Operating System:
Windows 10 - 64-bit
