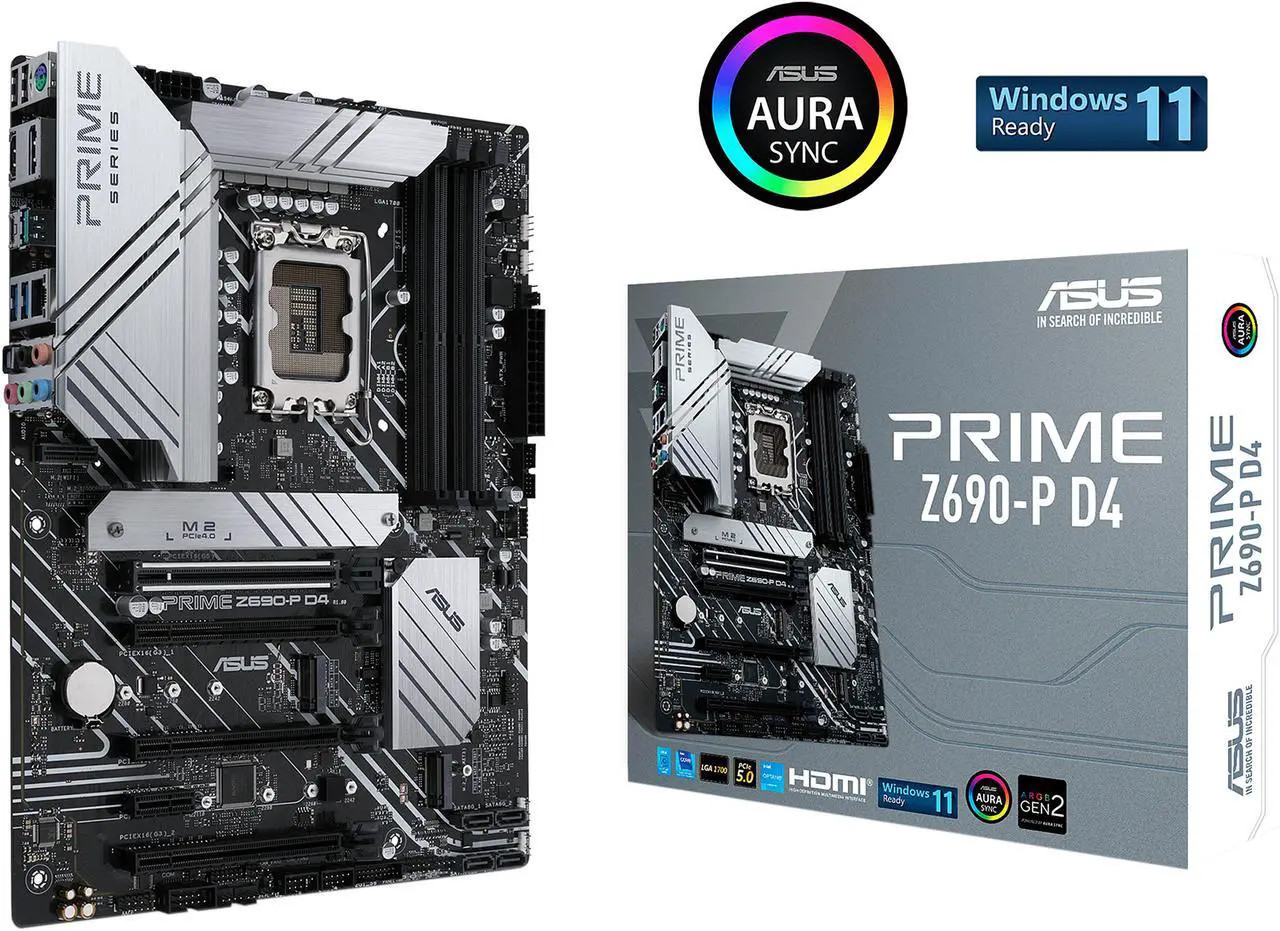

ModelBrandASUSModelPRIME Z690-P D4Part Number90MB18P0-M0AAY0Supported CPUCPU Socket Type LGA 1700
* Designed with dual mounting holes compatible with both Intel LGA1700 and LGA1200 cooling brackets.CPU TypeSupports 13th / 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors*
*May require a BIOS update to boot the 13th gen Intel® Core™ desktop processors. Visit: />* Refer to www.asus.com for CPU support list.Supported CPU TechnologiesSupports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0*
* Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.ChipsetsChipset Intel Z690Onboard VideoOnboard Video Chipset Supported only by CPU with integrated graphicMemoryNumber of Memory Slots4x288pin (DDR4)Memory StandardDDR4 5333(OC) / 5133(OC) / 5000(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).Maximum Memory Supported128GBChannel Supported Dual ChannelExpansion SlotsPCI Express 5.0 x161 x PCI Express 5.0 x16
* Actual support may vary by CPU.
* Please check PCIe bifurcation table in support site.PCI Express 4.0 x161 x PCI Express 4.0 x16
* Supports x4 mode.PCI Express 3.0 x162 x PCI Express 3.0 x16
* Support x4 mode.PCI Express x11 x PCIe 3.0 x1Other SlotsV-M.2 slot only (Key E, CNVi & PCIe)*
* Wi-Fi module and vertical M.2 Key E bracket set are purchased separately.Storage DevicesSerial ATA (SATA) 4 x SATA 6Gb/sM.2Intel 12th Gen Processors:
M.2_1 slot (Key M), type 2242/2260/2280/22110
- Intel 12th Gen processors support PCIe 4.0 x4 mode.
Intel Z690 Chipset:**
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
* Intel Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.
** Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots.Intel Optane ReadyYesSATA RAID0/1/5/10Onboard AudioAudio Channels 7.1 ChannelsOnboard LANLAN ChipsetRealtek 2.5Gb EthernetMax LAN Speed2.5GbpsRear Panel PortsBack I/O Ports1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
1 x USB 3.2 Gen 2 port (1 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x V-M.2 slot (Key E)
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
1 x PS/2 Keyboard/Mouse combo portInternal I/O ConnectorsOnboard USB1 x USB 3.2 Gen 1 connector (supports USB Type-C)
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 portsOther ConnectorsFan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Miscellaneous
3 x Addressable Gen 2 headers
1 x AURA RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x SPI TPM header (14-1pin)
1 x 20-5pin System Panel header
1 x Thunderbolt headerSoftware FeatureWindows 11ReadyPhysical SpecForm FactorATXLED LightingRGBDimensions (W x L)12.0" x 9.2"Power Pin1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connectorFeaturesFeaturesSpecial Features:
ASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
- LANGuard
- Overvoltage Protection
- SafeSlot
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-Slot
ASUS Thermal Solution
- Flexible M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- ProCool
AURA Sync
- AURA RGB headers
- Addressable Gen 2 headers
Software Features:
ASUS Exclusive Software
Armoury Crate
- AURA Sync
- Fan Xpert 4
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
ASUS CPU-Z
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
BIOS:
192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Manageability:
WOL by PME, PXE
Operating System:
Windows 11 64-bit, Windows 10 64-bitPackagingPackage ContentsAccessories:
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x M.2 Rubber Package
2 x M.2 SSD screw packages
Installation Media
1 x Support DVD
Documentation
1 x User guideOn May 28, 2025 at 21:45:28 PDT, seller added the following information: On Oct 10, 2025 at 21:47:20 PDT, seller added the following information:
