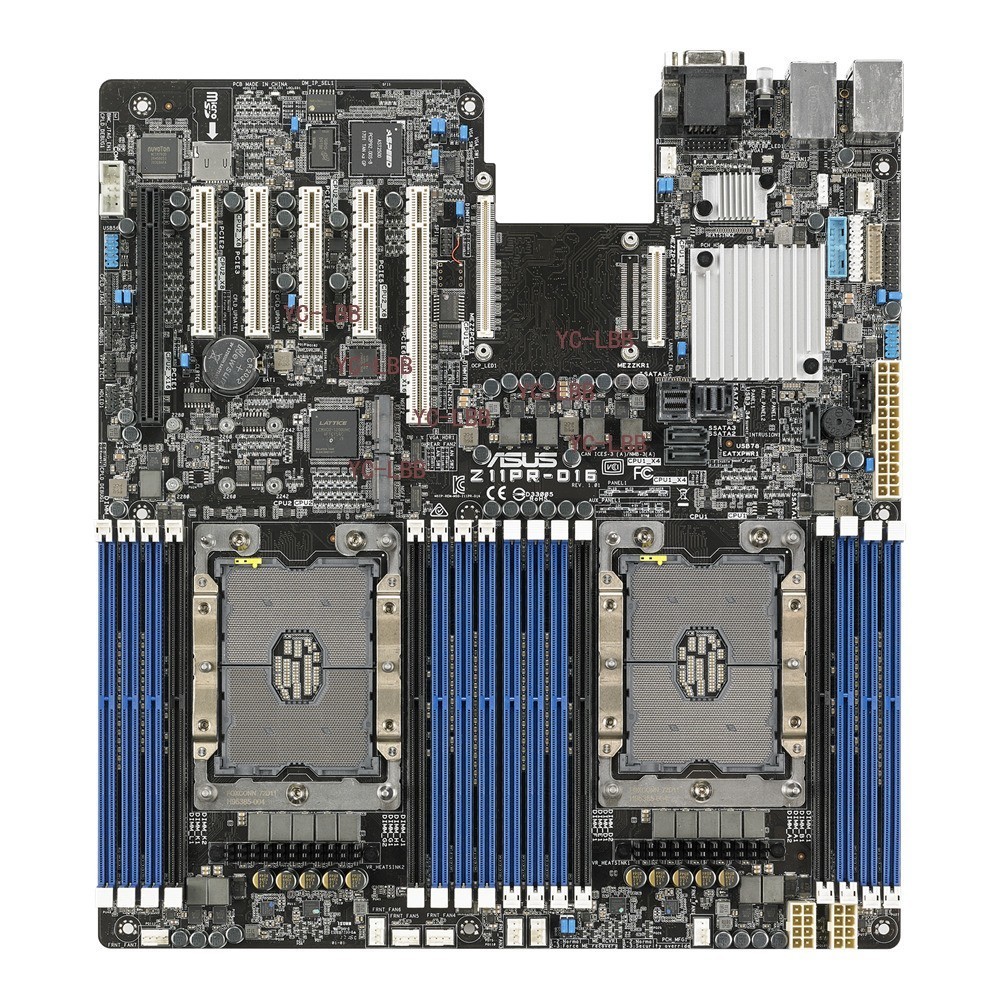

ASUS Z11PR-D16 LGA 3647 INLEL XEON C621 PCH DDR4 2933 SSI EEB mainboard
Processor / System Bus
2 x Socket P (LGA 3647)
1st and 2nd Gen Xeon® Scalable Processor Family
*Refer to support page for more information
UPI (10.4 GT/s)
Core Logic
Intel® C621 PCH
Memory
Total Slots : 16 (6-channel per CPU, 8 DIMM per CPU)
Capacity : Maximum up to 512GB RDIMM/Maximum up to 1024GB LRDIMM/Maximum up to 2048GB LR-DIMM 3DS
Memory Type :
DDR4 2933/2666/2400 RDIMM
DDR4 2933/2666/2400 LRDIMM
DDR4 2933/2666/2400 LR-DIMM 3DS
Memory Size :
32GB, 16GB, 8GB, 4GB RDIMM
64GB, 32GB LRDIMM
128GB, 64GB LR-DIMM 3DS
* Refer to support page for more information
* Actual memory frequency differs from Intel CPU types and memory module.
Please check Intel official site for more detail about the memory types supported by each CPU.
*2933MHz will drop to 2666MHz when using 2DPC configurations.
Expansion Slots
Slot Location 1 : PCI-E x16 (Gen3 X16 Link)
Slot Location 2 : PCI-E x8 (Gen3 X8 Link)
Slot Location 3 : PCI-E x8 (Gen3 X8 Link)
Slot Location 4 : PCI-E x8 (Gen3 X8 Link)
Slot Location 5 : PCI-E x8 (Gen3 X8 Link)
Slot Location 6 : PCI-E x16 (Gen3 X16 Link)
Additional Slot 1 : OCP 2.0 module support (X16 Gen3 Link))
Form Factor
SSI EEB, 12” x 13”
ASUS Features
ASUS Fan Speed control technology
ASUS Control Center
Rack Optimized (Dedicated for Rack)
Storage
SATA Controller :
Intel® C621
11 x SATA3 6Gb/s ports (8 by 2 Mini-SAS Connector)
2 x M.2 connector (2280/2260/2242) (SATA 6Gb/s & PCIe® Gen3 x4 link)
Intel® Rapid Storage Technology Enterprise(RSTe) (For Linux/Windows)
(Support Software RAID 0, 1, 5, 10 )
Intel®VROC (For Linux/Windows)
(Support Software RAID )
Optional kits Controller :
ASUS PIKE II 3008-8i 8-port SAS 12G RAID card
ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card
Networking
1 x Dual Port Intel I350-AM2 Gigabit LAN controller + 1 x Mgmt LAN
Graphic
Aspeed AST2500 with 64MB VRAM
