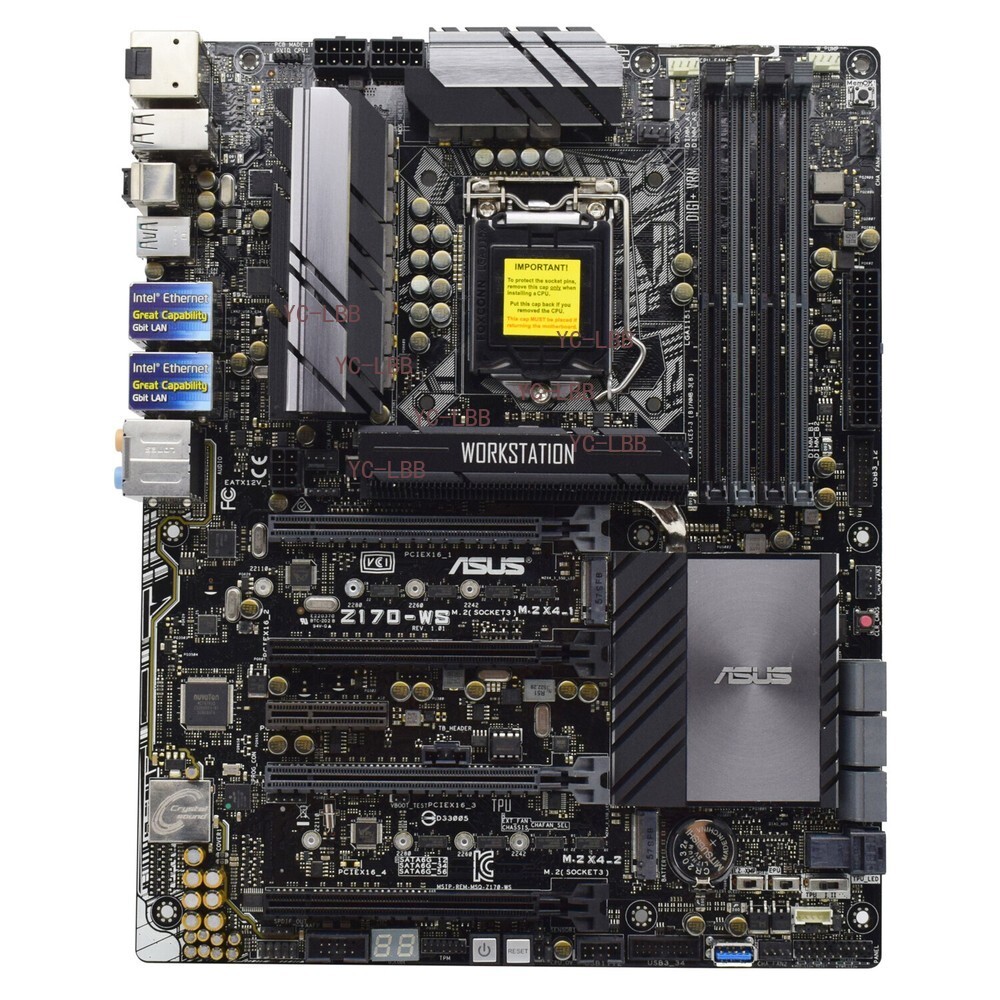

ASUS Z170-WS Motherboard ATX Intel Z170 LGA1151 DDR4 SATA3 HDMI SPDIF M.2 DP+I/O
Note: If the product is damaged in transportation or has quality problems and needs to be returned, the freight shall be borne by the seller. If the product is damaged by the buyer, the buyer will bear the expenses incurred when it needs to be returned or replaced.
Compatible Model:
ASUS Z170-WS
Features: - Original quality not include retail box or parts. - 100% tested working before shipping. - Without CMOS battery for safe sending. - Please check and confirm the model of your device before purchase. - We provide 90 days warranty, the buyer pays the postage of the returned package. CPU Support for Intel ® Socket 1151 6th generation 7th generation/6th generation Core ™ I7/Core ™ I5/Core ™ I3/Pentium ®/ celeron ® processor Support for Intel ® 14 nm processor Support for Intel ® Turbo Boost 2.0 technology *Please visit www.asus.com for the processor support list. *Whether Intel is supported ® Turbo Boost 2.0 technology support varies according to processor type.
Chipset Support for Intel ® Z170
Memory 4 x DIMMs, capacity up to 64GB, DDR4 3733 (overclocking)/3600 (overclocking)/3466 (overclocking)/3400 (overclocking)/3333 (overclocking)/3300 (overclocking)/3200 (overclocking)/3000 (overclocking)/2800 (overclocking)/2666 (overclocking)/2400 (overclocking)/2133 MHz Non-ECC, Un-buffered memory Dual channel memory architecture Intel support ® Extreme Memory Profile (XMP) technology *The support function for Hyper DIMMs depends on the physical characteristics of the CPU. *Please visit www.asus.com or refer to the user manual for the memory qualified vendor support list (QVL).
Graphic display Support for Intel ® HD integrated graphics card Support display output: HDMI/DisplayPort interface -HDMI support: display resolution up to 4096 x 2160 @ 60 Hz/4096 x 2160 @ 24 Hz * 1 -Support for DisplayPort: display resolution up to 4096 x 2304 @ 24 Hz/4096 x 2304 @ 60 Hz Shared video memory up to 512 MB Intel support ® InTru ™ 3D, Quick Sync Video, Clear Video HD technology, Insider ™ Support up to 2 independent displays DP 1.2 is compatible with streaming media, supports 3 DP 1.2 monitors, daisy chain display
Multigraphics display technology Support NVIDIA ® Quad-GPU SLI ™ technology Support NVIDIA ® 4-way SLI ™ technology AMD support ® Quad-GPU CrossFireX ™ technology Support AMD 4-way CrossFireX technology
Expansion slot 4 x PCIe 3.0/2.0 x16 expansion card slots (single at x16, dual at x16/x16 mode, triple at x16/x8/x8 mode or quad x8/x8/x8 mode) 1 x PCIe 3.0 x4 (maximum x4 mode) * 3
Storage function (depending on shipment) Intel ® Z170 chipset: 6 x SATA 6Gb/s interface, gray, 2 x M.2 x4 Socket 3, M.2 Socket 3 with M key, supporting 2242/2260/2280/2210 storage devices (SATA and PCIE modes) * 4 1 x U.2 connector, *5 Support Raid 0, 1, 5, 10 Intel ® Fast storage technology
Network function Intel ® I219-LM, 1 x Gigabit network card Intel ® I210-AT, 1 x Gigabit network card Intel ® Gigabit network card - 802.3az energy-saving Ethernet device ASUS Turbo LAN network acceleration
Sound effect Realtek ® ALC1150 8-channel high-definition audio codec featuring Crystal Sound 3 -Support: audio interface detection, Multi-Streaming technology, front panel microphone audio connection port conversion -High quality 112 dB stereo playback output (back line-out) and 104 dB SNR recording input (line-in)
Audio function: -The rear panel has optical fiber S/PDIF digital output connection port - DTS Connect - DTS Studio Sound -Blu-ray disc audio content protection -Audio shielding technology: high-precision analog/digital separation without interference -Audio amplifier: restore high-quality sound from headphones and speakers -High quality Japanese audio capacitor: let you enjoy clear and high fidelity sound effect. -Convey the moving of the shocking beautiful voice -24-bit 192KHz Blu-ray sound effect The left and right channels are wired independently, and both sides can output the same quality sound effect.
USB interface Intel ® Z170 chipset: 5 x USB 3.0/2.0 connection ports (4 in the center of the main board, 1 vertical type A connector) Intel ® Z170 chipset: 6 x USB 2.0/1.1 connection ports (4 in the rear panel, black, 2 in the center of the main board) ASMedia ® USB 3.0 Hub : 4 x USB 3.0/2.0 connection ports (4 on the rear panel, blue) ASMedia ® USB 3.1 controller: 1 x USB 3.1/3.0/2.0 connection port (1 on the rear panel, blue-green, Type-A interface) ASMedia ® USB 3.1 controller: 1 x USB 3.1/3.0/2.0 connection port (1 on the rear panel, USB Type-CTM interface, Type-A+USB Type-CTM, Intel Thunderbolt 3 support, on the rear panel)
Workstation characteristics 4 x PCIe x 16 slots 12K hours Capacitors ProCool Power Connector Q-Code Logger
Operating system support Windows ® 10 , 64bit Windows ® 8.1 , 64bit Windows ® seven
Backplane I/O interface 1 x DisplayPort interface 1 x HDMI connector 2 x LAN (RJ45) interface 4 x USB 3.1 Gen 1 connector (blue) 4 x USB 2.0 interface 1 x optical fiber S/PDIF digital audio output interface 1 x USB 3.1 Gen 2 (blue-green) Type-A connector 1 x USB 3.1 Gen 2 USB Type-CTM interface 1 x USB BIOS FlashBack ™ Button 1 x Q-Code Logger button 1 x 8-channel audio connector
Internal I/O interface 2 x USB 3.0 interfaces expandable 4 sets of external USB 3.0 interfaces (19-pin) 1 x AAFP front audio connector 1 x USB 2.0 interface expandable 2 sets of external USB 2.0 interfaces 2 x M.2 slot 3 with M key, supporting type 2242/2260/2280/2210 storage device (supporting SATA&PCIE SSD) 6 x SATA 6Gb/s device connection socket 1 x CPU fan power slot (1 x 4 - pin, 4 - pin) 4 x chassis fan interface (1 x 4 - pin, 4 - pin) 1 x CPU optional fan interface (1 x 4 - pin, 4 - pin) 1 x S/PDIF_ Out digital audio connection pin 1 x Thunderbolt pin arrangement 1 x system panel interface (Q-connector) 1 x MemOK! Button 1 x 24-pin EATX 12 V power interface 1 x 6-pin EATX 12 V_ 1 Power interface 2 x 8-pin ATX power port 1 x TPU switch 1 x EZ XMP switch 1 x EPU switch 1 x DRCT needle arrangement 1 x power on switch 1 x 5-pin EXT_ Fan slot 1 x Clear CMOS button 1 x water pump special interface (4-pin) 1 x 14-1 pin TPM interface 1 x vertical type A USB 3.1 Gen 1 connector 1 x U.2 connector
BIOS 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 5.0, multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 setup wizard, F6 Qfan control, F3 favorites, shortcut notes, history, F12 screenshot, F3 shortcut keys, and ASUS DRAM SPD (Serial Presence Detect) memory information
Management software WfM 2.0, DMI 3.0, WOL by PME, PXE
Dimensions ATX type 12 inches x 9.6 inches (30.5 cm x 24.4 cm)
