please make sure this item is the correct one your wanted before purshasing.

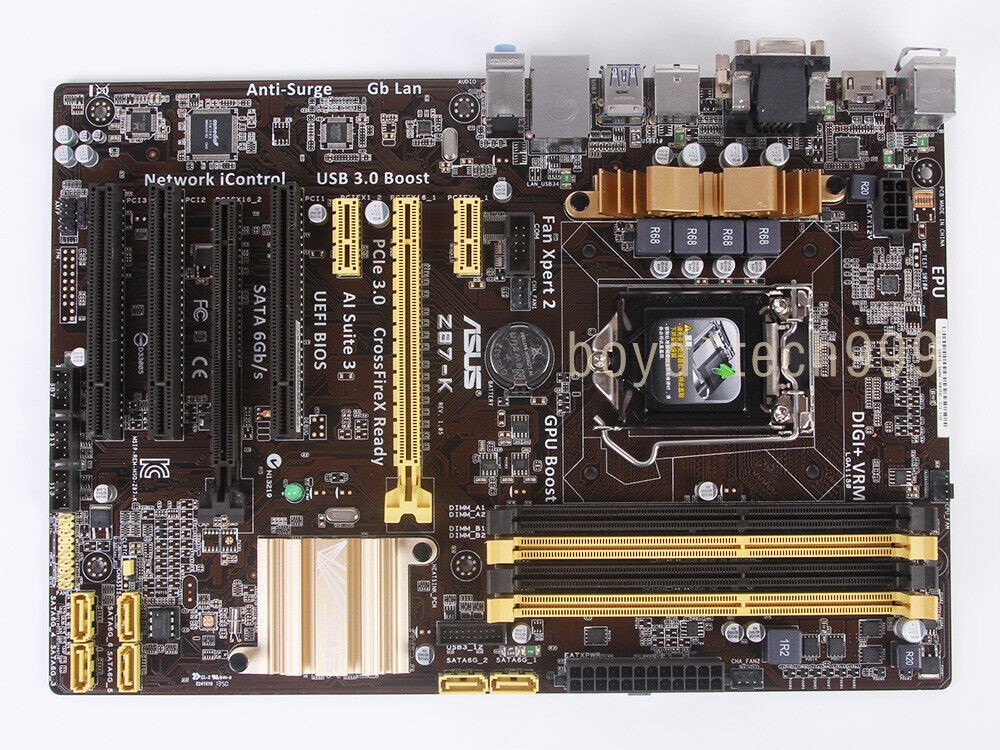

Motherboard Description:

CPU

Intel® Socket 1150 for 4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 22 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to ASUS official website for CPU support list

Chipset

IIntel® Z87

Memory

4 x DIMM, Max. 32GB, DDR3 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to ASUS official website for the Memory QVL (Qualified Vendors Lists).

Graphic

Integrated Graphics Processor
Multi-VGA output support : HDMI/DVI/RGB ports
- Supports HDMI with max. resolution 4096 x 2160 at 24 Hz / 2560 x 1600 at 60 Hz
- Supports DVI with max. resolution 1920 x 1200 at 60 Hz
- Supports RGB with max. resolution 1920 x 1200 at 60 Hz
Maximum shared memory of 1024 MB
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Supports up to 3 displays simultaneously

Multi-GPU Support

Supports AMD Quad-GPU CrossFireX™ Technology

Expansion Slots

1 x PCIe 3.0/2.0 x16 (x16 mode, yellow)
1 x PCIe 2.0 x16 (x4 mode, dark brown)
2 x PCIe 2.0 x1
3 x PCI

Storage

Intel® Z87 chipset :
6 x SATA 6Gb/s port(s), yellow,
Support Raid 0, 1, 5, 10
Supports Intel® Dynamic Storage Accelerator, Intel® Smart Response Technology, Intel® Rapid Start Technology, Intel® Smart Connect Technology*1

LAN

Realtek® 8111GR, 1 x Gigabit LAN Controller(s)

Audio

Realtek® ALC887 8-Channel High Definition Audio CODEC *2
- Supports : Jack-detection, Front Panel Jack-retasking

USB Ports

Intel® Z87 chipset :
4 x USB 3.1 Gen 1 port(s) (2 at back panel, blue, 2 at mid-board)
Intel® Z87 chipset :
10 x USB 2.0 port(s) (4 at back panel, black, 6 at mid-board)

Special Features

ASUS 5X Protection :
- ASUS DIGI+ VRM - Phase digital power design
- ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention
- ASUS ESD Guards - Enhanced ESD protection
- ASUS High-Quality 5K-Hour Solid Capacitors - 2.5x long lifespan with excellent durability
- ASUS Stainless Steel Back I/O - 3x more durable corrosion-resistant coating
ASUS EPU :
- EPU
ASUS Exclusive Features :
- TurboV EVO
- GPU Boost
- AI Suite 3
- Ai Charger
- Anti-Surge
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- Network iControl
- USB 3.0 Boost
- Disk Unlocker
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution & MOS Heatsink
- ASUS Fan Xpert 2
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
ASUS Q-Design :
- ASUS Q-Slot

Operating System Support

Windows® 8.1
Windows® 8
Windows® 7

Back I/O Ports

1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 1
4 x USB 2.0
3 x Audio jack(s)

Internal I/O Ports

1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
1 x COM port(s) connector(s)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
2 x Chassis Fan connector(s) (2 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s)

BIOS

WfM 2.0, DMI 2.0, WOL by PME, PXE

Form Factor

ATX Form Factor
12 inch x 8.2 inch ( 30.5 cm x 20.8 cm )

Note

*1: These functions will work depending on the CPU installed.
*2: Use a chassis with HD audio module in the front panel to support an 8-channel audio output

Instructions:

• Please DO NOT use fake memory, because the motherboard maybe can't support.

• Please DO NOT use single-side memory, because some motherboards can't support.

• Some CPUs can't be supported by motherboard, please try to update the BIOS, please note that's not motherboard's defect.


• Some "Can't boot" problem's caused by memory, please clean the memory's gold fingers and clean the motherboard's memory solts.


Package Included:

• 1 * motherboard

• 2 * sata cable

• 1 x I/O back panel

Payment

PayPal is the only online payment method we accept. Please make sure you have a valid/confirmed PayPal account prior offerding. And please make sure that your PayPal registed address is the same with your registed address.

Shipping:

Shipping Method

Shipping Destination &Shippint Time

Epacket United States 8-20 working days Standard Austrilia, Canada,European Union,Europe,Asia 12-25 working days
Standard Qther country 12-35 working days Expedited
USA,Austrilia, Canada,European Union,Europe,Asia, 3-5 working days
Expedited Qther country 3-7 working days

Customs Declaration:

• Choose Expedited shipping, may produce be extra costs（duties taxes）These charges are the buyer’s responsibility. Please check with your country’s customs office to determine what these additional costs will be prior to offerding/buying shipping fee except.

• We can not mark Motherboard as "gift", since Your Country customs and international customs regulations prohibit such behavior, thank you for your understanding

• Order can not be shipping to any P.O boxes. Order can only be shipped to Details address.


Customer Service:

• All items are sold with 60 days warranty unless otherwise stated in the sale.

• Refund or replacement requirements apply only to the date of the request within 60 days. if the product is defective or not as described we will replace the product or refund.

• Please do not return any items without an authorization number or other instructions by us. Any packages that are send without our knowledge will be refused and no replacements will be issued.

• We pride ourselves in offering very high level of customer service and strive to be the best marketplace seller online.

• Please contact us before leaving any negative or neutral response, so we can help you solve any problem whether pre-sale or after sale.

• If there are any queries please do not hesitate to contact us via ’s messaging service, we will get back to ALL messages within 24 hours Monday-Friday.
