BRAND NEW

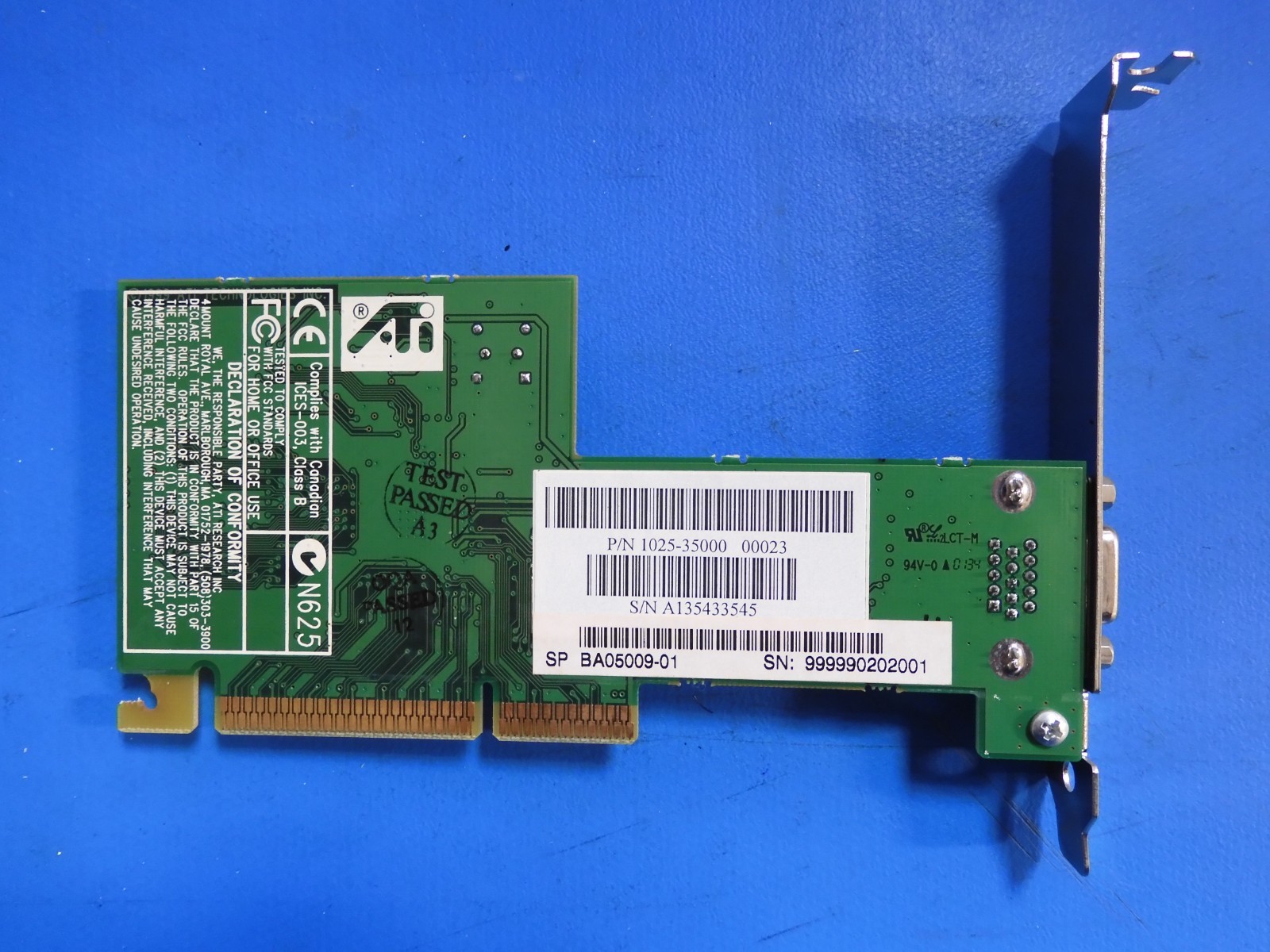

ATI Technologies 1025-35000 Rage XL AGP Graphics Card 8MB – Legacy Vintage GPU

Item: ATI Technologies Rage XL AGP Graphics CardModel Number: 1025-35000Memory: 8MBInterface: AGPCondition: Tested and working (adjust if needed)

This ATI Rage XL AGP graphics card is a reliable legacy video solution ideal for older PCs, servers, and retro computing builds. Known for its stability and broad compatibility, the Rage XL series is commonly used in vintage systems, industrial machines, and server environments that require basic display output.

The card has been inspected and is in good working condition. Ports and connectors are clean, and the PCB shows no signs of damage. Perfect for collectors, restorers, or anyone maintaining legacy hardware.

• ATI Rage XL GPU

• AGP interface

• 8MB video memory

• Ideal for retro PCs, servers, and legacy hardware

• Compact, low‑power design

• Supports standard VGA with many late‑1990s to early‑2000s systems that support AGP graphics cards. Great for restoring OEM machines from Dell, HP, Compaq, IBM, and others.







  ATI Technologies Rage XL AGP Graphics Card — Full Technical Specification Sheet

  Model: 1025-35000GPU: ATI Rage XLMemory: 8MB SDRAMInterface: AGPCategory: Legacy / Vintage Graphics Adapter

  1. General Overview

  The ATI Rage XL AGP graphics card is a compact, low‑power legacy GPU commonly used in late‑1990s to early‑2000s desktop PCs, servers, and industrial systems. Known for its reliability and broad compatibility, it provides stable 2D graphics performance suitable for basic display output, BIOS access, and lightweight GUI environments.

  2. Technical SpecificationsGPU / Chipset

  • Chipset/GPU Model: ATI Rage XL

  • Architecture: 64-bit graphics engine

  • Core Clock: ~100 MHz (varies slightly by OEM)

  • Pixel Pipeline: 1

  • API Support:

    • DirectX 6

    • OpenGL (basic role="list">

    • Memory Size: 8 MB

    • Memory Type: SDRAM

    • Memory Bus Width: 64-bit

    • Effective Bandwidth: ~528 MB/s (typical for Rage XL class)

    Interface

    • Slot Type: AGP (Accelerated Graphics Port)

    • AGP Version: AGP 2X (compatible with AGP 1X/2X systems)

    • Bus Voltage: 3.3V signaling

    Display Output

    • Connector: VGA (DE‑15 / HD‑15)

    • Maximum Resolution:

      • Up to 1600 × 1200 @ 75Hz (varies by Color Depth:

        • 8‑bit, 16‑bit, 24‑bit, 32‑bit color modes

      Physical Characteristics

      • Form Factor: Low‑profile PCB (varies slightly by OEM)

      • Cooling: Passive heatsink or no heatsink (chip runs cool)

      • Typical Dimensions: ~4.5–5.5 in length (varies by manufacturer)

      • Weight: Lightweight (usually under 100g)

      Power Requirements

      • Power Consumption: Extremely low (typically under 5W)

      • External Power: Not required

      • Cooling Needs: None beyond ambient airflow

      3. Compatibility

      • Operating Systems:

        • Windows 95 / 98 / ME

        • Windows NT / 2000 / XP

        • Linux (basic framebuffer + X11 Types:

          • Legacy desktops

          • Servers (Dell, HP, Compaq, IBM, etc.)

          • Industrial machines

          • Retro PC builds

        4. Typical Use Cases

        • BIOS/POST display

        • Basic GUI environments

        • Legacy OS installations

        • Server console output

        • Retro computing builds

        • Industrial control systems requiring VGA output

        5. Model Identification

        • Manufacturer: ATI Technologies

        • Model Number: 1025-35000

        • Part Type: AGP Graphics Adapter

        • Unit Type: Unit

        6. Notes

        • This GPU is not designed for modern gaming or 3D acceleration.

        • Ideal for legacy hardware restoration and server video output.

        • Ensure your motherboard supports AGP 1X/2X (3.3V) before installation.
