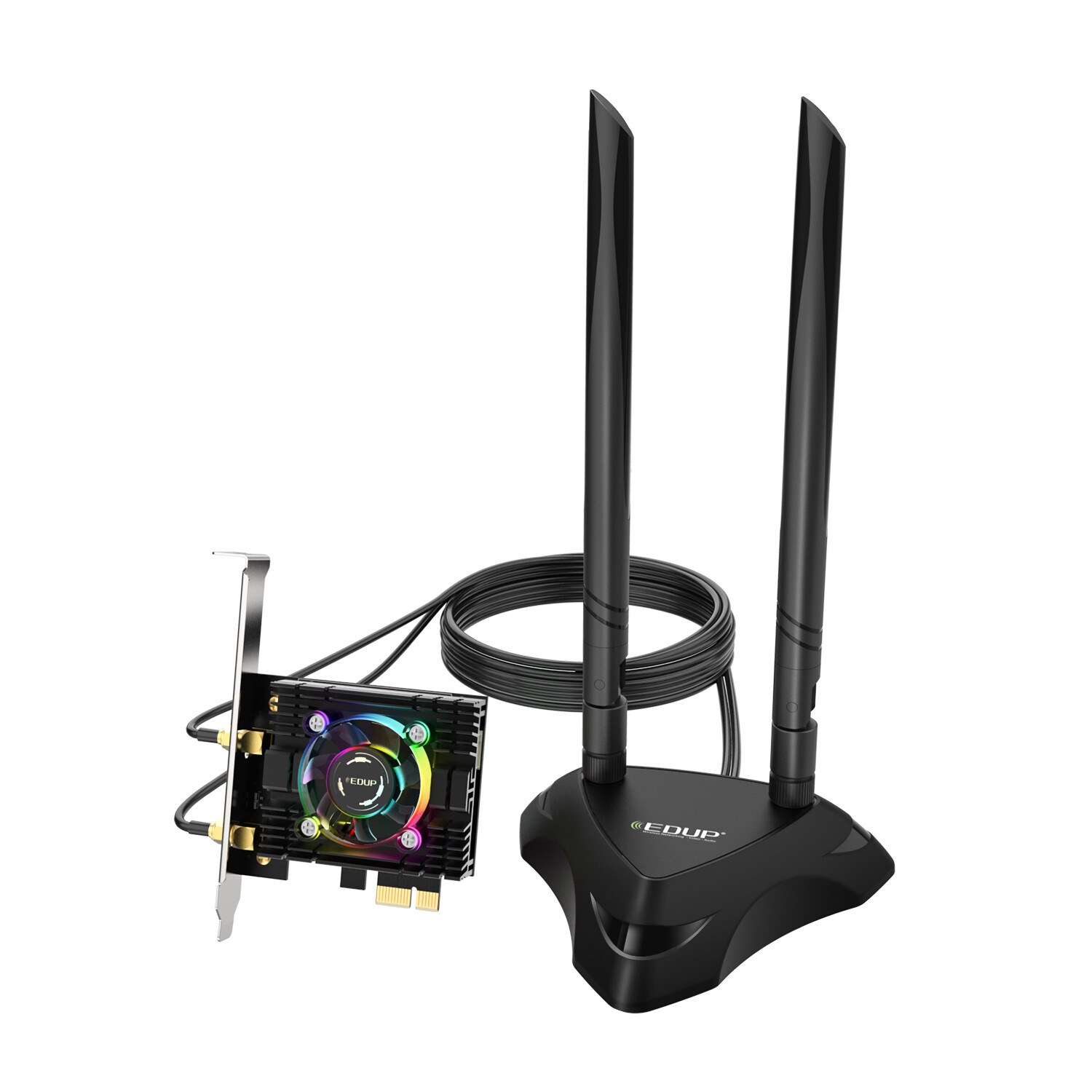

EP-9636FS Pro is a highly integrated and cost-effective Wireless Adapter that provides PCI Express interface, it uses Intel Wi-Fi 6 AX200 module, provide Gigabit wireless speed and dramatically improve your connected experience at home or work.Note::

• Not for HP/ IBM/ Lenovo computer

Packing List (retailpack):

• 1 x Wireless card
• 1 x Low profile Bracket
• 1 x USB BT cable
• 2 x 6DBi antenna

Features:

• Complies with IEEE 802.11a/b/g/n/ac/ax WiFi and BT5.1 (WiFi: PCI-E, BT: USB)
• Supports PCI-E-X1/ X4/ X8/ X16
• 2.4G/5G dual frequency optional, 5GHz band rate up to 2400Mbps, 2.4GHz band rate up to 574Mbps
• Supports Cisco CCX
• Supports multiple BSSID
• The router need to support AX and use 160Mhz channel, then the speed can reach to 2400Mbps
• Breathing LED fan

Specifications:

• Model: EP-9636
• Chipset: Intel AX200
• Standards: IEEE 802.11a/b/g/n/ac WiFi and BT 5.0 +HS (WiFi: PCI-E, BT: USB)
• PCI Bus: PCI-E-X1/X4/X8/X16
• Frequency Range: WiFi: 2.4GHz, 5.8GHz, BT: 2402MHz to 2483MHz
• Antenna: 2 x 5dBi
• Transmission Rate: 2.4G up to 574Mbps, 5.8G up to 2400Mbps
• Operating System: Microsoft Windows 10, Linux, Chrome OS
• Radio ON/OFF Control: Supported
• Connector Interface: PCIe, USB
• Operating Temperature (Adapter Shield): 0°C to +80°C
• Humidity Non-Operating: 50% to 90% RH non-condensing (at temperatures of 25°C to 35°C)
• Wi-Fi Alliance8: Wi-Fi CERTIFIED a, b, g, n, ac with wave 2 features, WMM, WMM-Power Save, WPA, WPA2, WPS, PMF, Wi-Fi Direct, Wi-Fi Miracast , Wi-Fi Agile Multiband, Wi-Fi Optimized Connectivity, Wi-Fi Location, Passpoint, Wi-Fi Aware, and Wi- Fi TimeSync
• IEEE WLAN Standard: IEEE 802.11-2016 and select amendments (selected feature coverage), IEEE 802.11a, b, g, n, ac, ax, d, e, h, i, k, r, u, v, w, ai; Fine Timing Measurement based on 802.11-2016
• BT: BT 5.0
• Security Methods: WPA and WPA2 Personal and Enterprise; WPA3 (pending OS support)
