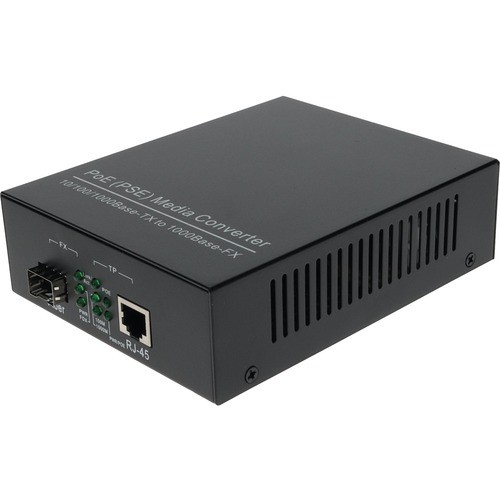

AddOn 10/100/1000Base-TX(RJ-45) to Open SFP Port POE+ Media Converter - Network (RJ-45) - 1x PoE+ (RJ-45) Ports - Multi-mode, Single-mode - Gigabit Ethernet - 10/100/1000Base-TX, 1000Base-SX/LX/BX - 1 Gbit/s - 1 x Expansion Slots - 1 x SFP Slots - AC
This is a media converter that converts a 10/100/1000Base-TX(RJ-45) to 1000Base-X via an open SFP port connector. The open SFP port allows users to customize between the SX, LX, or BX connections. This media converter provides a cost effective conversion from 10/100/1000Base-TX(RJ-45) to 1000Base-X, while extending the network reach beyond the 100m reach limitation of copper. This AC/DC powered PoE+ media converter is a Power Sourcing Equipment (PSE), which combines data transferred over a fiber optic link with 48V (or other voltage) power supply, 30 watts max, providing power to IEEE802.3at powered device (PD) over CAT5 and up UTP cable (cable length up to 100 meters / 330 feet). It complies with the IEEE802.3at standard. The converter includes a single port PSE controller, which offers PD signature sensing and power monitoring features. Other features include over-current protection and LFP function. The LFP (Link Fault Pass-through) allows the media converter to monitor both the fiber and copper RX port for loss of signal. In case of a loss of RX signal on one media port, the converter will automatically disable the TX signal to the other media port, thus passing through the link fault. Our media converters and network interface cards are 100% compliant for all of our networking needs. Now you have a cost effective solution to your network upgrade needs.
ManufacturerAddOn Manufacturer Part NumberADD-GMC-SFP-POE+ Brand NameAddOn Product Name10/100/1000Base-TX(RJ-45) to Open SFP Port POE+ Media Converter Packaged Quantity1 Product TypeTransceiver/Media Converter Interfaces/Ports Total Number of Ports2 Network (RJ-45)Yes DVINo USBNo Management PortNo Number of PoE+ (RJ-45) Ports1 PoE Port TypePSE Media & Performance Media Type SupportedOptical Fiber,Twisted Pair Fiber Mode SupportedMulti-mode,Single-mode Maximum Data Transfer Rate1 Gbit/s I/O Expansions Total Number of Expansion Slots1 Expansion Slot TypeSFP Number of SFP Slots1 Network & Communication Ethernet TechnologyGigabit Ethernet Network Power Description Power SourceAC Input Voltage120 V AC Power Consumption30 W Physical Characteristics Height5.5" Width4.5" Depth1.8" Weight (Approximate)6 lb Miscellaneous Application/UsageNetwork Additional Information Management Type: Unmanaged IEEE Standard: 802.3at Compatibility Compatible OEM: Industry Standard Certifications & Standards802.3at Country of OriginChina TAA CompliantNo Warranty Limited Warranty3 Year WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
