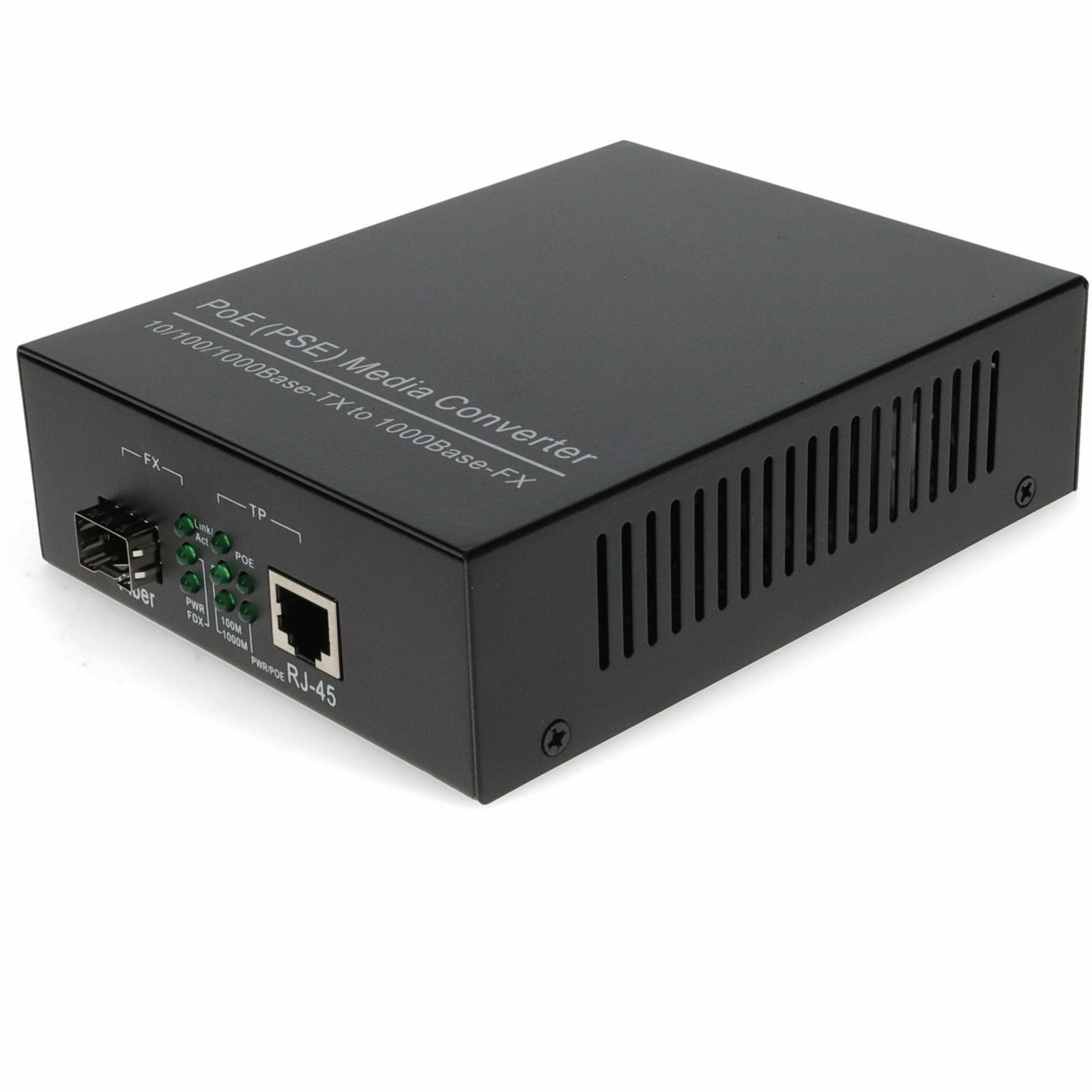

AddOn 10/100/1000Base-TX[RJ-45] to Open SFP Port POE+ Media Converter (add-gmc-sfp-poe-) AddOn 10/100/1000Base-TX[RJ-45] to Open SFP Port POE+ Media Converter (add-gmc-sfp-poe-)

International Customers: All electronic products are packaged for sale in the US with US voltage.

Certifications & Standards: 802.3at

TAA Compliant: No

Additional Information: Management Type: Unmanaged IEEE Standard: 802.3at

Application/Usage: Network

Compatibility: Compatible OEM: Industry Standard

Country of Origin: China

Product Description

This item is brand-new, factory sealed.

This is a media converter that converts a 10/100/1000Base-TX(RJ-45) to 1000Base-X via an open SFP port connector. The open SFP port allows users to customize between the SX, LX, or BX connections. This media converter provides a cost effective conversion from 10/100/1000Base-TX(RJ-45) to 1000Base-X, while extending the network reach beyond the 100m reach limitation of copper. This AC/DC powered PoE+ media converter is a Power Sourcing Equipment (PSE), which combines data transferred over a fiber optic link with 48V (or other voltage) power supply, 30 watts max, providing power to IEEE802.3at powered device (PD) over CAT5 and up UTP cable (cable length up to 100 meters / 330 feet). It complies with the IEEE802.3at standard. The converter includes a single port PSE controller, which offers PD signature sensing and power monitoring features. Other features include over-current protection and LFP function. The LFP (Link Fault Pass-through) allows the media converter to monitor both the fiber and copper RX port for loss of signal. In case of a loss of RX signal on one media port, the converter will automatically disable the TX signal to the other media port, thus passing through the link fault. Our media converters and network interface cards are 100% compliant for all of our networking needs. Now you have a cost effective solution to your network upgrade needs. SpecificationPower DescriptionPower SourceACInput Voltage120 V ACPower Consumption30 WPhysical CharacteristicsWeight (Approximate)6 Warranty3 YearInterfaces/PortsNetwork (RJ-45)YesTotal Number of Ports2USBNoDVINoManagement PortNoPoE Port TypePSENumber of PoE+ (RJ-45) Ports1I/O ExpansionsTotal Number of Expansion Slots1Number of SFP Slots1Expansion Slot TypeSFPGeneral InformationBrand NameAddOnMarketing InformationThis is a media converter that converts a 10/100/1000Base-TX(RJ-45) to 1000Base-X via an open SFP port connector. The open SFP port allows users to customize between the SX, LX, or BX connections. This media converter provides a cost effective conversion from 10/100/1000Base-TX(RJ-45) to 1000Base-X, while extending the network reach beyond the 100m reach limitation of copper. This AC/DC powered PoE+ media converter is a Power Sourcing Equipment (PSE), which combines data transferred over a fiber optic link with 48V (or other voltage) power supply, 30 watts max, providing power to IEEE802.3at powered device (PD) over CAT5 and up UTP cable (cable length up to 100 meters / 330 feet). It complies with the IEEE802.3at standard. The converter includes a single port PSE controller, which offers PD signature sensing and power monitoring features. Other features include over-current protection and LFP function. The LFP (Link Fault Pass-through) allows the media converter to monitor both the fiber and copper RX port for loss of signal. In case of a loss of RX signal on one media port, the converter will automatically disable the TX signal to the other media port, thus passing through the link fault. Our media converters and network interface cards are 100% compliant for all of our networking needs. Now you have a cost effective solution to your network upgrade needs.Product TypeTransceiver/Media ConverterProduct Name10/100/1000Base-TX(RJ-45) to Open SFP Port POE+ Media ConverterManufacturerAddOnManufacturer Part NumberADD-GMC-SFP-POE+Packaged Quantity1Media & PerformanceMaximum Data Transfer Rate1 Gbit/sMedia Type Supported

• Optical Fiber
• Twisted Pair

Fiber Mode Supported
