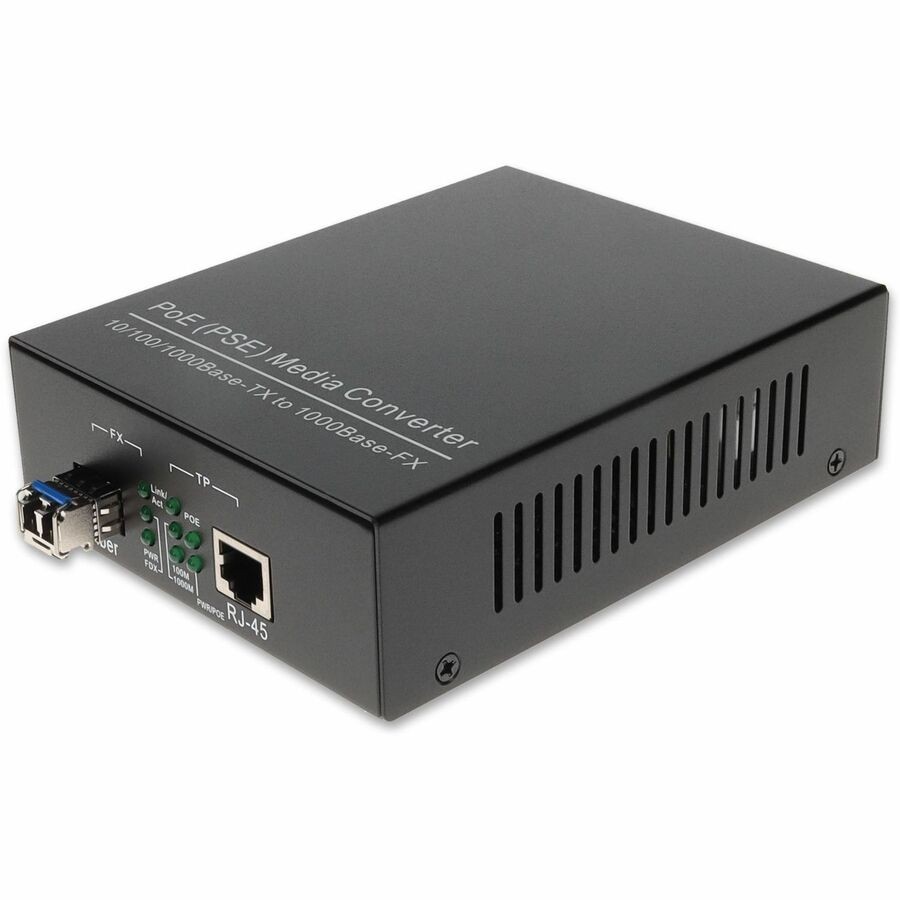

AddOn 10/100/1000Base-TXRJ-45 to 1000Base-LXLC SMF 1310nm 10km POE Media Converter Brand: AddOn UPC: 0195285539380 Mfr Part #: ADDGMCLXLCPOE

General InformationThis is a media converter that converts a 10/100/1000Base-TX(RJ-45) to 1000Base-LX via an LC connector. The open SFP port also allows users to customize between the SX, LX, or BX connections. This media converter provides a cost effective conversion from 10/100/1000Base-TX(RJ-45) to 1000Base-X, while extending the network reach beyond the 100m reach limitation of copper. This AC/DC powered PoE media converter is a Power Sourcing Equipment (PSE), which combines data transferred over a fiber optic link with 48V (or other voltage) power supply, providing power to IEEE802.3af powered device (PD) over CAT5 and up UTP cable (cable length up to 100 meters / 330 feet). It complies with the IEEE802.3af standard. The converter includes a single port PSE controller, which offers PD signature sensing and power monitoring features. Other features include over-current protection and LFP function. The LFP (Link Fault Pass-through) allows the media converter to monitor both the fiber and copper RX port for loss of signal. In case of a loss of RX signal on one media port, the converter will automatically disable the TX signal to the other media port, thus passing through the link fault. Our media converters and network interface cards are 100% compliant for all of our networking needs. Now you have a cost effective solution to your network upgrade needs.

Media & PerformanceMedia Type Supported:Twisted PairMedia Type Supported:Optical FiberFiber Mode Supported:Multi-modeFiber Mode Supported:Single-modeFiber Optic Cable Wavelength:1310 nmMaximum Data Transfer Rate:1 Gbit/sMaximum Distance Supported:10 km

I/O ExpansionsTotal Number of Expansion Slots:1Expansion Slot Type:SFPNumber of SFP Slots:1

Network & CommunicationEthernet Technology:Gigabit EthernetNetwork Technology:10/100/1000Base-TXNetwork Technology:1000Base-LXNetwork Technology:1000Base-X

Power DescriptionPower Source:ACInput Voltage:120 V ACPower Consumption:25 W

Physical (Approximate):8 oz

Management Type: Unmanaged

IEEE Standard: OEM: Industry Standard

Environmental Compliance:Restriction of Hazardous Substances (RoHS)Environmental Compliance:Waste Electrical and Electronic Equipment Directive (WEEE)Country of Origin:ChinaTAA Compliant:No
