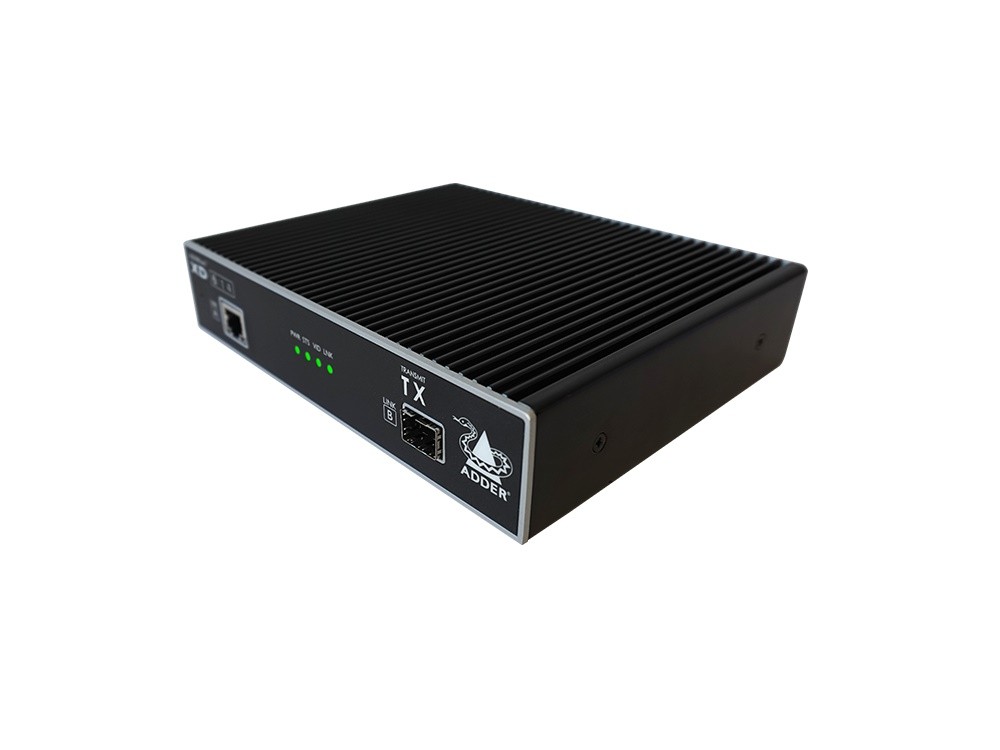

for All Products Adder XD614P-DP-US High-Resolution Quad-Head KVM Extender (High Definition Video/USB2.0/Audio) Manufacturer:Adder SKU:XD614P-DP-US Condition:New Warranty:2 Years
The ADDERLink™ XD614 is a high performance KVMA (Keyboard, Video, Mouse and Audio) extender that is designed to provide reliable and real-time access to critical computers – regardless of the location, whilst maintaining the same user desktop experience.
Developed for enterprise organizations and high-pressure control rooms, it combines the simplicity of true plug and play and high performance HD KVM extension, resulting in superior functionality and flexibility in a cost-effective, reliable and straightforward solution.
- Quad-head HD 60 video, USB2.0 (HID) and audio are transmitted on a single CATx or fiber cable.
- Point-to-point protocol for ultra-low latency.
- Flexibility between copper and fiber connectivity.
- Adder’s USB emulation ensures reliable computer bootup.
Features:
High-resolution video, real-time control
- The system supports resolutions up to 1920x1200 at 60Hz using 8 bits per color and 4:4:4 chroma sampling. Up to four heads are transmitted within a single cable by utilizing DisplayPort1.2 MST (Multi-Stream Transport) technology.
Single cable
- HD video, USB2.0HID (human interface device) and audio are transmitted on a single CATx or fiber cable.
Up to 4km/2.5 mile extension distances
- The ADDERLink XD614 supports both copper and fiber interfaces. It provides a range of up to 100m over a CAT6 cable link, and up to 4km over an optical fiber link.
Emulated USB2.0
- Enables connection of any full and low speed USB HID from mouse and keyboards through to graphics tablets and jog shuttles.
EDID management
- The system has intelligent EDID management to allow the true characteristics of the monitor to be passed back to the computer.
Plug and Play
- The ADDERLink XD614 extender is delivered in a zero config. state so it works, without the need for drivers or software, as soon as it is connected.
Digital audio
- Video: Encapsulates two channels of 24-bit, 192kHz sampled “Pulse-code modulation” (PCM) audio with each video signal.
- USB:Two channels of 24-bit, 96kHz sampled PCM audio.
- Analog:Two channels of 24-bit, 96kHz audio for Line in/out, microphone and headphone/speakers.
HD quality analog audio
- HD audio quality (stereo audio, 24-bit sampled at 96kHz) is available for line in/out, microphone and headphone or speakers.
Serial communications
- RS232 can be passed between the units to a maximum baud rate 115K2 with RTS/CTS flow control.
Specifications:
Video resolutions
- The system supports up to 4 heads at resolutions to a maximum of 1920x1200 at 60Hz
Software compatibility
- All known operating systems. No drivers required.
Extension technology
- 5Gb/s CATx or 10Gb/s fiber with ultra low latency adaptive video stream compression.
Connections
Local unit - Transmitter (TX)
- 4 x Tri-color status LEDs
- DisplayPort™ in and local pass-through out
- 2 x USB2.0 Type B
- Line in and out analog audio
- RJ12 serial port
- RJ45 and SFP+ ports
Remote unit - Receiver (RX)
- 4 x Tri-color status LEDs
- 2 x DisplayPort™ out
- 4 x USB2.0 full speed Type A
- Mic in, headset and speaker out
- RJ12 serial port
- RJ45 and SFP+ ports
Physical Design
Robust metal construction
- TX and RX: 186mm/7.32” (w), 39mm/1.54” (h), 148mm/5.83” (d)
- TX: 1.29kg/2.84lbs•RX: 1.24kg/2.73lbs
Power supply
- 100-240 VAC, 47/63Hz
- 12 VDC 18W output from power supply unit
Operating temperature
- 0ºC to 40ºC/32ºF to 104ºF
Storage temperature
- -10ºC to 50ºC/14ºF to 122ºF
Humidity
- 0% to 80% (non-condensing)
Approvals
