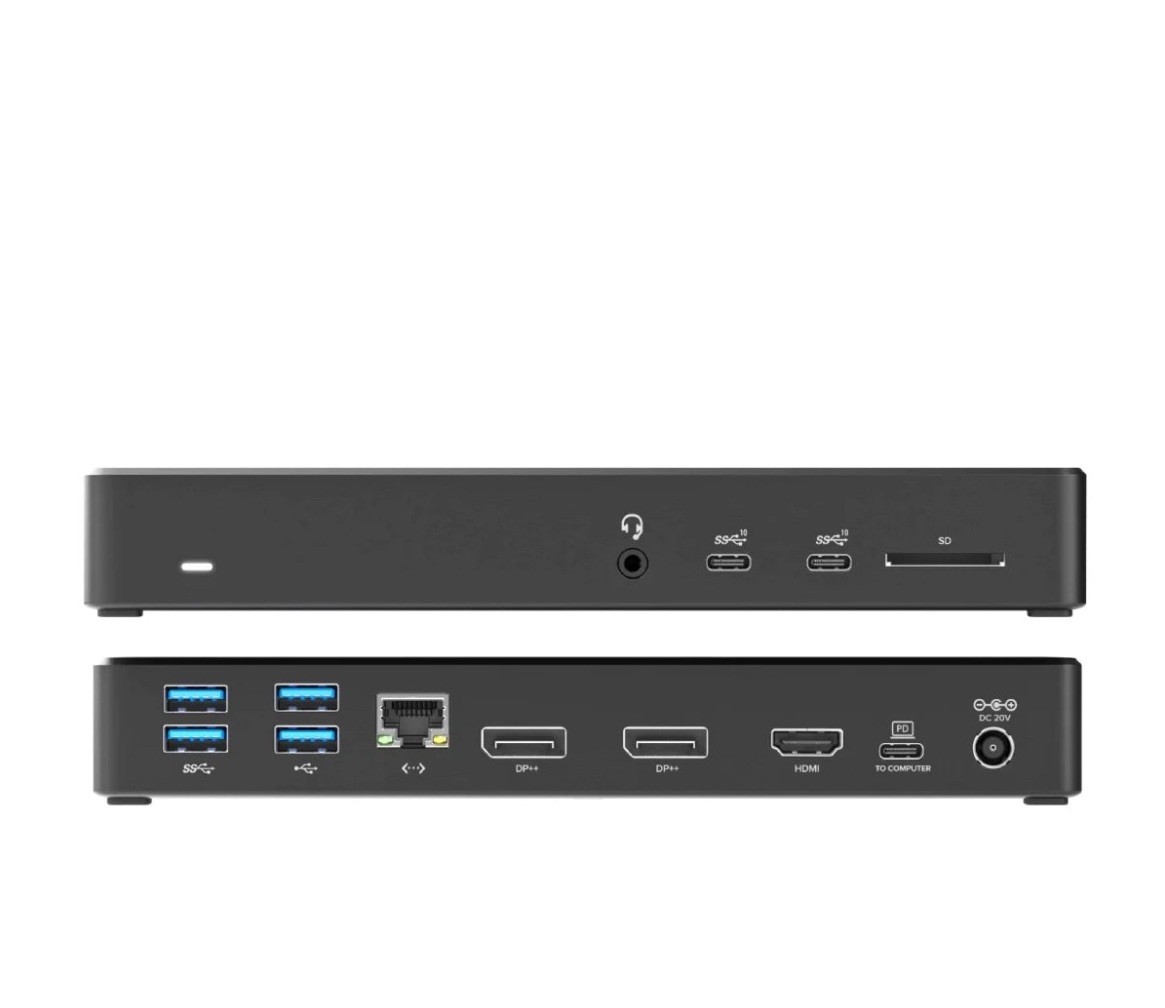

Alogic DX3 Universal Triple Display Docking Station Model-DUCMA3
New Open Box Ex-Display model
The MA3 dock can support up to three external displays via the 2 x DisplayPort (DP ++ / DP 1.4) and 1 x HDMI 2.0 outputs. The dock will support extension or mirroring across the three external displays when used with a Windows Laptop. *Refer to the resolution support table for details on different resolutions supported with the dock.
Comprehensive Connectivity
The MA3 dock supports up to three displays at resolutions of up to 4K*. In addition to the ability to connect external monitors, the dock provides access to a full range of connections with USB 3.1 Gen 2/10G USB-C and USB 3.1 Gen 1 and USB 2.0 USB-A Ports, Gigabit Ethernet, 3.5mm Combo Jack and SD Card The dock also features lock slots for securing it to a desk when being used in an office or a hot desking environment. *Refer to the resolution support table for details on different resolutions supported with the dock.
media
100W Laptop Charging/Power Delivery
The dock charges your laptop with up to 100W of power when in use. This allows for a perfect single cable solution to add multiple displays, USB accessories, gigabit ethernet, headphone/Mic and charge your laptop all at the same time.
Part No.: DUCMA3
Physical Characteristics: Product Dimensions: 210 x 30 x 90mm (L x W x H)
Colour: Black
Weight (product): 360g
Materials: ABS
Warranty: 2 Years
Output: 2 x DisplayPort, 1 x HDMI2 x USB-C 3.1 Gen 2 (10G) BC 1.2 and Apple Charging Support2 x USB-A 3.1 Gen1 (5G)2 x USB-A 2.01 x Audio / Microphone Jack 1 x RJ45 Ethernet 1Gbps1 x SD Card
Input: 1 x USB-C Port
Power: Up to 100W Power Delivery for Laptop Charging (170W AC Power Adapter Included in the box)
Resolution
: Up to 2 x 4K UHD 60Hz or 3 x 4K UHD 30Hz with DP 1.4HBR3 with DSC enabled host**See resolution support tables below for maximum outputs
Package Includes
: 1 x Dock1 x 170W AC Power Adapter1 x US; 1 x UK; 1 x EU; 1 x AU Power Cord1 x User Manual
Device Compatibility
: Compatible with all computers with a USB-C port (Windows 7 or newer, Mac or Chromebook)
Compliance
: FCC, CE, RoHS
Barcode (EAN)
: 9350784022431
