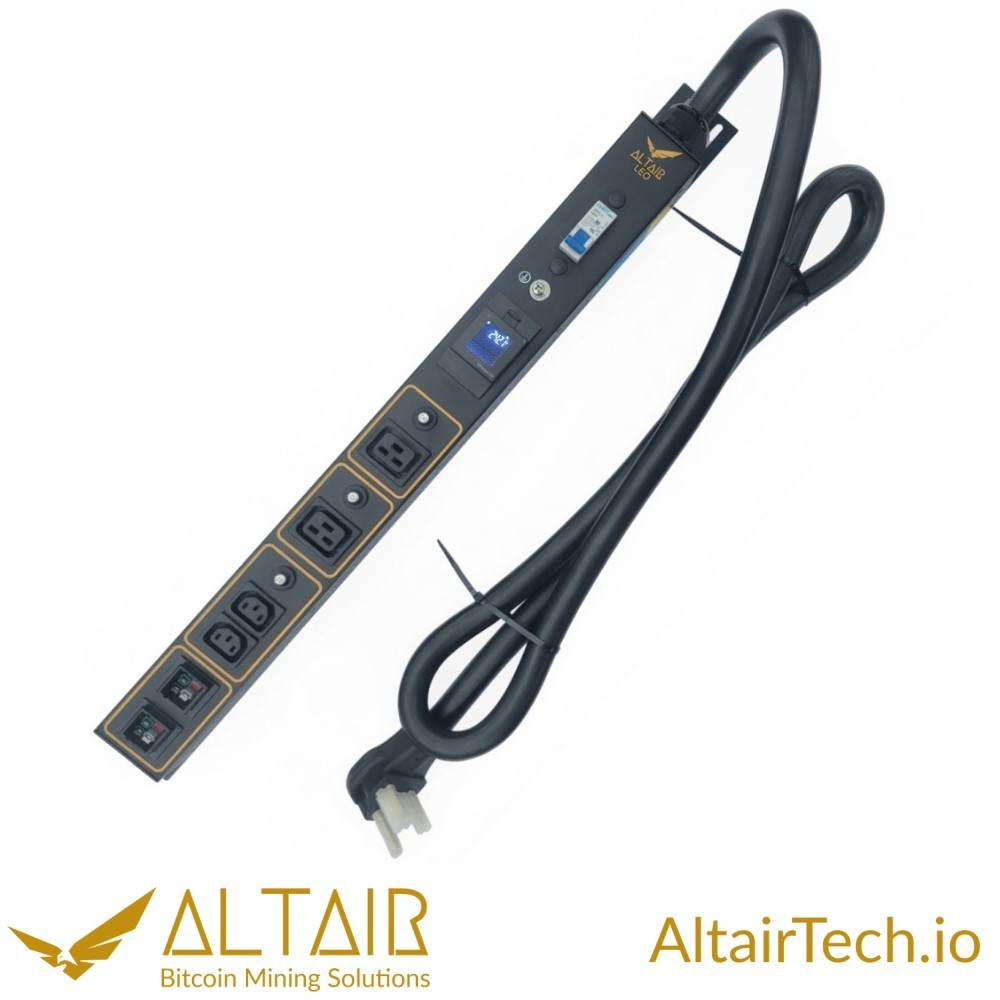

Leo 50amp 12kW Metered PDU
High-Performance Power Distribution in a Compact 1U Form Factor for EV Charging Outlets

The Altair Leo 50A Metered PDU is built for Bitcoin miners who want clean, monitored, and safe 240V power distribution without running new wiring. It plugs directly into any NEMA 14-50 outlet, the same 50-amp receptacle used by Tesla Referral Wall Connectors, Level 2 EV chargers, electric ranges, and RV hookups, turning a single existing circuit into a professional-grade power hub for 3 to 5 ASIC miners.

• Swappable LCD Meter
  The Leo ships with an integrated LCD meter that gives you real-time visibility into voltage, current, power factor, energy consumption, and frequency. The meter is swappable, so you can replace or upgrade it without replacing the unit. For miners managing operating costs and load balancing across multiple machines, knowing your exact draw at all times is not optional.

  Six Outlets Across Three Connector Types
  The Leo includes two IEC C13 outlets (15A), two IEC C19 outlets (20A) with gold-bordered housings and individual 20A push-to-reset breakers, and two ANEN P14 outlets rated up to 45A each for new-generation miners. This combination covers the PSU connectors used across Bitmain Antminer, MicroBT Whatsminer, and Canaan Avalon product lines without adapters.

  Plugs Into Your Existing EV Outlet
  The Leo uses a UL Listed NEMA 14-50P input plug (E257089, 125/250V, 50A) with a 6-foot heavy-gauge power cord. If you already have a 50-amp 240V circuit in your garage, basement, or utility room, you have everything you need. No electrician, no new panel work, no adapters.

  Built for 24/7 Operation
  The onboard CHINT NB1-63 C50 circuit breaker is UL1077 listed and rated to 277VAC, providing whole-unit overload protection before your hardware is at risk. Individual 20A reset breakers on each C19 outlet let you isolate a fault on one miner without taking down the entire rack. The perforated aluminum 1U chassis handles the heat and vibration of continuous mining environments.

Specifications

• Input Plug: NEMA 14-50P, UL Listed E257089
• Input Voltage: 100 to 250V AC
• Max Input Current: 50A (40A derated continuous)
• Max Output Power: 12,000W at 240V
• Output Ports: 2x IEC C13 (15A), 2x IEC C19 (20A), 2x ANEN P14 (45A)
• Circuit Breaker: CHINT NB1-63 C50, UL1077, 277VAC
• Meter Display: Voltage, Current, Power Factor, Energy, Frequency (swappable)
• Power Cord Length: 6 feet
• Form Factor: 1U vertical rackmount
• Weight: 9 lbs
• Certifications: QC Passed, RoHS Compliant
• Model: style="box-sizing: border-box; border: 0px; font-size: 15px; margin: 0px 0px 1.6em; outline: 0px; padding: 0px; vertical-align: baseline; color: rgb(102, 74, 1); font-family: Lato, sans-serif; background-color: rgb(243, 238, 232);">In the Box

  Leo 50A Metered PDU, 6-foot NEMA 14-50P power cord, rack mount screws and cage nuts.
