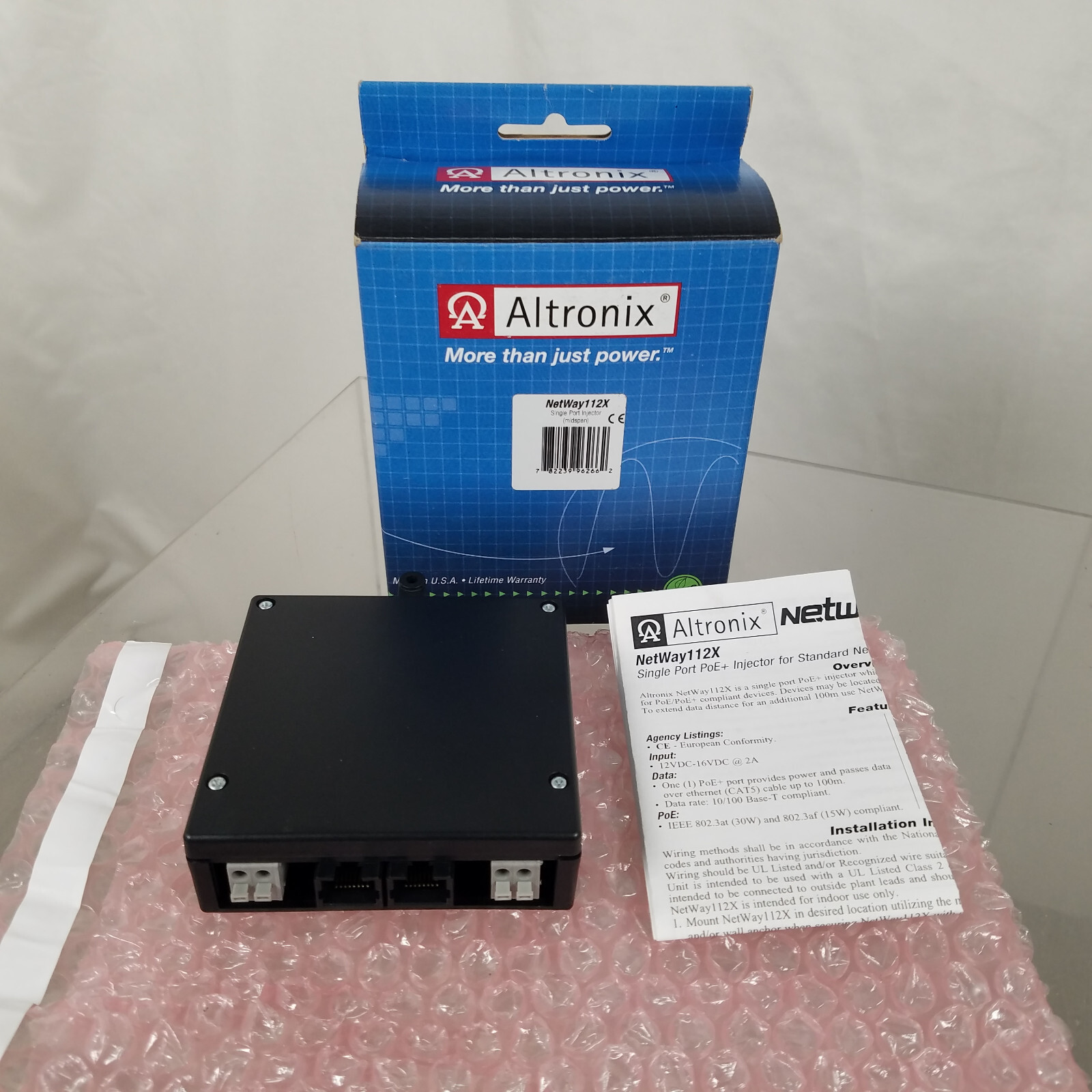

Altronix NetWay112X single port midspan/injector provides power and passes data (e.g. video) for PoE/PoE+ compliant devices. Devices may be located up to 100m from NetWay112X. A NetWayXTX repeater module can be utilized to extend the distance for an additional100m for a total range of up to 200m. A maximum range of 600m is possible using multiple repeaters, based on device port requirement. NetWay112 is capable of supporting non-PoE compliant fixed IP cameras by utilizing NetWay1512 adapter.

Altronix NETWAY112X Injector Features

Power Output: 12VDC to 16VDC at 2A, providing versatile power options for various devices.

Power Delivery: 48VDC, up to 30W max, ensuring efficient energy supply for high-performance devices.

Compliance: IEEE 802.3at and IEEE 802.3af compliant for compatibility with a wide range of PoE devices.

Protection: Short circuit protection to safeguard connected devices from electrical faults.

Connectivity: RJ45, auto-crossover for easy integration with existing network setups.

Wiring Standard: 4-pair CAT5e, supporting high-speed data transmission.

Distance Capability: Distance up to 100m with the potential for extension using repeaters.

Speed: 10/100BaseT, half/full duplex, auto negotiation for optimal performance.

LED Indicators: Power/Port status LEDs for convenient monitoring of device activity.

Status Monitoring: Yellow and Green LED indicators for IP Link status, 10/100Base-T activity.

Operating Temperature: 0° C to 40° C (32° F to 104° F), suitable for various environments.

Storage Temperature: -40° C to 70° C (-40° to 158° F) for reliable performance in extreme conditions.

Humidity Tolerance: Relative Humidity 85% +/- 5% for adaptability to different atmospheric conditions.

Range Support: 304.8 to 3,048m ( - 1,000 to 10,000 ft.) possible with repeaters for extensive coverage.
