ITEM OVERVIEW

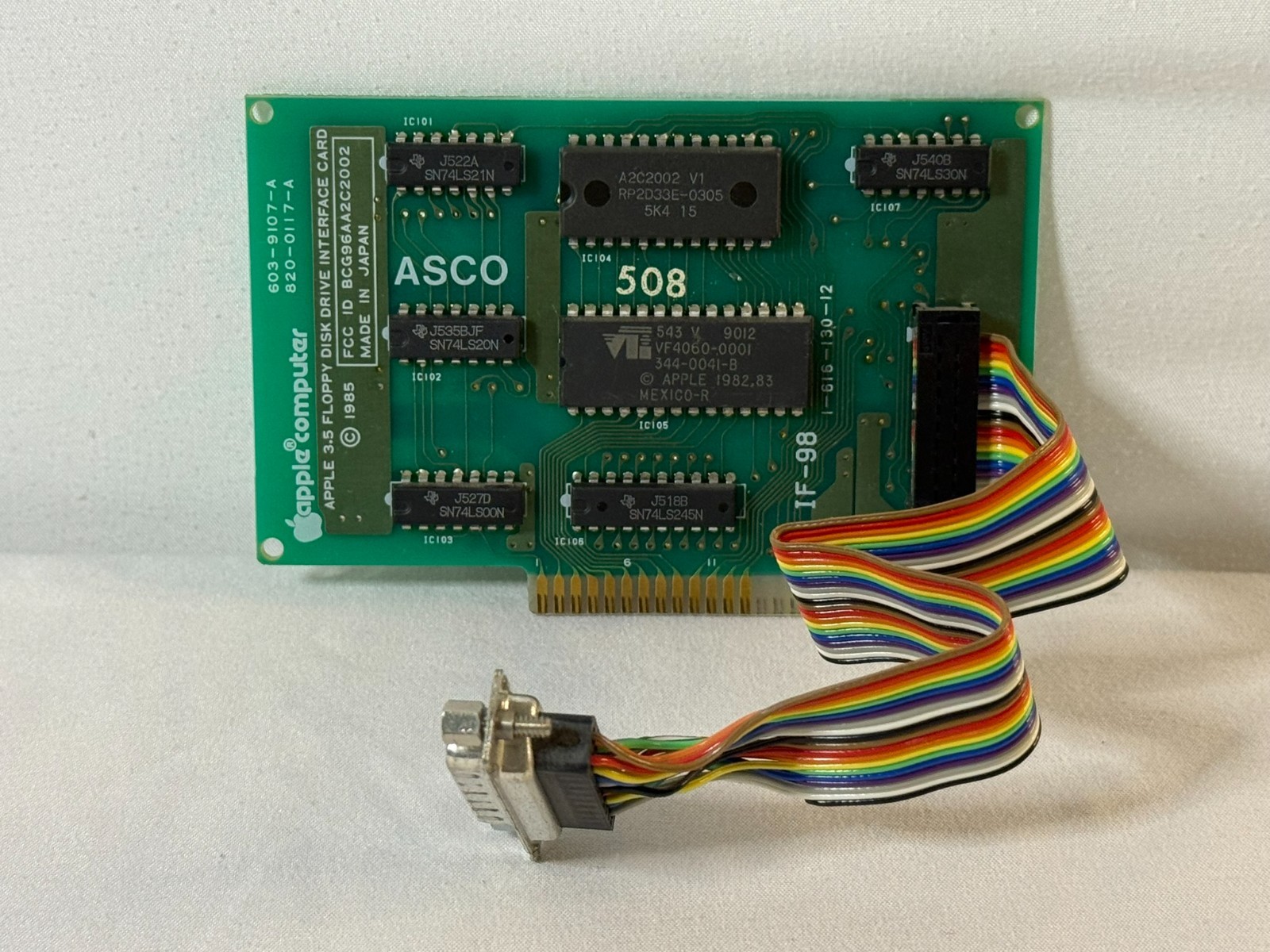

Original Apple Computer 3.5 Floppy Disk Drive Interface Card from 1985 with its attached rainbow ribbon cable and DB-19 drive connector.
This is the desirable LIRON / ASCO 508 controller used to connect an Apple UniDisk 3.5 to compatible Apple II systems.
DESCRIPTION
Genuine vintage Apple floppy-drive controller card with numerous original identifying markings still clearly visible.
The card is marked 603-9107-A, 820-0117-A, Apple 3.5 Floppy Disk Drive Interface Card, ©1985, ASCO 508, IF-98, and 1-616-130-12. It also retains the original rainbow ribbon cable and DB-19 connector.
Prominent installed chips include the Apple-marked 344-0041-B IWM controller dated © Apple 1982/83 and an A2C2002 V1 / RP2D33E-0305 device.
This card came from the large, carefully stored vintage Apple collection. I do not currently have the compatible Apple II/UniDisk setup needed to perform a full functional test.
KEY HIGHLIGHTS
- Genuine Apple Computer controller card
- Apple 3.5 Floppy Disk Drive Interface Card
- Commonly known as the LIRON card
- 603-9107-A
- 820-0117-A
- ASCO 508
- Sony 1-616-130-12 / IF-98
- Apple 344-0041-B IWM chip
- A2C2002 V1 controller chip
- Original rainbow ribbon cable
- Original DB-19 connector
- Made in Japan
- Copyright 1985
- Designed for the Apple UniDisk 3.5; contemporary documentation identifies it as the appropriate controller for that drive.
CONDITION
- Great overall cosmetic condition for its age
- Circuit board is exceptionally clean and well preserved
- Components and ICs appear complete and intact
- Ribbon cable is clean and remains firmly attached
- DB-19 connector appears intact
- Edge contacts show only normal signs of prior installation
- No obvious corrosion, burned areas, broken traces, or major physical damage seen
- From a large, carefully stored vintage Apple computer collection
- Full functional testing was not performed because the required compatible Apple II/UniDisk setup is not currently available
- Please review all photos for exact condition, markings, and included components
Item pictured is the exact item you will receive.
