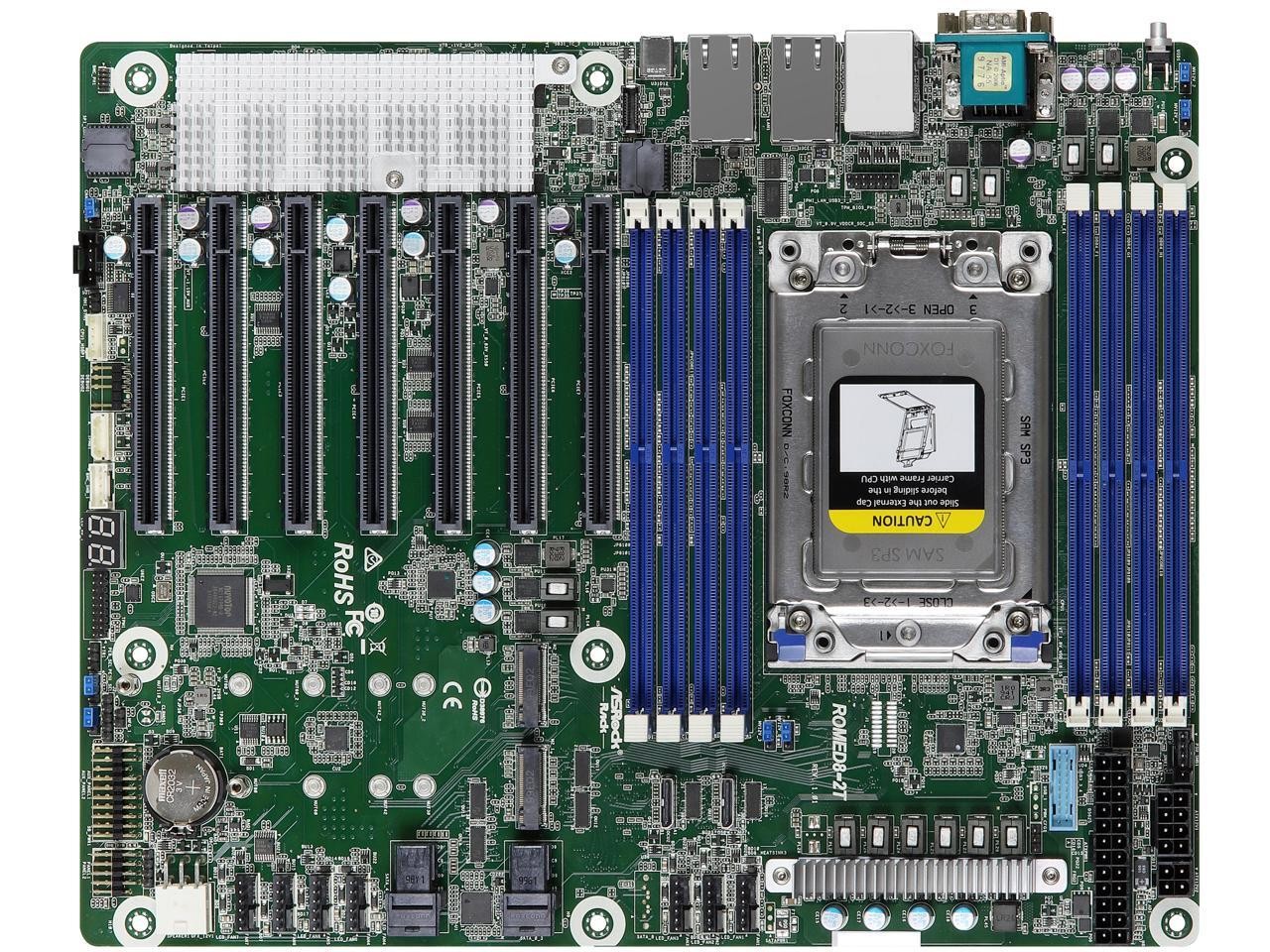

Learn more about ASRock Rack ROMED8-2TModelBrandAsRock RackModelROMED8-2TSupported CPUCPU Socket TypeSocket SP3CPU TypeSupports AMD EPYC 7003 (with AMD 3D V-Cache Technology*) / 7002 Series Processors*A BIOS update is required to support AMD EPYC 7003 series processors with AMD 3D V-Cache TechnologyNumber of Processor Support1MemoryNumber of DDR4 Slots8 DIMM slots (1DPC) DDR4 288-pinDDR4 StandardRDIMM/ LRDIMM/NVDIMM-N: max. 3200MHzMaximum Memory SupportedMax. Capacity per DIMM
- RDIMM: up to 64GB
- LRDIMM: up to 128GB
- RDIMM/LRDIMM-3DS: up to 256GB
- NVDIMM-N: up to 32GBChannel SupportedEight ChannelECC SupportedYesExpansion SlotsPCI Express 4.0 x16PCIE1: Gen4 x16 link
PCIE2: Gen4 x16 link or Gen4x8 link+2x M.2+2x miniSASHD or no PCIE slot +2x OCulink+2xM.2+2x miniSASHD(by jumper)
PCIE3: Gen4 x16 link
PCIE4: Gen4 x16 link
PCIE5: Gen4 x16 link
PCIE6: Gen4 x16 link
PCIE7: Gen4 x16 link
(SLOT7 close to CPU)Other Slots2 OCuLink* (PCIe4.0 x4)
*Shared with SLOT2 by jumperStorage DevicesSATA10 x SATA 6.0Gb/sSAS2 x Mini-SAS HD, 2 M.2M.21 M-key* (PCIe4.0 x4 or SATA 6Gb/s), supports 2280/2260/2242/2230 form factor
1 M-key* (PCIe4.0 x4 or SATA 6Gb/s), supports 22110/2280/2260/2242/2230 form factor
*Share with SLOT2 by jumperOnboard VideoOnboard Video ChipsetAspeed AST2500Onboard LANLAN ChipsetIntel X550-AT2LAN Speed10GbpsMax LAN Speed10GbpsRear Panel PortsBack I/O PortsUID Button/LED: 1
VGA Port: 1 DB15
Serial Port: 1 DB9
USB 3.2 Gen1 Port: 2 Type-A (USB3.2 Gen1)
USB 3.2 Gen2 Port: 1 Type-C (USB3.2 Gen2)
RJ45: 2 RJ45 (10GbE)
1 dedicated IPMIOnboard PortsOnboard USBUSB 3.2 (Gen1) Header: 1 (19-pin, 2 USB3.2 Gen1)
USB 3.2 (Gen2) Header: 1 (Type-C, 1 USB3.2 Gen2)Other ConnectorsPower Connector: 1 (24-pin, ATX main power), 1 (8-pin, ATX 12V), 1 (4-pin, ATX 12V)
Auxiliary Panel Header: 1 (includes chassis intrusion, location button & LED, and front LAN LED)
System Panel: 1 (rst, pwrbtn, hddled, pwrled)
Speaker Header: 1 (4-pin)
Fan Header: 7 (6-pin) [1CPU/4Front/2Rear]
Thermal Sensor Header: 1
TPM Header: 1 (17-pin, LPC), 1 (13-pin, SPI)
SMBus header: 1
PMBus header: 1
IPMB Header: 1
Clear CMOS: 1 (contact pads)
NMI Header: 1DimensionsForm FactorATXDimensions (W x L)12.0" x 9.6"ShippingEnjoy fast and reliable shipping when you buy your products from Newegg. Our ordering and shipping services are among the best in the industry due to short processing times and a variety of shipping methods. Your orders are packaged at one of the many local warehouses across the country, minimizing delivery times and ensuring you get your purchases as soon as possible.PaymentsNewegg has partnered with PayPal to offer you the very best in payment services. PayPal allows you to buy with confidence, knowing your payments are processed quickly and securely with state-of-the-art encryption technology.ReturnReturns are subject to restocking fees of 15% - 30% of the purchase price and return shipping fees. For products that are eligible for return for replacement, the return shipping labels are free for returns for replacement of the same item within the applicable return policy period. Newegg does NOT charge for restocking fees or return shipping labels for returns of defective products, or if you received the wrong product, the product did not match what was shown on the Site, or we made some other shipping error, provided the item is returned within its return policy period, and in accordance with the Return Policy. For international buyers, items shipped internationally do not qualify for manufacturer warranties.
