Asus P2B-N Motherboard

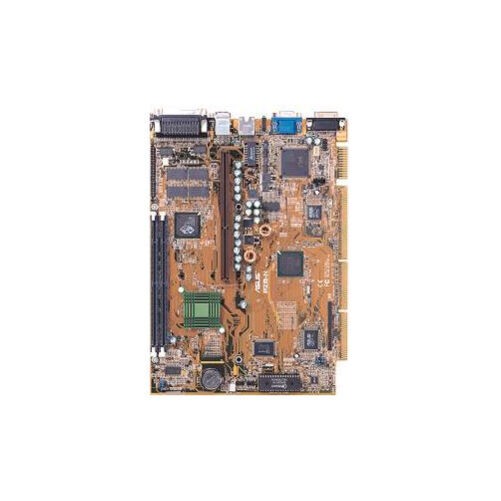

Asus P2B-N NLX motherboard
MODELAsus P2B-N NLX motherboard PROCESSORSlot 1 for Intel Pentium II Processor (266MHz or faster)
CHIPSET
Intel 100 MHz 440BX AGPset with Riser Card BUS ARCHITECTURE32-bit PCI Bus, 32-bit AGP Bus and 16-bit ISA Bus Compatible EXPANSION SLOTS2 x 32-bit PCI Slots (PCI Rev 2.1 Interface Compliant)
1 x 16-bit ISA Slots (share with 1 PCI) CACHEProcessor Built-in 512K/128K/0K L2 Cache SYSTEM MEMORY2 x 168-pin DIMM Sockets to Support upt to 512MB PC100 SDRAM ON BOARD RISER CARDNLX Power1 x Floppy Port (Up to 2.88MB, 3 Mode)2 x Serial Ports1 x Parallel Port (EPP, ECP Port)Primary IDE PortFloppy PortUSB PortWake-On LAN portSpeaker (RJ-45) PortAudio PortJoystick PortIrdA Port ONBOARD IDE2 Dual UltraDMA/33: 33MB/Sec., ATAPI IDE (supports >8.4GB)
CD-ROM Support (Slim CD-Rom Optional)
LS-120 Support ONBOARD VGAATI 3D RAGE PRO/IIC with 8/4MB SDRAM ONBOARD AUDIOESS Solo-1 3D Solo-1 32-bit 3D Positional PC
Support Sound BlasterTM and Sound Blaster Pro and full-duplex stereo ONBOARD LANAsus P2B-N motherboard comes with Intel 82558 10/100Mbps Wake-On-LAN ENHANCED ACPI BIOS2MB Award AGP Bios with Enhanced ACPI Feature for PC98/ Win98 ComplianceDMI (Desktop Management Interface)Anti-Boot VirusBundled PC-cillin KEYBOARD POWER ON2MB Award AGP Bios with Enhanced ACPI Feature for PC98/ Win98 ComplianceDMI (Desktop Management Interface)Anti-Boot VirusBundled PC-cillin OTHER FEATURESSupports Keyboard Power On Feature with ATX Power [300mA 5V (stand by) ATX Power is Required]Auto Fan Sleep ModeResource & Temperature Monitoring AlertKeyboard Power (Wake) UpRemote Modem Ring-OnDual Function Power Button DIMENSIONSNLX Form Factor (8" x 11.2")
