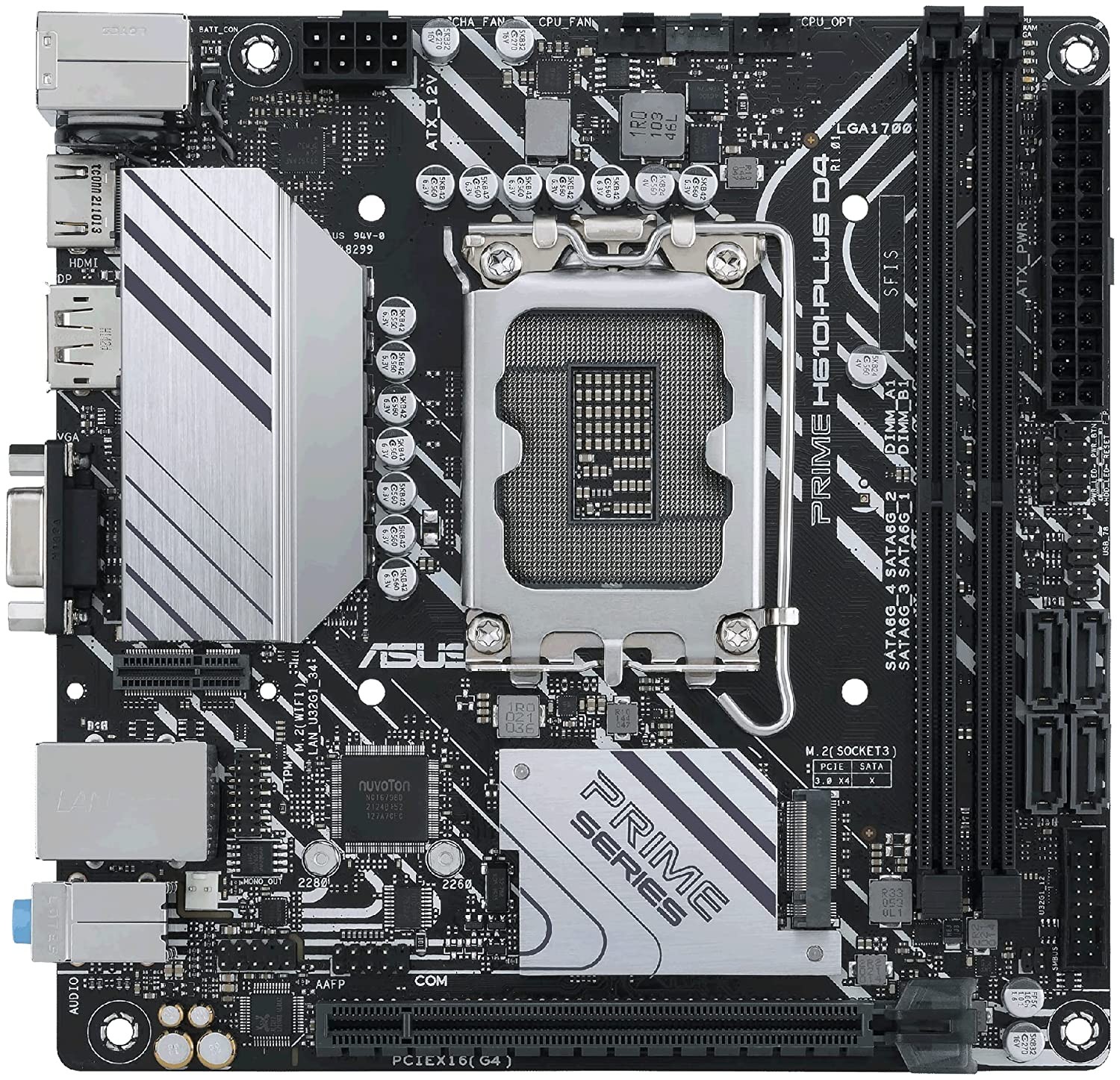

Asus Prime PRIME H610I-PLUS D4-CSM Desktop Motherboard - Intel H610 Chipset - Socket LGA-1700 - Mini ITX (primeh610iplusd4csm) Asus Prime PRIME H610I-PLUS D4-CSM Desktop Motherboard - Intel H610 Chipset - Socket LGA-1700 - Mini ITX (primeh610iplusd4csm)

International Customers: All electronic products are packaged for sale in the US with US voltage.

Package Contents: PRIME H610I-PLUSD4-CSM Desktop Motherboard 2 x SATA 6Gb/s cables 1 x I/O Shield 1 x M.2 Screw Package 1 x Vertical M.2 Key E bracket set 1 x Support DVD 1 x User guide

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Product Description

This item is brand-new, factory sealed.

1.Intel LGA 1700 socket: Ready for 12th Gen Intel processors

2.Comprehensive cooling: VRM heatsink, PCH heatsink and Fan Xpert

3.Ultrafast connectivity: PCIe 4.0, DDR4, 32Gbps M.2 slot, Realtek 1 Gb Ethernet, USB 3.2 Gen 1 and V-M.2 Key E slot for Wi-Fi CPU
Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron ProcessorsNote1
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0Note2
Note1: Refer to for CPU support list.
Note2: Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset
Intel H610 Chipset Memory
2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
Note: Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to for the Memory QVL (Qualified Vendors Lists). Graphics
1 x DisplayPort 1.4Note2
1 x D-Sub
1 x HDMI portNote3
Note1: Graphics specifications may vary between CPU types. Please refer to for any updates.
Note1: Support DisplayPort 1.4 with max. resolution of 4K60Hz. Please refer to for any updates.
Note3: Support HDMI 2.1 with max. resolution of 4K60Hz. Please refer to for any updates. Expansion Slots
Intel 12th Gen Processors
1 x PCIe 4.0 x16 slot Storage
Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
Intel H610 Chipset
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
4 x SATA 6Gb/s ports Ethernet
1 x Realtek 1Gb Ethernet Wireless and Bluetooth
M.2 slot only (Key E, CNVi and PCIe)
Note: Wi-Fi module is sold separately. USB
Rear USB (Total 4 ports)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 4 ports)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header supports additional 2 USB 2.0 ports Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Dedicated audio PCB layers
Note: A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. Back Panel I/O Ports
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x D-Sub port
1 x HDMI port
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin Chassis Fan header
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
1 x M.2 slot (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header supports additional 2 USB 2.0 ports
Miscellaneous
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x Mono-out header(with Amp IC)
1 x SMBUS header
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header Special Features
ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-LED (CPU (red), DRAM (yellow), VGA (white), Boot Device (yellow green))
- Q-Slot
ASUS Thermal Solution
- Aluminum heatsink design Software Features
ASUS Exclusive Software
Armoury Crate
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
Fan Xpert
ASUS CPU-Z
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode BIOS
128 Mb Flash ROM, UEFI AMI BIOS Manageability
WOL by PME, PXE Accessories
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x M.2 Screw Package
Installation Media
1 x Support DVD
Documentation
1 x User guide Operating System
Windows 11 64-bit, Windows 10 64-bit Form Factor
Mini ITX Form FactorItem Dimension (L inchxW inchxH inch)
9 x 8 x 3

Weight
2.00 lb

Warranty Information
3 Year WarrantyPackage Contents:

• PRIME H610I-PLUSD4-CSM Desktop Motherboard
• 2 x SATA 6Gb/s cables
• 1 x I/O Shield
• 1 x M.2 Screw Package
• 1 x Vertical M.2 Key E bracket set
• 1 x Support DVD
• 1 x User guide

SpecificationPhysical CharacteristicsForm FactorMini ITXWidth6.7"Depth6.7"I/O ExpansionsTotal Number of Expansion Slots1PCI Express StandardPCI Express 4.0Number of PCI Express x16 Slots1Total Number of PCI Express Slots1MemoryMemory TechnologyDDR4 SDRAMNumber of Memory Slots2Memory Speed Supported

• 3200 MHz
• 3000 MHz
• 2933 MHz
• 2800 MHz
• 2666 MHz
• 2400 MHz
• 2133 MHz

Memory Form Factor

• 12th Gen
• 13th Gen
• 14th Gen

Processor Supported

• Pentium Processor Supported1Processor SocketSocket LGA-1700Chipset ModelH610Onboard InterfacesNumber of SATA Interfaces4Total Number of Onboard USB Ports4Number of M.2 Interfaces1Number of Onboard USB 2.0 Ports2Interfaces/PortsHDMI Version 2.1 DisplayPortYesHDMIYesTotal Number of USB Ports4Number of USB 3.2 Gen 1 Type-A Ports2Number of Network (RJ-45) Ports1I/O ControllerController TypeSerial ATA/600VideoOnboard VideoCPU Dependent VideoNetwork & CommunicationGigabit EthernetYesAudioAudio Channels7.1 Shipping
