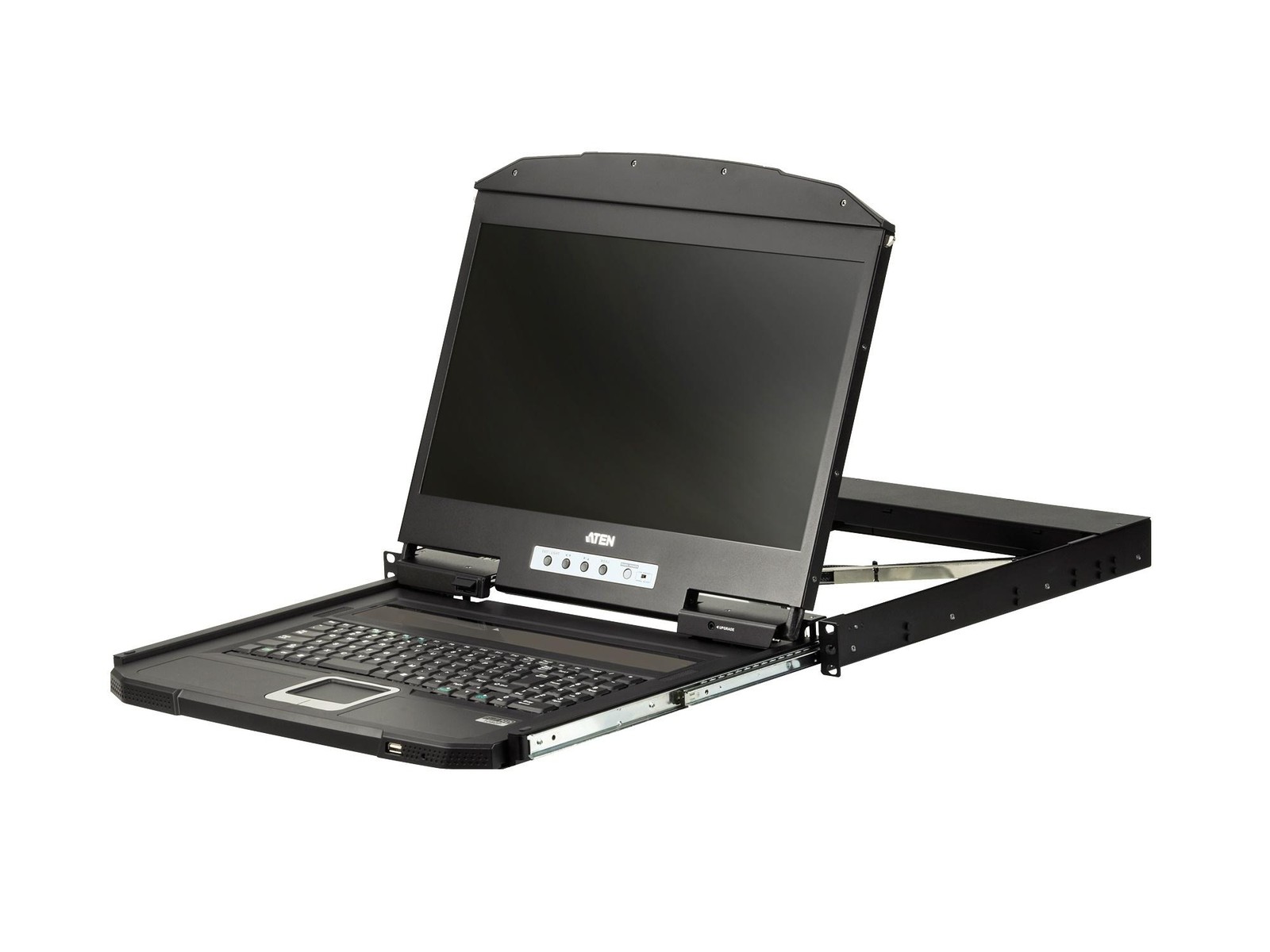

for All Products Aten CL3700NW 1U Ultra Short Depth Single Rail WideScreen LCD Console (USB/HDMI) with Full HD Resolution/1920x1080 Manufacturer:Aten SKU:CL3700NW Condition:New Warranty:3 Years
CL3700NW: 18.5" LCD screen with Full HD resolution of 1920 x 1080
The CL3700 USB HDMI LCD Console is a short depth single rail LCD KVM console featuring an 18.5" LED-backlit widescreen LCD monitor with an integrated keyboard and touchpad. The short-depth design fits all 19" equipment cabinets, and is especially suitable for shallow racks. The CL3700 provides an ideal space-saving solution for special environments such as outside broadcast vans (OB vans) and compact control rooms.
The CL3700 is a dedicated front end sliding console for compatible HDMI KVM switches. The CL3700NW’s full HD widescreen LCD monitor ensures excellent video quality and provides ample viewing area. For added convenience, users can choose to manage the computer from an external console. The CL3700 features a port for an external USB mouse on the unit’s front panel, while ports for the second KVM console (USB keyboard/mouse and HDMI monitor) are provided on the rear panel.
With a rich feature set, the CL3700 is designed to exceed the requirements for space utility optimization, superior video quality, adaptive deployment, and operational versatility, and is ideal for applications such as mobile live streaming in the broadcasting sector or control rooms with limited space in any industry.
Features:
- Exclusive LED illumination light – designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
- Integrated KVM Console with short depth single rail design anda 18.5” LED-backlit LCD monitor allows you to work in narrow spaces
- 18.5" LCD screen supports Full HD resolution of 1920 x 1080 at 60Hz (CL3700NW); 18.5" LCD screen supports resolution of 1366 x 768 at 60Hz (CL3700NX)
- Supports an external console with USB / HDMI connectors; supports input video resolutions up to 1920 x 1200 at 60Hz
Specifications:
Function CL3700NW CL3700NX Computer Connections Direct 1 1 Console Selection Hotkey Hotkey Connectors External Console Ports 1 x HDMI Female
2 x USB Type A Female 1 x HDMI Female
2 x USB Type A Female KVM Ports 1 x HDMI Female
1 x USB Type B Female 1 x HDMI Female
1 x USB Type B Female USB Port 1 x USB Type A Female 1 x USB Type A Female Firmware Upgrade 1 x 3.5mm Audio Jack Female (Black) 1 x 3.5mm Audio Jack Female (Black) Power 1 x 3-prong AC Socket 1 x 3-prong AC Socket Switches Reset 1 x Semi-recessed Pushbutton 1 x Semi-recessed Pushbutton Firmware Upgrade 1 x Slide Switch 1 x Slide Switch Power 1 x Rocker Switch 1 x Rocker Switch LCD Power 1 x Pushbutton 1 x Pushbutton LCD Adjustment 4 x Pushbutton 4 x Pushbutton LEDs Power 1 x KVM Console (Dark Green)
1 x LCD (Orange) 1 x KVM Console (Dark Green)
1 x LCD (Orange) Lock 1 x NumLock (Green)
1 x CapsLock (Green)
1 x ScrollLock (Green) 1 x NumLock (Green)
1 x CapsLock (Green)
1 x ScrollLock (Green) Emulation Keyboard / Mouse USB USB Video Input Video Resolution 1920 x 1200 at 60 Hz 1920 x 1200 at 60 Hz Panel Spec LCD Module 18.5" TFT-LCD 18.5" TFT-LCD Resolution 1920 x 1080 at 60Hz 1366 x 768 at 60Hz Pixel Pitch 0.213 mm x 0.213 mm 0.3 mm x 0.3 mm Response time 20 ms 5 ms Viewing Angle 178° (H), 178° (V) 170° (H), 160° (V) Contrast Ratio 1000 : 1 1000 : 1 Support Color 16.7M colors 16.7M colors Luminance 350 cd/m² 250 cd/m² Maximum Input Power Rating 100–240 V AC, 50/60 Hz, 1 A 100–240 V AC, 50/60 Hz, 1 A Power Consumption AC110:23.3W:124BTU
AC220:23.9W:127BTU AC110:13.6W:79BTU
AC220:13.5W:78BTU Environmental Operating Temperature 0–40°C 0–40°C Storage Temperature -20–60°C -20–60°C Humidity 0–80% RH, Non-condensing 0–80% RH, Non-condensing Physical Properties Housing Metal + Plastic Metal + Plastic Weight 9.01 kg ( 19.85 lb ) 9.03 kg ( 19.89 lb ) Dimensions (L x W x H) 48.06 x 47.70 x 4.28 cm
(18.92 x 18.78 x 1.69 in.) 48.06 x 47.70 x 4.28 cm
(18.92 x 18.78 x 1.69 in.) Body Dimensions(L x W x H) 44.92 x 43.00 x 4.28 cm 44.92 x 43.00 x 4.28 cm Note Body Dimensions exclude I/O ports, handles, and mounting brackets. Body Dimensions exclude I/O ports, handles, and mounting brackets. Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
Package Includes:
- 1x CL3700 LCD KVM Console with Standard Rack Mount Kit
- 1x USB HDMI KVM Cable (HDMI, USB, Audio; 1.8 m/6 ft)
- 1x Firmware Upgrade Cable
- 1x Power Cord
- 1x User Instructions
