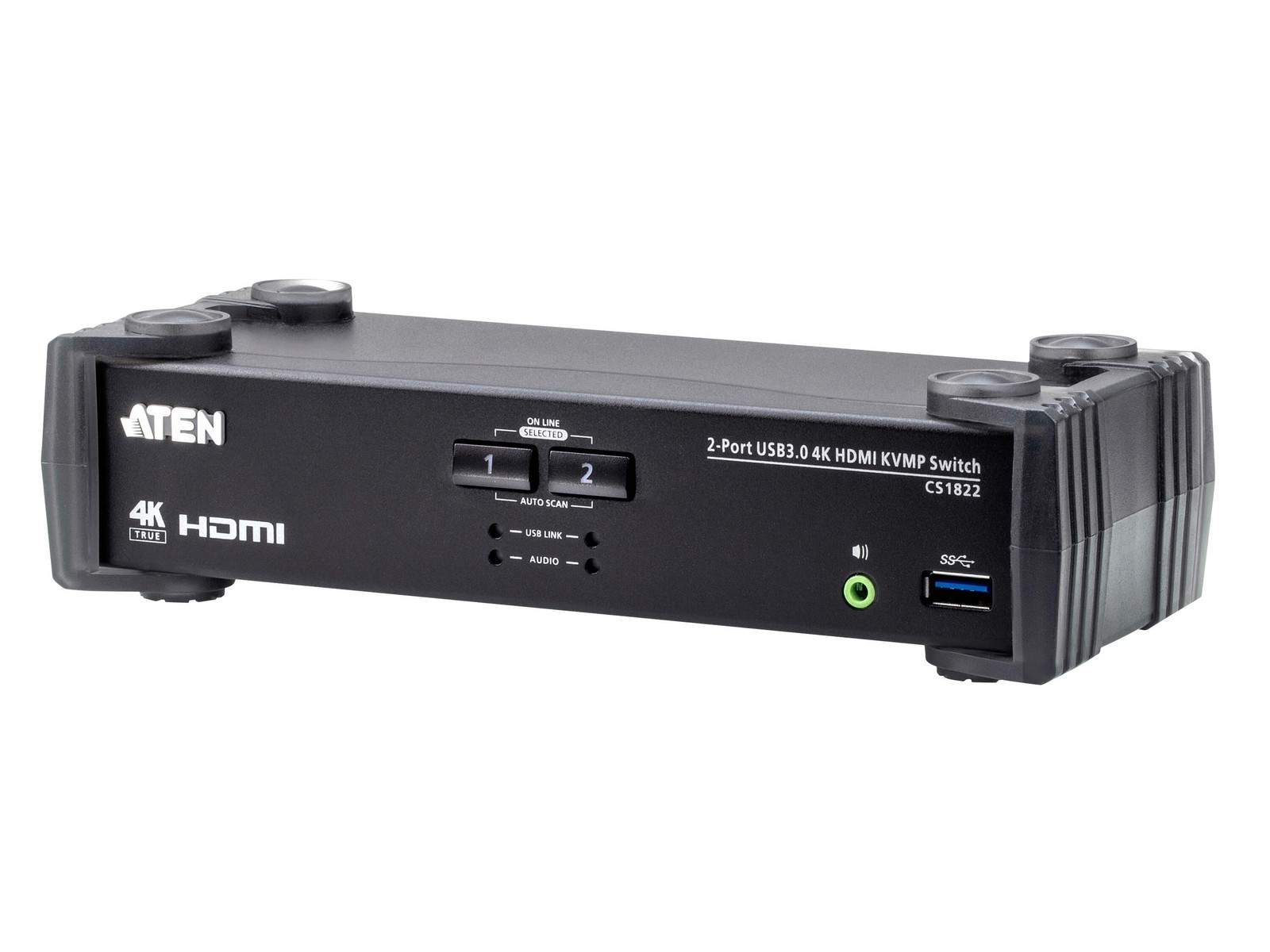

for All Products Aten CS1822 2-Port USB 3.0 4K HDMI KVMP Switch with Audio Mixer Mode Manufacturer:Aten SKU:CS1822 Condition:New Warranty:3 Years
The ATEN CS1822 KVMP™ Switch offers effortless management of two HDMI interface computers from a single USB keyboard, mouse and HDMI monitor. Supporting the most superior video quality up to 4K DCI (4096 x 2160 at 60Hz), the CS1822 optimizes user experience of multitasking.
With patented ATEN technology - Video DynaSync™, users can enjoy better display resolution and faster switching between systems. What’s more, the default EDID mode is available for smooth power-up, high-quality display and eliminates monitor compatibility issue.
In addition, the CS1822 features Audio Mixer Mode which mixes audio sources from any two connected computers as audio output, benefiting users to be notified without missing any system alert even the KVM focus is set on other computers. With a built-in USB 3.1 Gen 1 hub, the CS1822 delivers data transfer rates up to 5 Gbps, allowing you to accelerate multimedia operations and share USB peripherals with ease.
Integrating these outstanding functionalities, the CS1822 provides a great advantage for those doing CGI work, graphic design, video post production, etc. to operate multiple tasks smoothly.
Features:
- One USB keyboard/mouse and one HDMI monitor control two computers and share two USB peripherals
- Supports superior video quality - 4K UHD (3840 x 2160 at 60Hz) and 4K DCI (4096 x 2160 at 60Hz)
- Video DynaSync™ - an exclusive ATEN technology that eliminates boot-up display problems and optimizes the resolution when switching among different sources
- Built-in 2-Port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
- Audio Mixer Modes - mixes up to two audio sources as audio output
- Computer selection via pushbuttons, hotkeys, mouse1, and RS-232 commands
- ATEN defaultEDIDmode - smooth power-up, high-quality display and resolution optimization to eliminate compatibility issue
- Independent switching of KVM, USB peripheral, and stereo audio focus2
- HDMI 2.0 compliant;HDCP2.2 compliant
- Supports HD Audio2
- Power on detection
- Auto Scan Mode for monitoring all computers
- Firmware upgradable
Note:
1. Mouse port switching is only supported under mouse emulation mode and by USB 3-key wheel mice.
2. HD audio through HDMI channel cannot be switched independently
Specifications:
Computer Connections 2 Port Selection Hotkey, Pushbutton, Mouse, RS-232 Commands Connectors Console Ports 2 x USB Type A Female
1 x HDMI Female (Black)
2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear) KVM (Computer) Ports 2 x USB3.1 Gen1 Type B Female (Blue)
2 x HDMI Female (Black)
2 x 3.5mm Audio Jack Female (Green) Serial 1 x RJ-11 Female Power 1 x DC Jack USB Hub 2 x USB3.1 Gen1 Type A Female (Blue; 1 x front; 1 x rear) Switches Selected 2 x Pushbutton LEDs On Line /Selected 2 (Orange) USB Link 2 (Green) Audio 2 (Green) Emulation Keyboard / Mouse USB Video 4096 x 2160 at 60Hz Scan Interval 1-99 Seconds (Default: 5 sec.) Power Consumption DC5V:1.78W:50.97BTU Environmental Operating Temperature 0-40°C Storage Temperature -20-60°C Humidity 0-80% RH, Non-condensing Physical Properties Housing Metal, Plastic Weight 0.74 kg ( 1.63 lb ) Dimensions (L x W x H) 21.00 x 8.80 x 5.55 cm
(8.27 x 3.46 x 2.19 in.) Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
Package Includes:
- 1x CS1822 2-Port USB 3.0 4K HDMI KVMP™ Switch
- 2x HDMI 2.0 Cables
- 2x USB 3.0 Cables
- 2x Audio Cables
- 1x Power Adapter
- 1x User Instructions
