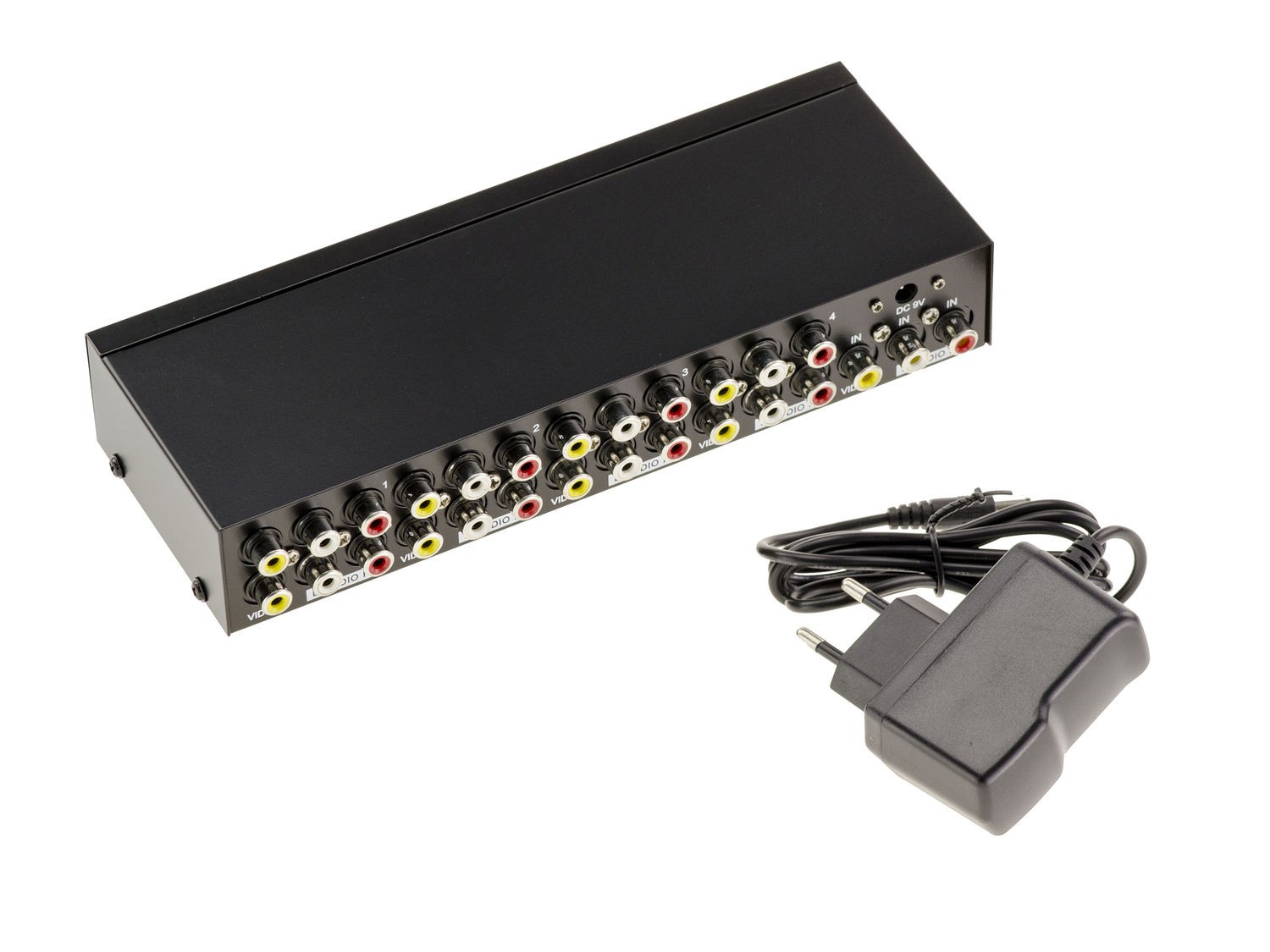

This system allows you to duplicate a sound and/or video source to send it at the same time to 1 to 8 outputs.
Specifications:
1 Input: 1 RCA composite source + 2 RCA sound sources (left channel + right channel).
8 Outputs: each output has 3 RCA, 1 composite + 2 stereo.
The splitter amplifies and balances the received signal to reproduce it on each output identical to the input, so there is no loss of power, signal-to-noise ratio, or resolution regardless of the number of outputs you are going to use.
Frequency band restored 10Hz-20KHz.
Maximum supported resolution 1024x768 at 85Hz in composite.
Entry level 0.8-1.54pp.
Input resistance 75 Ohms.
Direct power supply from 220V mains.
Metal case.
Dimensions: 220 x 85 x 45 mm.
