Please note: This product does not include batteries as they are prohibited items.

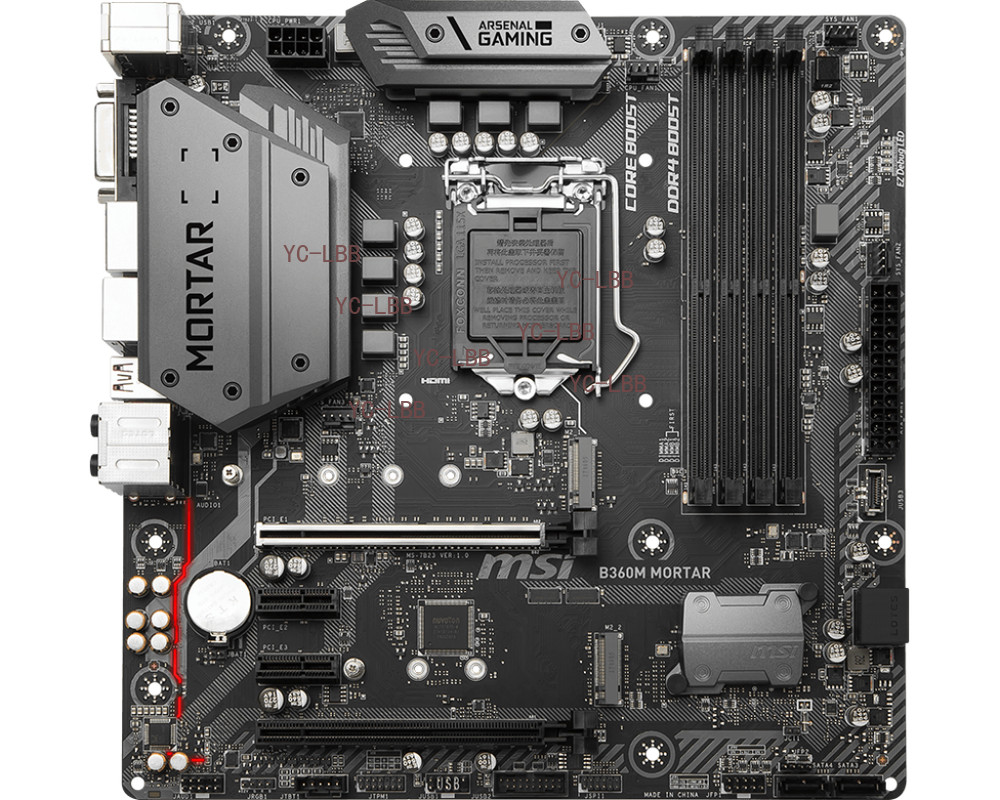

Intel®B360 Chipset

PROCESSOR

CHIPSET

MEMORY

• 4 x DDR4 memory slots, support up to 64GB
  • Supports DDR4 2666/ 2400/ 2133 MHz
• Dual channel memory architecture
• Supports non-ECC UDIMM memorye
• Supports Intel®Extreme Memory Profile (XMP)

1. Please refer to www.msi.com for more information on compatible memory

SLOTS

• 2 x PCIe 3.0 x16 slots (support x16/x4 modes)
• 2 x PCIe 3.0 x1 slots

ONBOARD GRAPHICS

• 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
• 1 x DisplayPort, supports a maximum resolution of 4096X2304@60Hz
• 1 x HDMI™ port, supports a maximum resolution of 4096x2160@30Hz

MULTI-GPU

• Supports 2-Way AMD®CrossFire™ Technology

STORAGE Intel®B360 Chipset

• 4 x SATA 6Gb/s ports
• 2 x M.2 slots (Key M)
  • M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices
  • M2_2 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices**
  • Intel®Optane™ Memory Ready ,supported on M2_2

1. SATA2 port will be unavailable when installing SATA M.2 SSD in M2_1 slot.
2. M2_2 slot will be unavailable when installing a PCIe device in PCI_E4 slot.
3. Before using Intel®Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

USB Intel®B360 Chipset

• 3 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-C and 1 Type-A ports on the back panel, 1 Type-C internal connector)
• 2 x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB connector
• 6 x USB 2.0 (High-speed USB) ports (4 Type-A ports on the back panel, 2 ports available through the internal USB connector)

AUDIO Dual Realtek®ALC892 Codec

• 7.1-Channel High Definition Audio
• Supports S/PDIF output

LAN

• 1 x Intel I219-V Gigabit LAN controller

INTERNAL CONNECTORS

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 4 x SATA 6Gb/s connectors
• 1 x USB 3.1 Gen2 Type-C port
• 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
• 1 x USB 2.0 connector (supports additional 2 USB 2.0 ports)
• 1 x 4-pin CPU fan connector
• 3 x 4-pin system fan connectors
• 1 x Front panel audio connector
• 2 x Front panel connectors
• 1 x 5050 RGB LED strip 12V connector
• 1 x Thunderbolt add-on card connector
• 1 x TPM module connector
• 1 x Chassis Intrusion connector
• 1 x Clear CMOS jumper

BACK PANEL PORTS

1. PS/2 Combo Port
2. DisplayPort
3. LAN Port
4. USB 3.1 Gen2 Type A
5. HD Audio Connectors
6. USB 2.0 Port
7. DVI-D Port
8. HDMI Port
9. USB 2.0 Port
10. USB 3.1 Gen2 Type C
11. Optical S/PDIF OUT

DIMENSIONS

• 9.6 in. x 9.6 in. (24.3 cm x 24.3 cm)
• Micro-ATX Form Factor

MOUNTING

OPERATING SYSTEM

WARRANTY

For the used products, the warranty period provided by the store is 3 months.

Wehavealargeamountofstock, and manyproducts have not been released yet. You can give us your hairstyle number andwecanhelpyou find them. If you need more, please contact us to get abetter price. We will reply your message in 24hours during
--both working days and non-working days;
--both before sales and after sales.
We are always here waiting for your message. If you have any question, just contact us. It is our pleasure to offer any help. We believe good
communicationwillprevent many troubles.
We sincerely hope to provide our customers great products and service. If you are unsatisfied about anything, just tell us, we will solve the problem for you.
Please kindly keep the packing materials until you assure the products are perfectly fit for your car Or machine and you will not return them. Thank you!
We provide true and effecient warranty for our products. During our warranty period, if our products do not work well due to manufactuer's defect, we will resend new replacements for free.1）Reliable and durable products;
2）Excellent R&D ability;
3）Professional technicians and responsible salespersons;
4）Worry-free warranty terms;
5）Fast shipping
Shipping Policy
1.standard to worldwide, the average delivery time is about 7-12 days.
2.If you want expedited shipping, take 3-5 days to arrive
3.There are occasional postal/customs delays, which can add approximately 2-5 days to the delivery time.
4.Import duties, taxes and fees are not included in the price of the item or in the freight, and these costs are the responsibility of the buyer.Returns Policy1.Each item is strictly tested before shipment.
2.We are confident with our item,but we accept 30-days return if there is some problem with the item,which shipping cost is buyer's responsibility to deal with.
3.Your positive response is very important to us, please leave 5 stars response, thanks!Contact us
1.Welcome to contact us if you have any questions.
2.Thanks for your understanding and hope you enjoy your shopping!^.^
