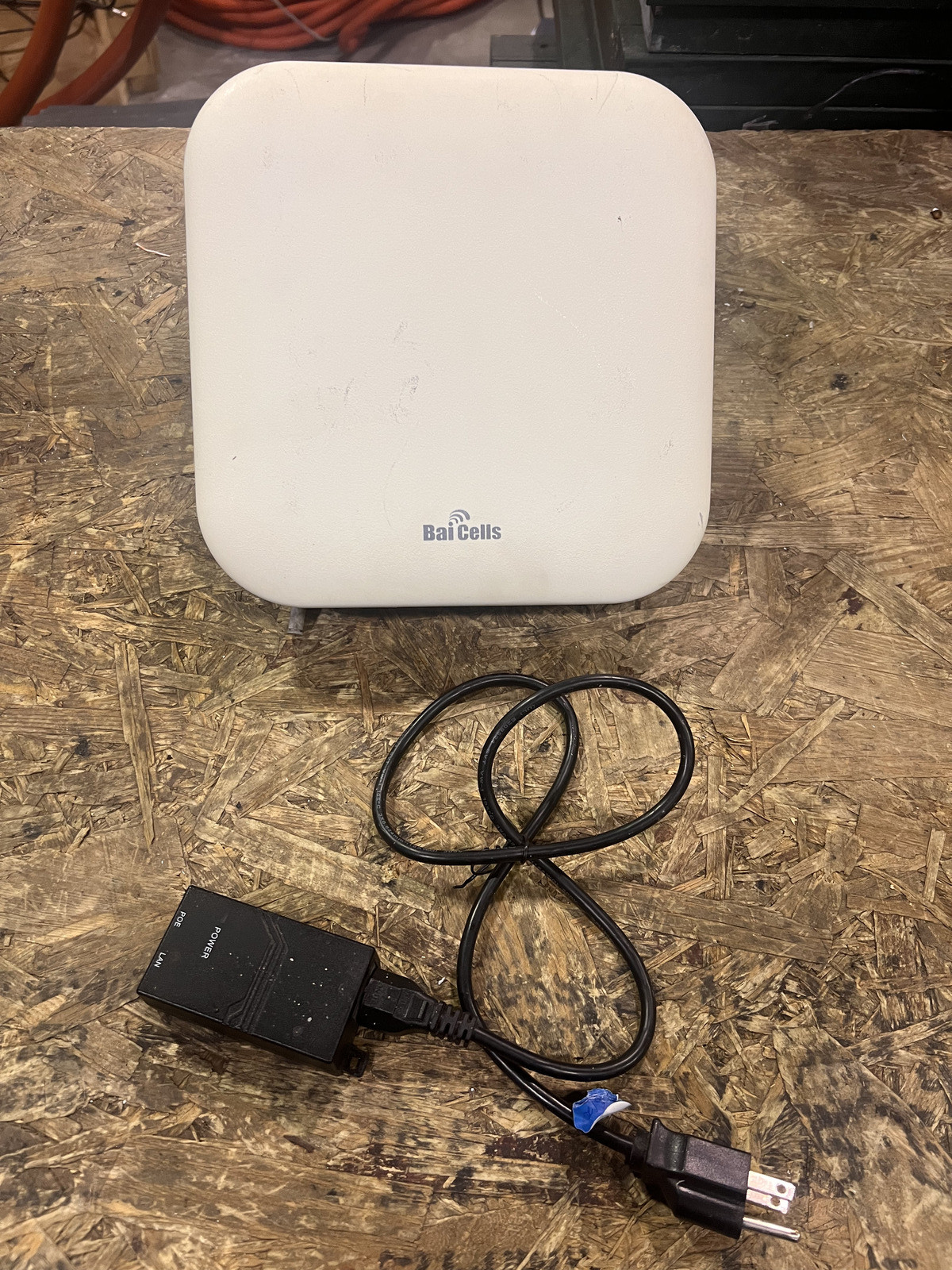

These radios are fully tested and factory defaulted.Includes PoE.BaiCell AntennaModel: EG7035E-M11
The Baicells Atom OD04-19.5 Outdoor Customer Premise Equipment (CPE) provides superior wireless access performance and comprehensive routing capabilities to bring wireless broadband data and voice services to end-users. Wireless and wired devices, including mobile phones, laptops, tablets, and other smart devices, can access the CPE simultaneously.Products Features:

• Supports TDD and FDD LTE network modes
• TDD bands 38, 40, 41, 42, 43, 48
• FDD band 7
• Complies with 3GPP Release 9 CAT4 standards
• 100 Mbps Ethernet interface
• Convenient, simple, GUI-based local and remote Web management
• Built-in LTE bipolar directional high-gain antenna
• TR069 network management protocol
• Cell lock, SIM lock, and Pin lockUser-friendly LED indicators
• Power supply with PoE
• Pole or wall mount
• Wi-Fi assisted alignment

Basic Specifications

LTE Standard: 3GPP Release 9

• Ethernet LAN Port: One RJ-45 port 10/100 auto-sensing, auto-MDX, PoE
• LED Indicators: MIU/LTE/SIM/LAN/PWR/LTE SIGNAL
• USIM: 1.8V/3V 2FF
• Restore Button: Tactile button. Press the button for at least 10 seconds to restore the CPE to its factory settings
• Power Supply: Input: Universal range 100V~240V AC, Output: PoE (24VDC, 0.5A)
• Dimensions: About 9.8 in (H) x 9.8 in (W) x 3.2 in (D) About 248mm * 248mm * 80mm
• Weight: About 4 lbs (1800 g)
• Color: Pantone white

RF Specifications

• LTE Mode: TDD / FDD
• Channel Bandwidth: 5 MHz / 10 MHz / 15 MHz / 20 MHz
• MAX Output Power: 23± 2dBm
• TXRX: 1T2R
• Frequency Bands: Bands 42/43
• Peak Rate: FDD DL: 100 Mbps, UL: 50 Mbps, TDD DL: 100 Mbps, UL: 10 Mbps (2:7)
• Modulation: UL: QPSK, 16QAM, DL: QPSK, 16QAM, 64QAM
• Receive Sensitivity: -94 dBm @ QPSK, 20 MHz, 25°C
• Antenna Type: Internal directional
• Antenna Gain: 19.5 dBi @ 3.x GHz, 2 ports, 14 dBi @ 2.x GHz, 2 ports
• Polarization: ±45
• Antenna Efficiency: >70%
• Isolation: ≤-20dB
• VSWR: ≤2.5
• Horizontal Beamwidth (3dB): 35 ±5°@ 2.x GHz, 2 ports , 25 ±5°@ 3.x GHz, 2 ports
• Vertical Beamwidth (3 dB): 35 ±5° @ 2.x GHz, 2 ports, 25 ±5° @ 3.x GHz, 2 ports

SW Specifications

• Network Mode: NAT / Bridge / Tunnel
• IP Protocol: IPv4 / IPv6
• SIM: PIN management, SIM Lock
• Network Connection Management: Auto / Manual
• LTE Scan Mode: Full band scan, frequency lock
• WLAN: • WPS • MSSID isolation • VLAN
• VPN: • L2TP • GRE • PPTP • L2 VxLAN
• NAT: • Port forwarding • Port trigger • DMZ • ALG
• Statistics: LAN Link status, Transmit / Receive traffic, Run time
• Firewall: • IP / MAC / URL filter • Access control • Block port scanner / SYN flood • SPI filter
• Network Management: • TR069 • SNMP
• Diagnostics: • TCP dump • Ping • Trace route
• Maintenance: • Date and time setting • Reboot • Restore factory settings • Restore / back up configuration files • Firmware upgrade locally or OTA
• System Logs: • Operating • Run-time • Filter / select / display / export

Wi-Fi Specificatioins

• Standard: IEEE 802.11 b/g/n
• Channel Bandwidth: 20/40 MHz
• Frequency: 2.4 GHz
• TXRX: 1T1R
• Peak Rate: • 802.11b: 11 Mbps • 802.11g: 54 Mbps • 802.11n: 300 Mbps
• Modulation: DSSS/CCK, OFDM
• Receive Sensitivity: • -64 dBm @ 65 Mbps, typical for 802.11n • -65 dBm @ 54 Mbps, typical for 802.11g • -76 dBm @ 11 Mbps, typical for 802.11b
• Max Output Power: 10 ±3dBm
• Antenna Type: Internal omni
• Antenna Gain: 0dBi

Environmental Specifications

• Operating Temperature: -40°F to 131°F / -40°C to 55°C
• Storage Temperature: -40°F to 158°F / -40°C to 70°C
• Operating Humidity: 5% ~ 95%
• Ingress Protection Rating: IP67
