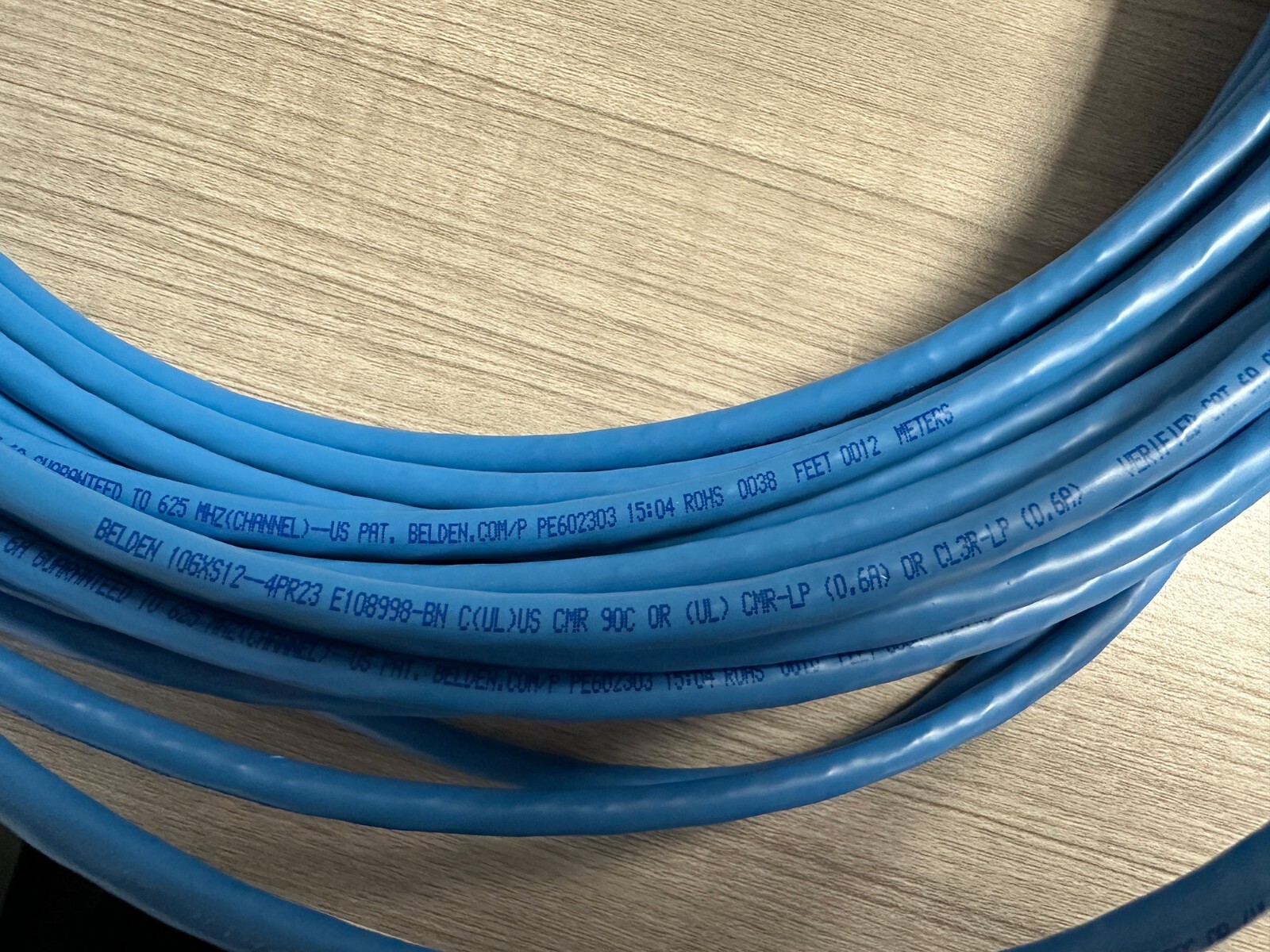

10GXS Category 6A Enhanced Premise Horizontal Cable (625MHz), 4 Pair, 23 AWG Solid Bare Copper Conductors, U/UTP, Riser-CMR, PVC JacketPremise Horizontal Cable, Ethernet up to 10GBASE-T, Wi-Fi 6, Wi-Fi 5, PoE++, PoE+, PoE, Noisy Environments, Data Center EoR and MoR, Network Backbone, HDBaseT, HDBaseT 4K UHDConstruction of Pairs23 AWGSolidBC - Bare Copper4
InsulationMaterialColor CodePO - PolyolefinWhite & Blue, White & Orange, White & Green, White & BrownOuter JacketSeparatorMaterialNom. DiameterRipcordCenter Member (Patented EquiSpline®), EquiBlock™ Barrier TechnologyPVC - Polyvinyl Chloride0.275 in (6.99 mm)Yes
Overall Cable Diameter (Nominal)
0.275 in (6.99 mm)
Electrical CharacteristicsElectricalsMax. Conductor DCRMax. Capacitance Unbalance82 Ohm/km (25 Ohm/1000ft)45 pF/100mDelayFrequencyMax. DelayMax. Delay SkewNom. Velocity of Prop.Typical Delay Skew100 MHz537.6 ns/100m45 ns/100m65%30 ns/100mHigh FrequencyFrequency [MHz]Max. Insertion Loss (Attenuation)Min. PSNEXT [dB]Min. PSACR [dB]Min. PSACRF (PSELFEXT) [dB]Min. RL (Return Loss) [dB]Max./Min. Input Impedance (unFitted) [Ohm]Max./Min. Fitted Impedance [Ohm]Min. PSANEXT [dB]Min. PSAACRF [dB]Min. TCL [dB]Min. ELTCTL [dB]12.1 dB/100m75.373.274.820.0100 ± 15105 ± 1075.077.040.035.043.8 dB/100m66.362.562.823.0100 ± 15100 ± 1575.076.240.023.085.3 dB/100m61.856.556.724.5100 ± 15100 ± 1575.070.140.016.9105.9 dB/100m60.354.454.825.0100 ± 15100 ± 1575.068.240.015.0167.4 dB/100m57.249.850.725.0100 ± 15100 ± 1575.064.138.010.9208.3 dB/100m55.847.548.825.0100 ± 15100 ± 1575.062.237.09.0259.3 dB/100m54.345.046.824.3100 ± 15100 ± 1575.060.236.07.031.2510.4 dB/100m52.942.544.923.6100 ± 15100 ± 1075.058.335.15.162.514.8 dB/100m48.433.638.921.5100 ± 15100 ± 1073.652.332.010018.9 dB/100m45.326.434.820.1100 ± 15100 ± 1070.548.230.020027.0 dB/100m40.813.828.818.0100 ± 22100 ± 1066.042.227.025030.4 dB/100m39.39.026.817.3100 ± 32100 ± 1064.540.226.030033.5 dB/100m38.14.625.316.8100 ± 32100 ± 1063.338.725.235036.3 dB/100m37.10.823.916.3100 ± 32100 ± 1062.337.324.640039.0 dB/100m36.322.815.9100 ± 32100 ± 1061.536.224.045041.5 dB/100m35.521.715.5100 ± 32100 ± 1060.735.123.550043.9 dB/100m34.820.815.2100 ± 32100 ± 1060.034.223.055046.2 dB/100m33.220.014.9100 ± 32100 ± 1059.433.460048.4 dB/100m32.619.214.7100 ± 32100 ± 1058.832.662549.5 dB/100m32.418.914.5100 ± 32100 ± 1058.632.375054.7 dB/100m32.217.314.057.430.786058.9 dB/100m31.316.113.656.529.5VoltageUL Voltage Rating300 V (CMR), 300 V (CL3R)Mechanical CharacteristicsTemperatureUL To +75°C0°C To +50°C-20°C To +75°CBend RadiusStationary Min.Installation Min.1.25 in (31.8 mm)2.75 in (69.9 mm)
Max. Pull Tension
25 lbs (11 kg)
Bulk Cable Weight
35 lbs/1000ft
Standards and Compliance
Environmental Suitability
Riser, Indoor
Sustainability
Product Lens™, Environmental Product Declaration (EPD) Available
Flammability / Reaction to Fire
UL 1666 Riser, FT4, IEC 60332-1-2
CPR Compliance
CPR Euroclass: Eca; CPR UKCA Class: Eca
NEC / UL Compliance
Article 800, CMR, CMR-LP (0.6A), CL3R-LP (0.6A)
CEC / C(UL) Compliance
CMR
ICEA Compliance
S-116-732
IEEE Compliance
IEEE 802.3bt Type 1, Type 2, Type 3, Type 4
NEMA Compliance
ANSI/NEMA WC-66
Data Category
Category 6A
TIA/EIA Compliance
ANSI/TIA-568.2-D Category 6A
ISO/IEC Compliance
ISO/IEC 11801-1, IEC 61156-5
CENELEC Compliance
Segregation class according EN50174-2 = a
European Directive Compliance
EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16
UK Regulation Compliance
UKCA Mark
APAC Compliance
China RoHS II (GB/T 26572-2011)
Plenum Number
10GXS13
