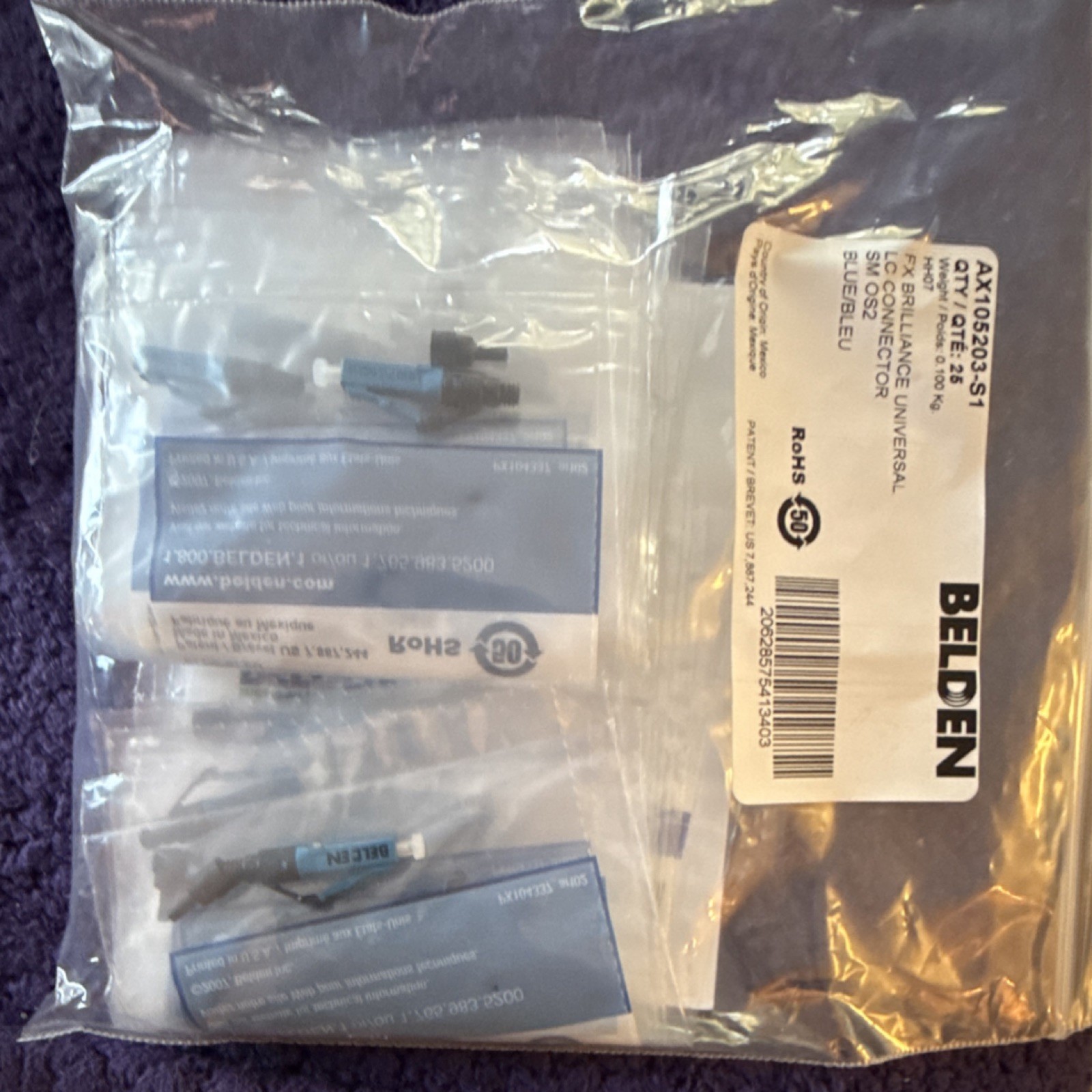

The Belden AX105203-S1 LC Connector SM OS2 Blue/Blue - Bag of 25 FX Brilliance Universal LC Field-Installable singlemode connector for OS2 Connector, blue. Includes 900 um blue boot. Single connector.
Product Description
FX Brilliance Universal LC Field Installable Connector, Single-mode, OS2, Blue Housing, 1/Pack, with support for 250 um (using Breakout kit), 900 um, 2 mm
and 3 mm fiber (using jacketed boots). Includes 900 um boot, other accessories (Breakout Kit & jacketed boots) sold separately.
Technical Specifications
Product Overview
Part Number: AX105203
Environmental Space: Indoor
Suitable Applications: Field-termination of fiber optic cables within Patch Panels, Distribution Frames, Workstation Outlets for FTTD (Fiber to the Desk), drops for FTTH (Fiber to the home)
and MDU (Multiple Dwelling Units).
Construction
Fiber Cable Construction
Fiber Type
OS2
Fiber Type: OS2
Buffer Specification
Fiber Type
OS2
Weight: 0.003 kg
Optical Characteristics
Mechanical Specifications
Test GR-326-CORE/1081-CORE (SM)
Intermateability Requirement Compliant with TIA/EIA-604-3 (FOCIS 3)
Operating Temp Range -40°C to +75°C
Storage Temp Range -40°C to +60°C
Durability 500 cycles, less than 0.2 dB change, FOTP-21
Mechanical Characteristics
Maximum Insertion Loss: 0.50 dB
Typical Insertion Loss: 0.20 dB
Minimum Reflectance @ 1550nm: -30 dB
Termination Style: Mechanical
Interconnection Compatibility: Compliant with TIA/EIA-604-3 (FOCIS 3)
Durabilities@Termination1: 500 cycles, less than 0.2 dB change, FOTP-21
Temperature Range
Operating Temp Range: -40°C to +75°C
Storage Temp Range: -40°C to +60°C
Product MaterialMaterials
Description Material Color
Boot Rubber Black
Protective Ferrule Cap Plastic Opaque
Connector Body Plastic Blue
Ferrule Ceramic
Standards
Telecommunications Standards: TIA 568-C.3
EU Directive 2011/65/EU (ROHS II): Yes
EU RoHS Compliance Date
(yyyy-mm-dd): 2006-07-01
MII Order #39 (China RoHS): EUP 50
Safety Listing: ACA
Additional Notes
Packaging: Individually packaged in a sealed plastic bag. Twenty-five (25) connectors come in a dust and moisture resistant blister package.
Included Parts: 900 µm boot, protective ferrule cap
Related Parts: FX Brilliance Precision Installation Kit, Boots for 2mm and 3mm Jacketed Fiber, 250µm to 900µm break out kits.
Notes: Refer to Installation Guide PX105234 for installation procedures. Fiber can be reterminated up to 5 times with the same connector
