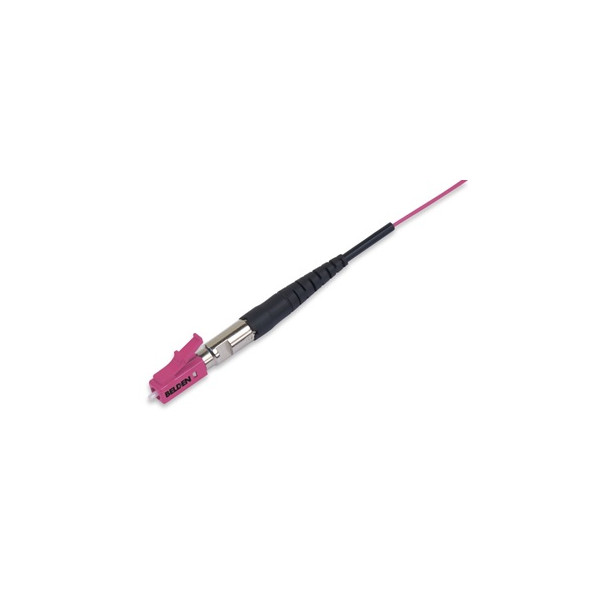

Belden FT4LC900FS01 FX Fusion OM4 LC Simplex 900μm Splice-On Connector Violet Click Thumbnails to EnlargeDESCRIPTION
• Belden FT4LC900FS01FX Fusion Splice-On Connector, OM4, LC Simplex, 900µm Tight Buffer, Erika Violet Housing
APPLICATION
• Field-termination of fiber optic cables within Patch Panels, Distribution Frames, Workstation Outlets for FTTD (Fiber to the Desk), drops for FTTH (Fiber to the home) and MDU (Multiple Dwelling Units).
PRODUCT SPECIFICATIONSPart NumberFT4LC900FS01Fiber TypeOM4BootMaterial /ColorRubber /BlackProtective Ferrule CapMaterial/ ColorPlastic /OpaqueConnector Front HousingMaterial/ ColorPlastic /Erika VioletConnector Rear HousingMaterial/ ColorNickel plated zinc alloy diecast/ Erika VioletFerruleMaterial/ ColorZirconia-Ceramic/ WhiteIntermateability RequirementFOCIS compliant with latest revision of TIA-604-10 (LC)Durability500 InsertionsCable retention, straight pull0.51 kgCable retention, 90 degree pull0.2 kgFlex0.20 kgTwist0.20 kgTransmission with Applied Load0.7 kgf (0°), 0.47 kgf (90°) & 0.17 kgf (135°)Maximum Insertion Loss0.2 dBMinimum Reflectance-25 dBMinimum Reflectance @ 1550nm-25 dBTermination StyleSplice-OnOperating Temperature Range-40° to 85°CStorage Temperature Range-40° to 75°CIncluded Parts900 µm boot, protective ferrule cap, splice protection sleeveWeight(lbs)0.04
