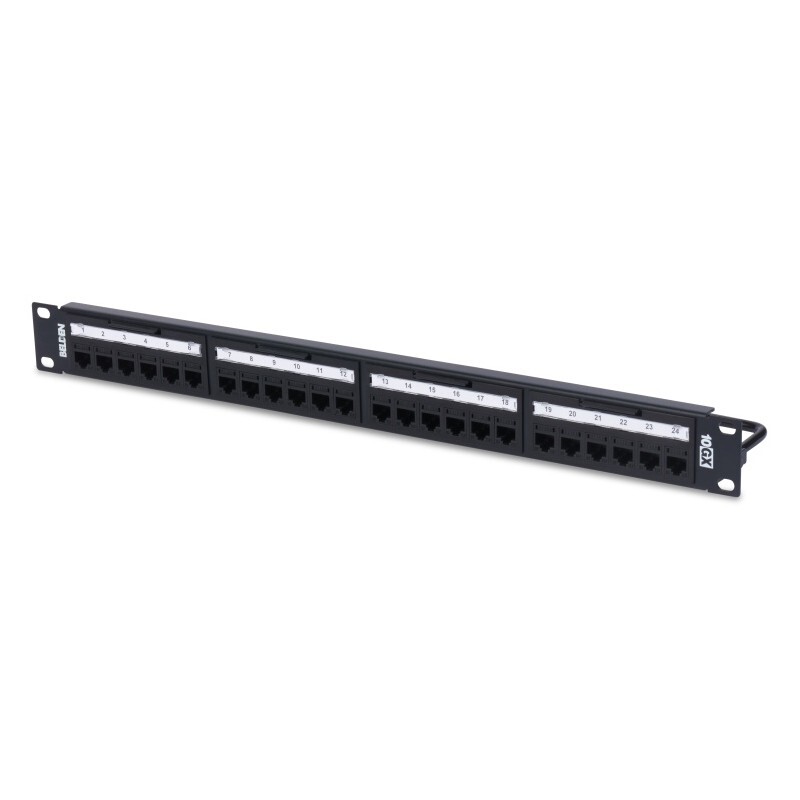

Belden RV6PPF1U24BK 24-Port CAT6+ REVConnect Patch Panel 1U Black Click Thumbnails to EnlargeDESCRIPTION
• Belden RV6PPF1U24BK CAT6+ REVConnect Patch Panel, Flat, 24-Port, 1U, Black (Preloaded - Printed)
APPLICATION
• Suitable Applications: 2400, 3600, 4800 Systems, TIA Category 6, ISO Class E, 1GBASE-T
MATERIAL
• Panel: Steel
• Frame: PC/ABS
• Management Bar: Steel
• Clear Window: Polycarbonate
CONSTRUCTION AND DIMENSIONS
• Maximum Capacity: 24 Connectors (patch panel is pre-loaded)
TEMPERATURE RANGE
• Installation Temperature Range: -10°C to +60°C
• Storage Temperature Range: -40°C to +70°C
• Operating Temperature Range: -10°C to +60°C
MECHANICAL CHARACTERISTICS
• Footprint/Type: KeyConnect
• Tool Compatibility: REVConnect Termination Tool (RVUTT01)
• Plug /Jack Compatibility: RJ45
• Termination Front Connection: Yes
• Termination Rear Connection: Yes
• Cable/Connector Retention: 15 lbs
• Connector/Hardware Retention: 20 lbs
• Plug/Connector Retention: 11.250 lbs
STANDARDS
• UL Rating: UL94V-0
• Data Category: Category 6
• TIA/EIA Compliance: Category 6A - ISO/IEC 11801:2002 Ed.2, TIA 568.2-D
• IEEE Compliance: Power Over Ethernet (PoE) IEEE 802.3 at type 1 and 2 (up to 30W), IEEE 802.3bt/D1.7 type 3 and 4 (up to 100W), CISCO UPOE (up to 60W), Power over HDBaseTTM (up to 100W)
PRODUCT SPECIFICATIONSPart Number RV6PPF1U24BKPort Count24Front ConnectionFlushHeight 1.73 inWidth 19.00 inDepth 2.00 inWeight (lbs) 1.84
