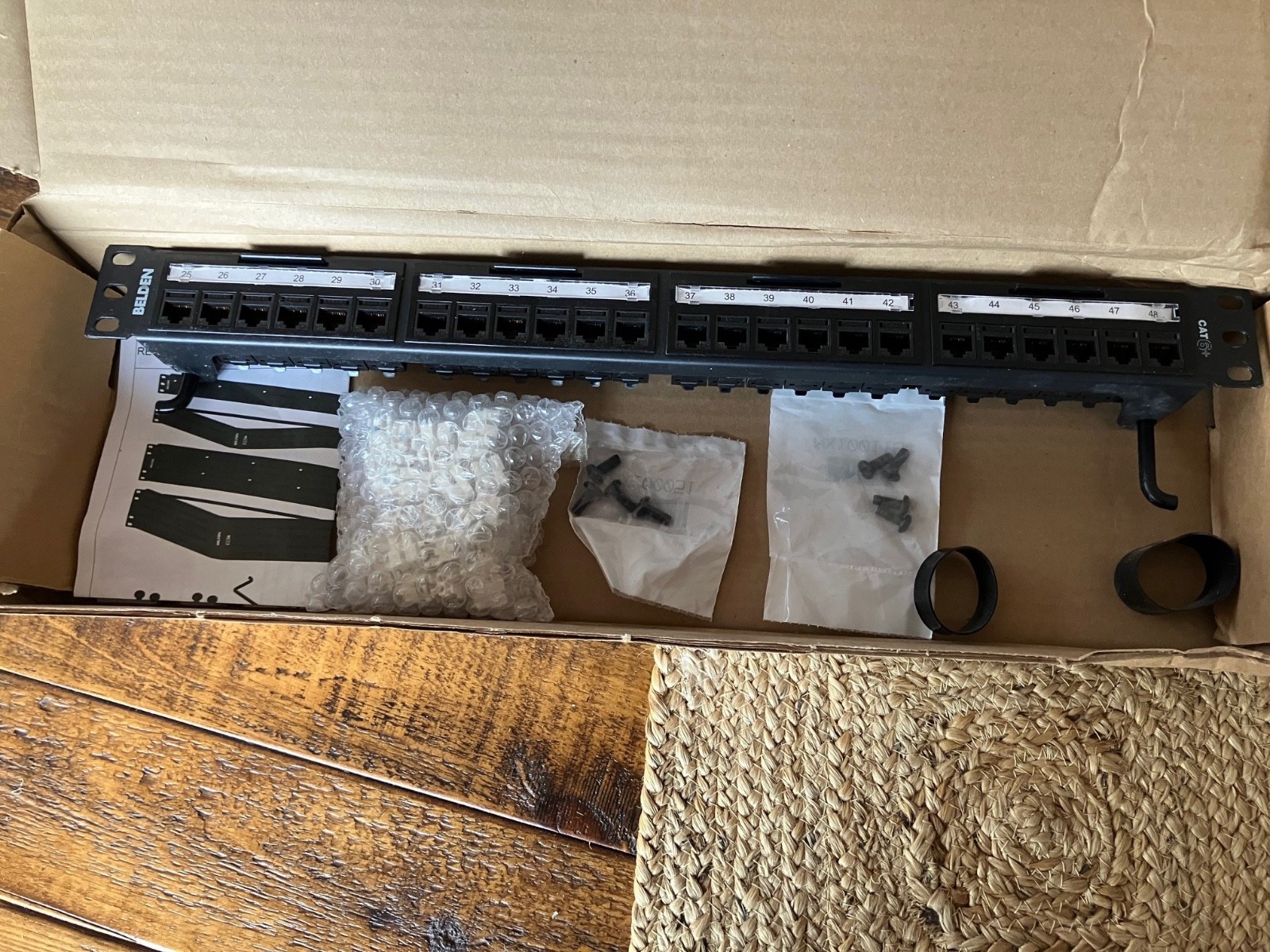

Belden RV6PPF1U24BK CAT6plus REVConnect 1U 24-Port Patch Panel Flat - Black (Preloaded)

BeldenRV6PPF1U24BKis a CAT6+ REVConnect flat 1U 24-port patch panel (preloaded). Suitable for 2400, 3600, 4800 Systems, TIA Category 6, ISO Class E, 1GBASE-T applications.

To support faster deployment in enterprise networks, REVConnect Patch Panels are based on innovative REVConnect termination technology, designed with timesaving features for installers and end-users. The patch panels can be terminated from the rear or front. Removable 6-port modules with a unique cable-measuring
feature keeps cables organized during the termination process and improves cable management. Patch panels can be identified using labels or icons.

• Features:
• Preloaded Panels are fully assembled with 24 or 48 jack housings and REVConnect cores
• Single-port modularity using standard REVConnect jacks
• Cable management bar included (one for 24-port, two for 48-port)
• Pre-printed ID card and labeling window for port identification
• Label sheets (sold separately - AX107527) can be printed using LabelFlex software (optional)
• Available in Category 5e, 6 and 6A, standard black or white (for low-light environments) and flat or angled configurations

• Specifications:
• Height:1.73 in
• Width:19.000 in
• Depth:2.000 in
• Port Count:24 Port
• Front Connection:Flush
• Packaging:Individually packaged in a cardboard box.
• Weight:1.846 lbs
• Max Capacity:24 connectors (preloaded)
• Dielectric Strength:1,000 V RMS @ 60 Hz for 1 minute (Signals to Ground)
• Current Rating:1.300 A
• Insulation Resistance:500 M-Ohm Minimum
• Termination Resistance:2.5 mOhm
• Installation Temp Range:-10°C To +60°C
• Storage Temp Range:-40°C To +70°C
• Operating Temp Range:-10°C To +60°C
• Tool Compatibility:REVConnect Termination Tool (RVUTT01)
• Plug /Jack Compatibility:RJ45
• Cable/Connector Retention:15 lbs
• Connector/Hardware Retention:20 lbs
• Plug/Connector Retention:11.250 lbs
• UL Rating:UL94V-0
• IEC Compliance:IEC 60603-7
• Data Category:Category 6+
• TIA/EIA Compliance:Category 6 - TIA 568.2-D, ISO/IEC 11801-1, TIA TSB-5021
• IEEE Compliance:Power Over Ethernet (PoE) IEEE 802.3at type 1 and 2 (up to 30W), IEEE802.3bt/D1.7 type 3 and 4 (up to 100W), CISCO UPOE (up to 60W), Power over HDBase TTM (up
• to 100W)
• Other Compliance:UL 1863, ANSI/TIA 1096-A (formely FCC Part 68-F)
• Environmental Space:Indoor
• EU Directive 2011/65/EU (ROHS II):Yes
• MII Order #39 (China RoHS):EUP 50
• Safety Listing:c(UL)us Listed

• Item Includes:
• RV6PPF1U24BK REVConnect 1U 24-Port Patch Panel Flat - Black (Preloaded)
