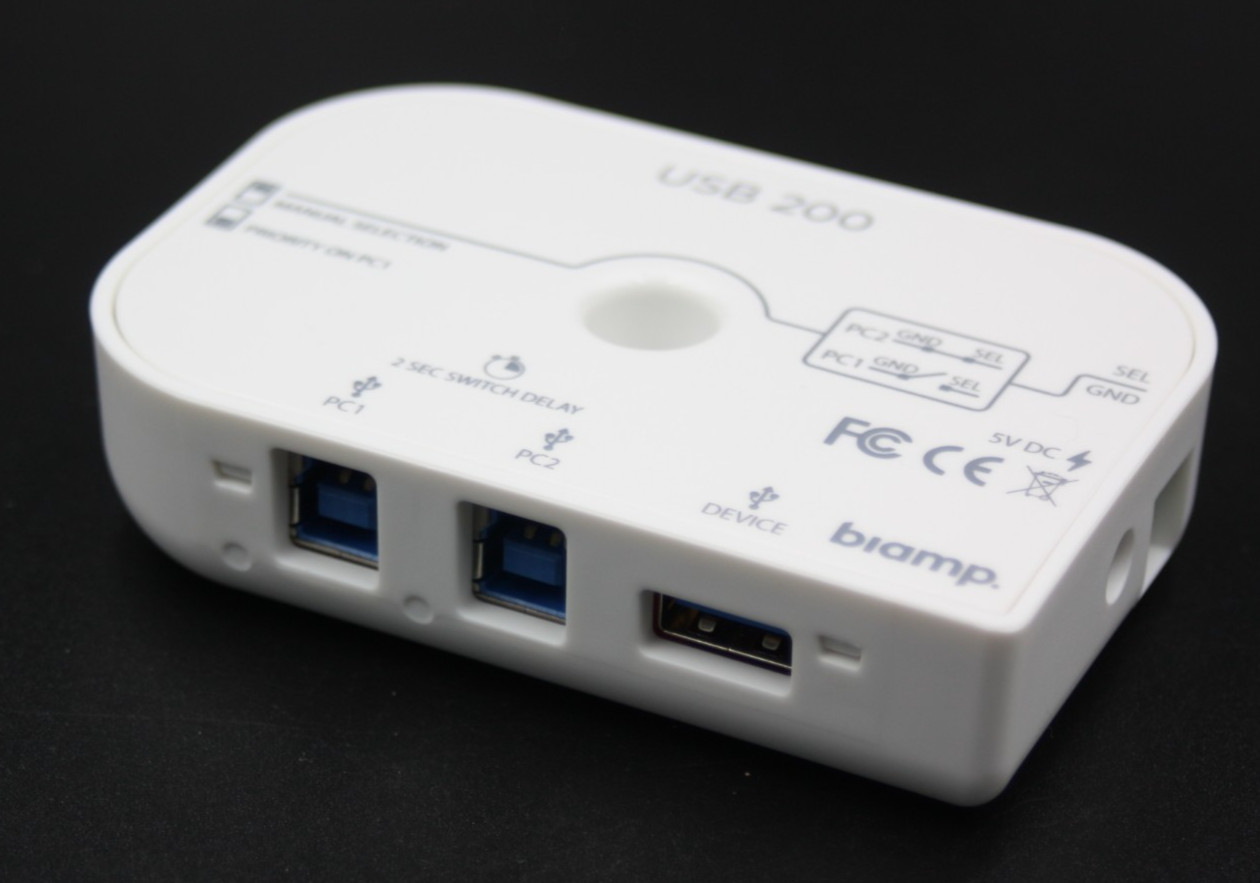

Biamp USB 200 – Professional 2x1 USB 3.0 / 2.0 Host Switcher with Integrated Extender (PN: 912.1882.900)

Add seamless BYOD (Bring Your Own Device) capability to conference rooms, boardrooms, and hybrid classrooms. The Biamp USB 200 is an enterprise-grade USB switcher designed to share USB peripherals—such as PTZ conference cameras, all-in-one video bars, microphones, and interactive displays—between a dedicated in-room PC and a guest laptop.

Engineered specifically for professional AV installations, it solves common conferencing transition glitches with intelligent priority detection, contact-closure switching, and a dedicated power reset delay.

Key Features & Benefits

• Dual-Host USB Switching: Seamlessly route USB peripherals between two host computers (e.g., Room PC and Laptop).
• High-Speed USB 3.0 & 2.0 Support: Full compatibility with bandwidth-demanding conference peripherals, including 4K PTZ cameras, soundbars, interactive whiteboards, and USB 3.0 hubs.
• Intelligent Auto-Priority & Manual Switching:
  • Priority Mode (Auto): Automatically senses when a guest connects their laptop to PC1 and switches instantly; switches back to the room PC when disconnected.
  • Manual / Control System Mode: Trigger switching via dry contact closure (SEL / GND terminals) using pushbuttons, wall plates, or control systems (Biamp, Extron, Crestron, AMX, Q-SYS).
• 2-Second Power Disconnect Delay: Momentarily cuts the 5V VBUS power rail during source transitions. This forces connected webcams and USB devices to perform a clean hardware reset and re-enumerate immediately without computer lockups or software crashes.
• Built-in Active USB Extender: Overcomes passive USB length limitations by boosting signals:
  • USB 3.0: Supports runs up to 3 meters (10 ft) on each side.
  • USB 2.0: Supports runs up to 5 meters (17 ft) on each side.
• Discrete Under-Table Mounting: Compact chassis features a central mounting pass-through screw hole and integrated zip-tie slots for clean cable management under conference tables, podiums, or behind wall-mounted displays.

Specifications

• Brand: Biamp
• Model: USB 200
• Part Number: 912.1882.900
• UPC: 810039106655
• Country of Origin: Lithuania
• Host Ports: 2× USB 3.0 Type-B Female (PC1, PC2)
• Peripheral Port: 1× USB 3.0 Type-A Female (Device)
• Control Input: Phoenix / screw terminal interface (SEL / GND)
• Power Requirement: 5V DC, 3.0A (barrel connector)
• Certifications: CE, FCC, RoHS, TAA Compliant

Package Contents

• 1× Biamp USB 200 Switch (Serial: 88003724)
• 1× Original Biamp 5V 3.0A (15W) AC Power Adapter (EU 2-pin plug)
• 1× Biamp USB 200 Installation & Operation Quick Guide
• 1× Biamp Safety, Compliance & Warranty Guide
• Original Factory Packaging Box
