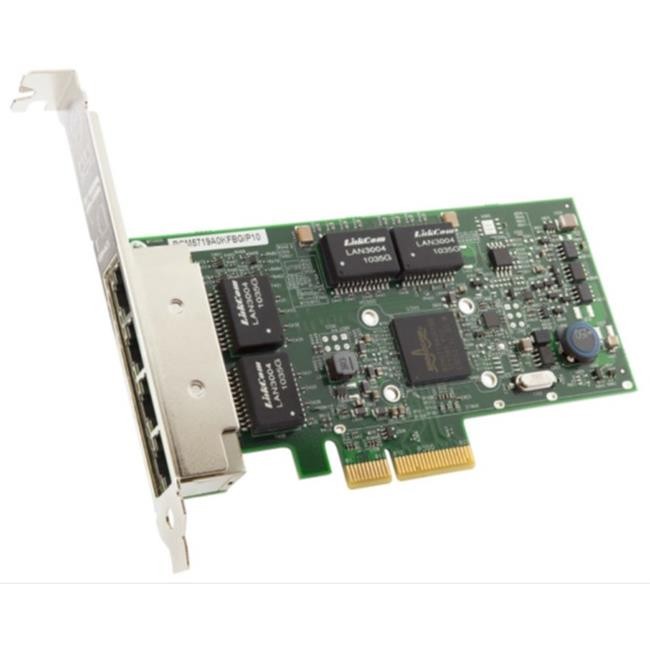

Broadcom BCM5719-4P - 4 x 1GbE PCIe NIC BCM95719A1904AC Broadcom BCM5719-4P - 4 x 1GbE PCIe NIC BCM95719A1904AC
International Customers: All electronic products are packaged for sale in the US with US voltage.
Operating System Compatibility:
SUSE Linux Enterprise Server (SLES)
Ubuntu Linux
Windows Server
VMware ESXi
Oracle class=specbox>Network
Data Center
Device Supported: Server
Product Description
This item is brand-new, factory sealed.
Designed for today's enterprise and data center environments, Broadcom's NetXtreme 1G Ethernet Adapters are the ideal solution for multicore servers, delivering full line-rate throughput across all ports.
The BCM5719 PCIe NIC is a 13th-generation 10/100/1000BASE-T and 10/100/1000BASE-X Ethernet LAN controller solution for high-performance server and networking applications. The host interface supports a separate PCI Express function for each LAN interface. The BCM5719 includes I/O Virtualization (IOV) features such as 17 receive and 16 transmit queues, and 17 MSI-X vectors with flexible vector-to-queue association. These IOV features enable the BCM5719 to support VMWare NetQueue and Microsoft VMQ technologies.
The BCM5719 includes a comprehensive set of hardware features that the system may use to implement IEEE 1588 or IEEE 802.1AS-based time synchronization. These hardware features include a high-precision clock, timestamp registers for receive/transmit packets, and programmable trigger inputs and watchdog outputs. Adapter Type
PCIe NIC ASIC
BCM5719 Connectors
1GBASE-T OS Support
CentOS, Debian, Microsoft Windows, Oracle Linux, Oracle Solaris, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Ubuntu, VMware, VMware ESX, VMware vSphere, Windows Hyper-V, Windows Server Host Connector
PCIe 2.0 x4 Link-Speeds
1GbE/100Mb/1Mb Multi-Host
No NPAR
No Ports
4 RoCEv2
No TruFlowTM
No TruManageTM
YesItem Dimension (L inchxW inchxH inch)
6 x 3 x 1
Weight
1.00 lb
Warranty Information
NA SpecificationPhysical CharacteristicsForm FactorPlug-in CardInterfaces/PortsTotal Number of Ports4Host InterfacePCI Express 2.0 x4General InformationBrand NameBroadcomProduct TypeGigabit Ethernet CardProduct NameBCM5719-4P - 4 x 1GbE PCIe NICManufacturerBroadcom CorporationManufacturer Part NumberBCM95719A1904ACMedia & PerformanceMaximum Data Transfer Rate1 Gbit/sMedia Type SupportedTwisted PairTitleProduct TitleBroadcom BCM5719-4P - 4 x 1GbE PCIe NIC (BCM95719A1904AC)Network & CommunicationNetwork Technology10/100/1000Base-TTechnical InformationChipset ManufacturerBroadcomChipset Model5719Features
- PXE Support
- Wake on LAN (WOL)
- Extended Message-Signaled Interrupts Datagram Protocol (UDP)
- Large Send Offload (LSO)
- TCP Segmentation Offload (TSO)
- Receive Side Scaling (RSS)
- Transmit Side Scaling (TSS)
- VLAN Tagging
- VLAN Support
