No. of channels: 1(poe in) into 4(poe out) pass through data rates: 10/100/1000 mbps half/full duplex connectors: Shielded rj-45, eia 568a and 568b network cables: shielded category 5 (or higher) dimensions: 5.95x4.95x1.2(in) mounting: Wall of shelf environment: indoor or outdoor waterproof： IP65 waterproof operating ambient temperature:-10 to 55 ℃ operating humidity: maximum 90%, non-condensing storage temperature: -30 to 70 ℃ storage humidity: Maximum 95%, non-condensing regulatory compliance: ieee 802.3af (15.4w) IEEE 802.3at (30w) ieee802.3at 4pairs(60w)802.3bt

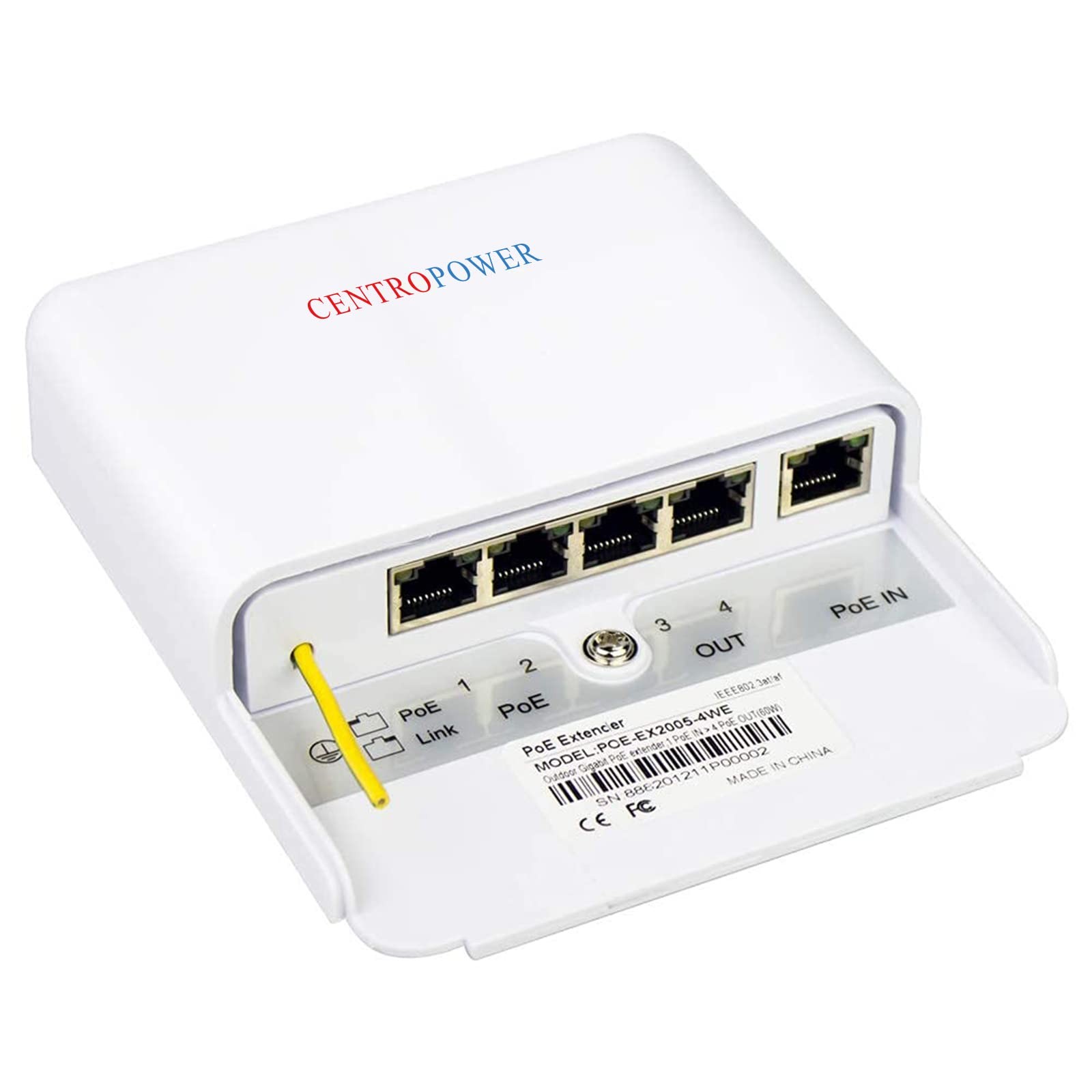

Ports and Support: Gigabit outdoor waterproof 5 port poe switch extender 4 ports gigabit poe+1g uplink+1 rj45 port supports 10/100/1000 ethernet connections and comply with ieee 802.3at/af power over
Application: Equipment with 4 gigabit poe ports up to 30w per poe port for powering poe enabled devices, total power budget 60w. Please note: not support passive 24v PoE
IP65 Waterproof & Built-in Surge Protection: Simple and elegant white housing design, integrated top cover, pc/abs high polymer material, extraordinary toughness, waterproof indoor and outdoor full-time, make sure the switch can be used in the bad weather. 6kv lightning protection, short-circuit protection, over-temperature protection, over-current protection
Flexible and Durable: Plug-and-play & flexible deployment no software or configuration required and designed for wall-mounted or pole-mounted flexible deployment, unmanaged, fan-less, durable casing
PoE Extender: No additional power supply is required plug-and-play simple set up, extends the range of poe and ethernet an additional 100 meters
Instructions for Using the PoE Function: Be sure to use a switch with poe function to supply power to the extender, otherwise the poe extender cannot output power
Technical Specifications: Supports shielded rj-45 connectors with eia 568a and 568b network cables, operates at temperatures from -10 to 55 degrees celsius, and complies with ieee 802.3af, 802.3at, and 802.3bt standards
