CUDY IG1008S2 Industrial Gigabit Switch 8-Port RJ45, 2-Port SFPThe description of this item has been automatically translated. If you have any questions, please feel free to contact us.

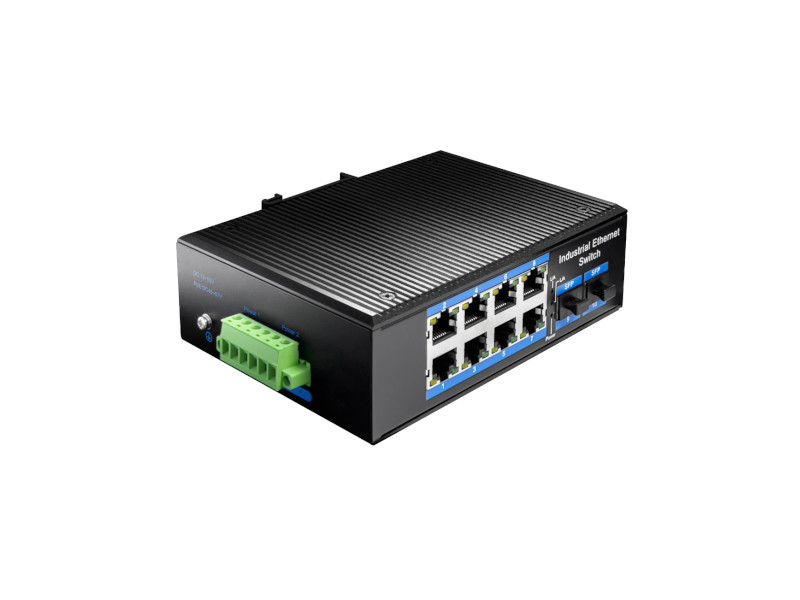

CUDY IG1008S2 - Aluminum industrial switch with 8 gigabit ports +2 SFP ports

Dual power supply

This industrial Ethernet switch supports dual redundant power supply. Each of the power supplies will have the ability to power the device on its own. This ensures that the switch can operate normally even if a power supply fails.

Note: This product does not include a power adapter.

Wide temperature operation

IG1008S2 industrial Ethernet switches are designed with wide temperature support to ensure reliable operation in extreme temperatures ranging from -40ºC to 85ºC.

IP40 protection

The 8-port unmanaged industrial Ethernet switch adopts heavy-duty IP40 protective casing, industrial EMC design to increase the reliability of communication network.

Main features:

• 8 Gigabit ports and 2 SFP ports

• Multimode up to 2 km

• Singlemode up to 20km/40km/60km/80km

• IP40 aluminum housing

• Supports 6KV DC Ethernet ESD protection

• Support 6KV DC EFT protection for power line

• Free fall, stability against impacts and vibrations

• DIN rail design

• Packet Buffer Memory:2Mbit
  Packet Forwarding Rate:15Mpps
  MAC Address Table: 8KInstallationDIN railMaximum Frame Size9000bytes packet sizeFlow ControlBack pressure for half duplex, IEEE 802.3x pause frame for full duplexEnclosureIP40 aluminum housingLED IndicatorPower: Network
  Fiber: Link 2(Green)
  Ethernet: YellowPower Input12 to 52V DC redundant power (Note: This product does not include a power adapter.)Power Consumption< 3 wattsProtection emerges±4KVNetwork ProtocolsIEEE802.3 10BASE-T;
  IEEE802.3i 10Base-T;
  IEEE802.3u 100Base-TX/FX;
  IEEE802.3ab 1000Base-T;
  IEEE802.3z 1000Base-X;
  IEEE802.3xNetwork cables10BASE-T: Cat3, 4, 5 UTP (≤100 meter)
  100BASE-TX: Cat 5 or later UTP (≤10meter)
  1000BASE-TX: Cat 6 or later UTP (≤100 meter)MTBF>300,000hoursDimensions (W x D x H)143.7 x 103 x 44.2mmWeightProduct Weight: 0.56KG Packing Weight: 0.66KGWorking EnvironmentWorking temperature: -40～85℃ ;
  Storage temperature: -40～85℃
  Relative Humidity: 5%~95%(no condensation)
