QUALITY OF SERVICE
A powerful multi-level prioritization process that can be configured by the network operator to allow the delivery of differentiated services.
SECURITY
128-bit AES encryption, L2 and L3 firewall rules, support for different user levels, HTTP / SSH support provides improved security.
FLEXIBLE OPERATION MODES
Provides extremely low latency for PTP deployments, highly scalable model without GPS sync, and TDD operation for sync towers
NEW CHANNEL SIZE AND MODULATION
Supports configuration of channel sizes from 20 MHz to 80 MHz and modulates up to 256 QAM
BUILT-IN REAL-TIME SPECTRUM ANALYZER
Supports constant monitoring of the radio spectrum and enables live-action without pulling the link.
Main functions
- Port Gigabit Ethernet
- Allows PoE Cambium and Standard PoE (30Vdc)
- Includes PoE
- Includes tilting hardware

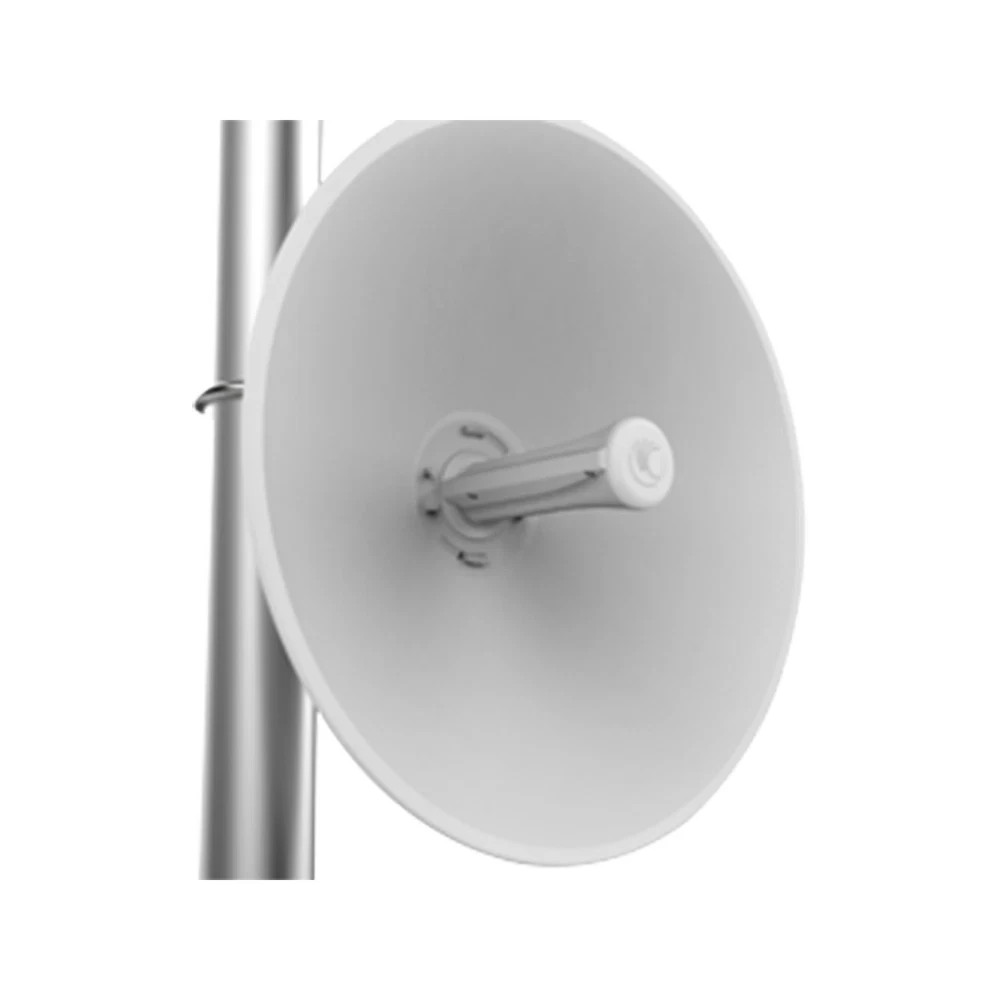

- Built-in parabolic antenna: 25 dBi
- 100,000 PPS maximum performance for voice and video applications
MIMO and modulation2x2 MIMO/OFDMFrequency range5.150 – 5.970 GHz (defined by country where it operates)Max output power0 to +27 dBGain25 dBiMax power consumption12 WattsOutdoor protectionIP55ManagementHTTPs, SSH, SNMPv2cChannel spacingConfigurable in increments of 5 MHzMAC LayerCambium ProprietaryEthernet structure10/100/1000BaseT, rate auto negotiated Cambium PoE or Standard PoEUsed protocolsIPv4, UDP, TCP, IP, ICMP, SSH, SNMPv2c, HTTPs, STP, SSH, IGMP SnoopingVLAN802.1Q with 802.1p priorityInput voltage30 V (PoE included)Encryptation128-bit AES (CCMP mode)Antenna typebuilt-in parabolic with mountingChannel width(1x20,1x40,1x80 Mhz)
