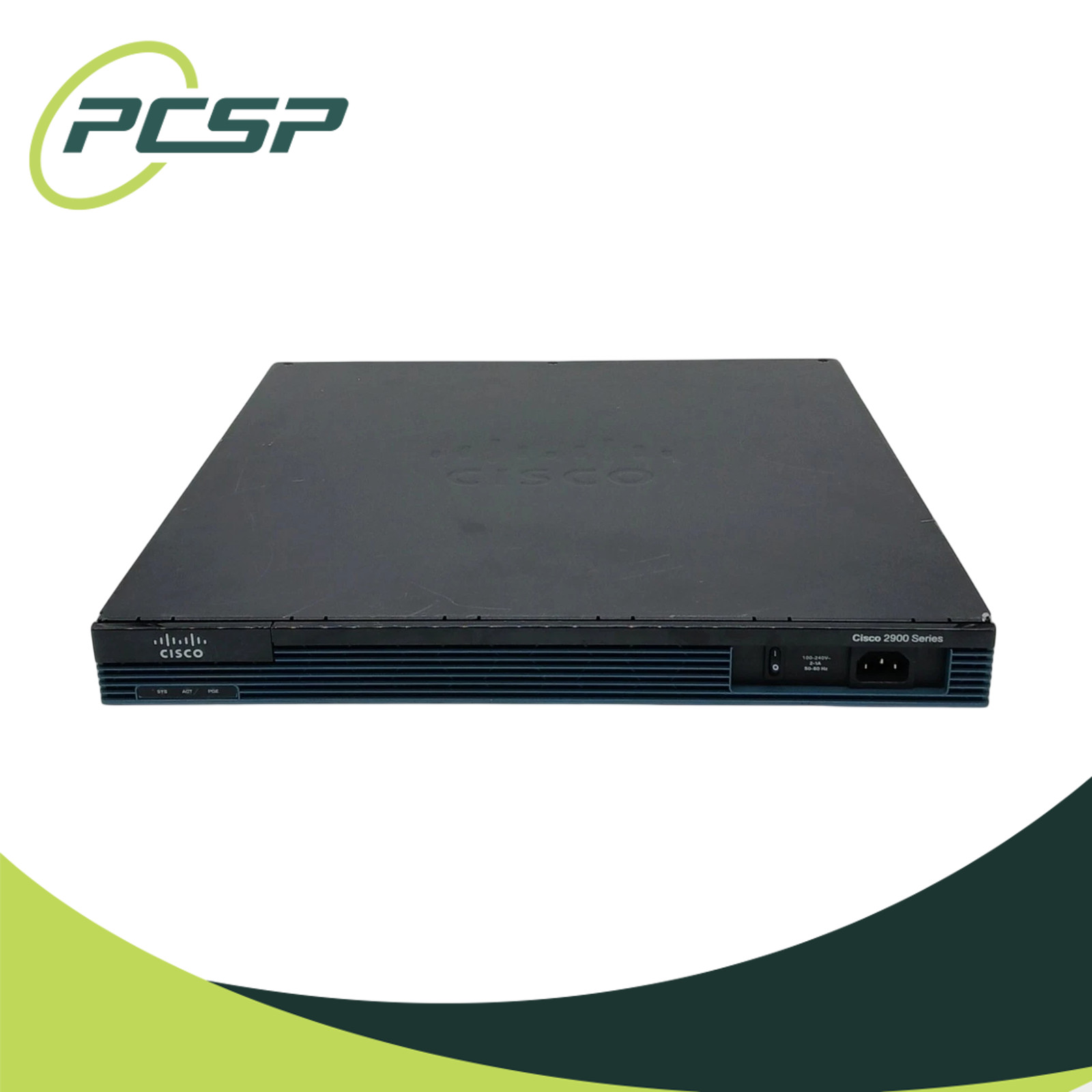

Cisco 2901 CISCO2901/K9 Router w/ HWIC-16A & EHWIC-1GE-SFP-CU Gigabit ISR For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

Cisco 2901 CISCO2901/K9 Router w/ HWIC-16A & EHWIC-1GE-SFP-CU Gigabit ISR

Price: US $74.99

View Listings
Build to Order
About Us
response
Contact Us

Categories

Build Your Own
Servers
Workstations
Graphics Cards
Networking
Hard Drives
CPU's
Memory
Desktops
Motherboards
Daytrader PCs
CAD PCs
Cards and Controllers
Power Supply
Server Sales
Other

Cisco 2901 CISCO2901/K9 Router w/ HWIC-16A & EHWIC-1GE-SFP-CU Gigabit ISR
Click Thumbnails to Enlarge Specifications Server TypeLot QuantityWarranty30 daysBrandCISCOManufacturer Part Number2901/K9IdentifierSeries2900 SeriesModel Number2901Form Factor1UFormBracket SizeNetwork Interface2x 10/100/1000 GBs RJ-45InterfaceWatts150WChassisBatteryAC AdapterMotherboard SupportExpansion Slots4x EHWIC SlotsDimms per ChannelSocketProcessorProcessors InstalledProcessor SpeedSpeed10/100/1000 Mbps EthernetProcessor Max Speed (Turbo Boost)CPU BrandProcessor CoresNumber of ThreadsHyper ThreadingCache Per ProcessorProcessor Main FeaturesCPU InstalledCompatible RAMFSBCPU CacheCPU Cooling SystemCPU Cooling System BrandCPU Cooling System DetailsNumber of FansIntegratedFan ModelFan SupportFan SpeedFan AirflowFan NoiseMemory (RAM)Memory SizeRAM DetailsRAM TypeRAM TypeRAM SpeedRam SpeedMaximum RAMRAM BrandRAM/RankRankModule TypeModule QTYECC/FFSpeed & ECCRAM Installed1.8" Drive Bays2.5" Drive Bays3.5" Drive BaysM.2 SlotsStorageHDDHDD InstalledSSDSSD InstalledStorage TypeStorage CapacityHard Disk Rotational SpeedRead SpeedStorage CacheSector SizeHard Drive TraysDrive BlanksIn trayGraphics CardGraphics CoprocessorGraphics Card BrandGraphics Card SeriesGraphics Card MemoryGraphics Card Memory TypeGraphics Card Clock SpeedGraphics Card Boost Clock SpeedGraphics Card CUDA CoresGraphics Card Memory Bus WidthGraphics Card InterfaceGraphics Card Video OutputsPower ConnectorsAC 100-240 VACGPU InstalledCacheTransfer RatePower SupplyInternal AC: Optional AC PoE PSUPSU TypePSU BrandCiscoPSU QTY1PSU Form FactorInternalPSU Features100-240 VACPSU InstalledYesOperating SystemCisco IOSSoftwareSoftware FeaturesCOABattery InstalledBluetooth InstalledCabling InstalledCamera InstalledMedia Drive InstalledHeatsinks InstalledRAID ControllerRaid InstalledNetwork Controller2x RJ-45Rail KitNoBezelOptical DriveSpecial FeaturesPackage ContentsOnboard GPUBluetoothWifi InstalledWLANLAN SpeedCase MaterialColorsDrive BaysMaximum CPUsMax CPU'sNumber of Memory SlotsDIMM SlotsMemory ChannelsI/O SlotsPorts5x RJ45 1x SFP 16x RS-232 2x USB 1x Mini-USB 1 AUXFront USBFront Audio PortsRear USBRear Audio PortsVideo PortsRJ45Power ConsumptionKeyboardMouseMonitorRefresh RateScreen SizeEars IncludedNoFeature SetsFixed UplinksN/ATotal 10/100/1000 Ethernet Ports2Available PoE PowerOptionalSwitching CapacityStacking BandwidthTotal number of MAC addressesTotal number of IPv4 routesFNF entriesDRAM512MB DDR2 ECCFlash256MBVLAN IDsIEEE 802.1QTotal switched virtual interfaces (SVIs)Jumbo frameTotal routed ports per stackN/ANumber of access points per switch/stackNumber of wireless clients per switchTotal number of WLANs per switchWireless bandwidth per switchSupported Aironet access point seriesForwarding RateECC/FFScalabilityCountry of OriginPCSP SKUNSB 290100 Extended Warranty for this listing:Click Here Our other items:Click Here Product Description

Cisco CISCO2901/K9 2901 Integrated Services Router with HWIC-16A & EHWIC-1GE-SFP-CU

This Cisco 2901 Integrated Services Router is configured with a Cisco HWIC-16A 16-Port Asynchronous Serial Interface Card and a Cisco EHWIC-1GE-SFP-CU Gigabit Ethernet expansion card. This configuration combines routing, Gigabit Ethernet, fiber/copper expansion, and high-density asynchronous serial connectivity in a single 1U platform.

The Cisco 2901 provides two integrated Gigabit Ethernet interfaces and four EHWIC expansion slots. The installed HWIC-16A adds sixteen asynchronous EIA-232 interfaces for applications such as terminal server and remote console access. The installed EHWIC-1GE-SFP-CU adds a dual-purpose Gigabit Ethernet interface supporting either copper RJ45 or compatible SFP connectivity.

Manufacturer: Cisco

Model: Cisco 2901

Part Number: CISCO2901/K9

Product Type: Integrated Services Router

Form Factor: 1U Rackmount

Integrated Ethernet: 2x 10/100/1000 Gigabit Ethernet

Expansion Slots: 4x EHWIC

Installed Expansion Card #1: Cisco HWIC-16A

Installed Expansion Card #2: Cisco EHWIC-1GE-SFP-CU

Key Features

Cisco 2901 Integrated Services Router
CISCO2901/K9 configuration
1U rackmount chassis
2x integrated 10/100/1000 Gigabit Ethernet ports
4x EHWIC expansion slots
1x ISM internal expansion slot
2x PVDM3 DSP slots
Cisco IOS platform
HWIC, WIC, VIC, and supported VWIC expansion capability
Installed HWIC-16A 16-port asynchronous serial card
Installed EHWIC-1GE-SFP-CU Gigabit Ethernet expansion card

Cisco HWIC-16A Expansion Card

16-port asynchronous serial High-Speed WAN Interface Card
16x asynchronous EIA-232 interfaces
DTE operation
Up to 230.4Kbps asynchronous data rate per port
Designed for terminal server and remote console applications
Uses high-density connectors for asynchronous serial breakout cables
Compatible with the Cisco 2901 ISR platform

Cisco EHWIC-1GE-SFP-CU Expansion Card

Enhanced High-Speed WAN Interface Card
Dual-purpose Gigabit Ethernet interface
1x copper Gigabit Ethernet RJ45 interface
1x SFP interface
Copper and SFP connections share one logical Gigabit Ethernet interface
Supports compatible Cisco Gigabit Ethernet SFP transceivers
Maximum card throughput up to 800Mbps unidirectional
Maximum card throughput up to 1600Mbps offerirectional
Requires Cisco IOS 15.1(4)M or later for supported operation in the Cisco 2901

Integrated Network Interfaces

2x onboard 10/100/1000BASE-T Gigabit Ethernet interfaces
Additional Gigabit Ethernet connectivity through installed EHWIC-1GE-SFP-CU
RJ45 console interface
USB serial console interface
Auxiliary interface
USB interfaces

Expansion

4x integrated EHWIC slots
Supports up to four single-wide EHWIC modules
Supports up to two double-wide EHWIC modules
EHWIC slots support compatible HWIC, WIC, VIC, and VWIC modules
1x Internal Services Module slot
2x PVDM3 DSP slots

Ideal Applications

Branch Office Routing
Terminal Server Applications
Remote Network Device Console Access
Network Administration Labs
Enterprise WAN Connectivity
Gigabit Ethernet WAN Connectivity
Fiber Network Connectivity
Legacy Serial Device Management
Network Testing and Development

Included

1x Cisco CISCO2901/K9 2901 Integrated Services Router
1x Cisco HWIC-16A 16-Port Asynchronous Serial Expansion Card
1x Cisco EHWIC-1GE-SFP-CU Gigabit Ethernet SFP/Copper Expansion Card

Not Included Unless Specified

CAB-HD8-ASYNC Breakout Cables
SFP Transceiver
Fiber Optic Cable
Ethernet Cables
Console Cable
Rack Rails
Rack Mounting Hardware
Power Cord
Additional Expansion Cards
Additional Accessories

Important Notes

Photos are for reference only.
Only listed items are included.
The HWIC-16A requires compatible asynchronous breakout cables to access its 16 serial interfaces.
The EHWIC-1GE-SFP-CU copper and SFP interfaces are dual-purpose interfaces and do not operate as two independent Gigabit Ethernet ports.
SFP transceiver is not included
Network, fiber, serial, console, and power cables are not included
No accessories are included
Verify compatibility before purchase.
