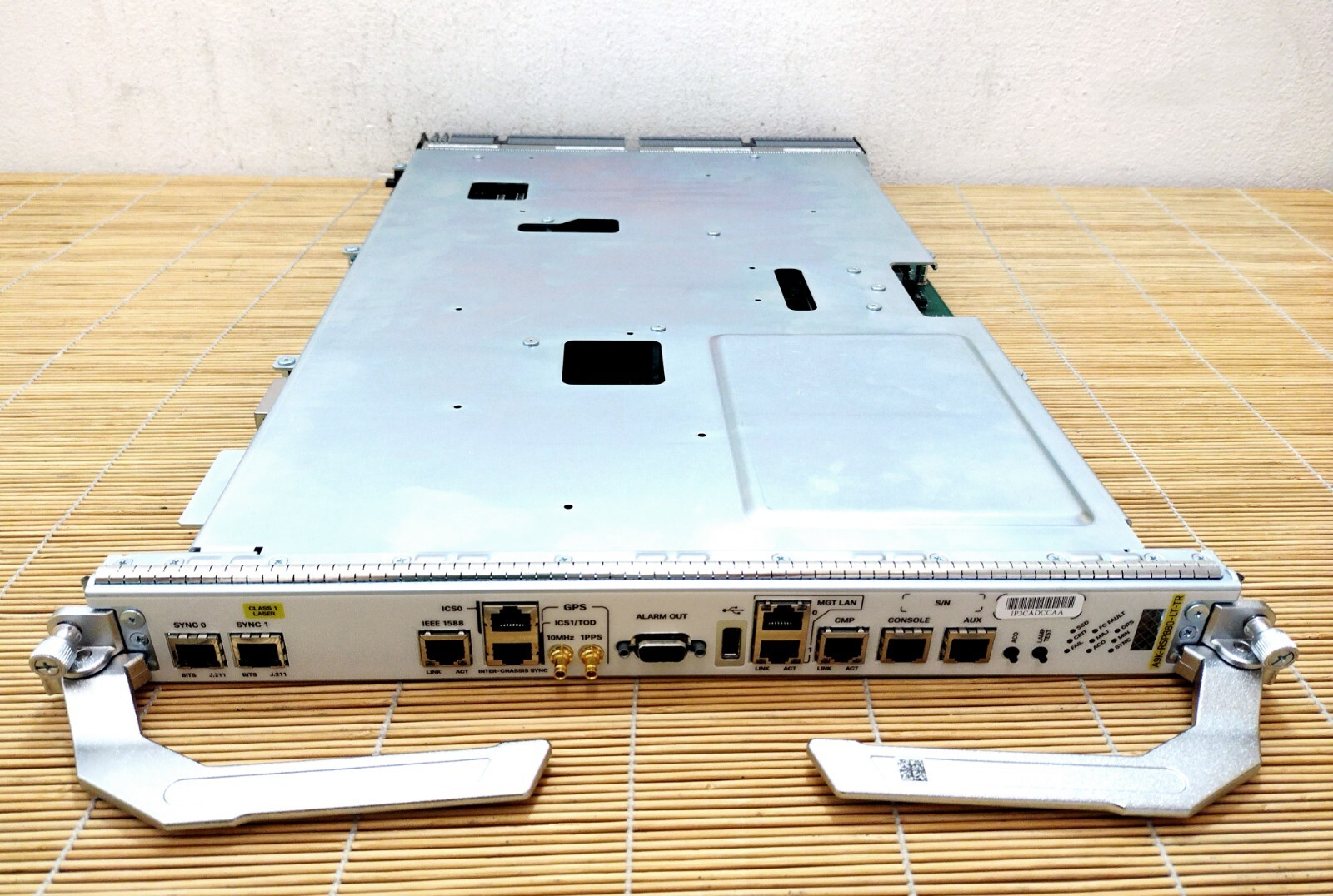

Cisco A9K-RSP880-LT-TRASR 9000 Route Switch Processor 880-LT Packet Transport 16G

/DE/ Auf Anfrage ist die Gewährung eines 7-tägigen Zahlungszieles für gewerbliche EU-Käufer möglich (Kreditwürdigkeit vorausgesetzt).
/EN/ After a creditworthiness check EU-commercial purchaser can pay for this item within 7 days from date of invoice.

WIR GEBEN 3 JAHRE GARANTIE!

Dieses Angebot unterliegt der Differenzbesteuerung nach § 25a UStG. , daher ist die Mehrwertsteuer im Preis inkludiert. Die Umsatzsteuer wird aber in der Rechnung nicht ausgewiesen und kann nicht in Abzug gebracht werden. Wenn Sie auf einer Rechnung mit ausgewiesener Umsatzsteuer bestehen, informieren Sie uns bitte, damit wir ein entsprechendes -Angebot speziell für Sie erstellen können. Das Angebot richtet sich ausschließlich an Personen außerhalb Österreichs und an gewerbliche Käufer in der EU, ist daher Umsatzsteuer FREI! Privatpersonen, wenn die zufällig den Artikel ersteigert haben, erhalten eine Rechnung gemäß § 24 UStG 1994 (Differenzbesteuerung) - Umsatzsteuer-FREI!

Bitte mailen Sie uns sofort nach Auktionsende/Kauf Ihre UID (Umsatzsteuer-Identifikationsnummer), damit wir für Sie eine Netto-Rechnung erstellen können. Sollten Sie als Unternehmer noch keine UID haben, beantragen Sie diese bitte beim Finanzamt oder kontaktieren Sie uns.

The Cisco® ASR 9000 Route Switch Processor 880 (RSP 880) is the system processor for the Cisco ASR 9010 Router, ASR 9006 Router, and ASR 9904 Router. RSP880-LT is the system processor for ASR 9010, ASR 9006, ASR 9904, ASR 9910 Router and ASR9906 Router. It supports high-density 100 Gigabit Ethernet line cards and provides backward compatibility with the Cisco ASR 9000 Series second family of line cards (Figure 1 and Figure 2). The Cisco ASR 9000 RSP 880 system architecture is designed to accommodate new programmable deployment models and convergence of Layer 2 and Layer 3 services, as required by today’s wireline, Data-Center-Interconnect (DCI), and Radio Access Network (RAN) aggregation applications.

The ASR 9000 RSP 880 brings the time-tested and robust carrier-class capabilities of Cisco IOS® XR Software to the Carrier Ethernet edge. The operating system supports true software process modularity. And it allows each process to run in separate protected memory, including each routing protocol, along with multiple instances of control, data, and management planes supported. The software also supports distributed route processing.

The ASR 9000 RSP 880 is designed to deliver the high scalability, performance, and fast convergence required for today’s and tomorrow’s demanding video, cloud, and mobile services. These features provide exceptional scale, service flexibility, and high availability:

- Integrated switch fabric architecture:

- Distributed switch fabric architecture

- Multistage low-latency nonblocking architecture

- Service intelligence and traffic prioritization

- Superior network-timing capabilities with support for:

- Centralized Building Integrated Timing Supply (BITS)

- Precision Time Protocol (PTP), or IEEE 1588-2008, through dedicated 10-Mbps or 100-Mbps Ethernet port

- offerirectional Time of Day (ToD) with 10-MHz and 1-pps interfaces

Route-Switch-Processor types

The ASR 9000 RSP 880 is available in two variants

1. RSP880 - service-edge-optimized and packet-transport-optimized models.

2. RSP880-LT – service-edge-optimized and packet-transport-optimized models.

The service-edge-optimized version offers the higher amount of memory that is essential for large-scale, comprehensive service deployment. Both variants of the route switch processor support service-optimized, as well as transport-optimized, line cards. Different line cards can be mixed on the same chassis, providing maximum design flexibility.

Features and benefits of the ASR 9000 RSP 880

Feature

Benefit

Highly scalable fabric

●Designed to support high 1-, 10-, and 100-Gbps port densities●Provides built-in scalability for investment protection

Fabric capacity

●880 GB non redundant (AS9904, ASR9010 and ASR9006)●440 GB redundant (ASR9904, ASR9010 and ASR9006)●230Gbps per RSP on ASR9910 and ASR9906

Distributed forwarding-plane architecture

Allows line cards to support independent forwarding for enhanced performance andscale

Memoryless switch fabric

Provides transparent nonblocking, low-latency packet forwarding

Virtual output queuing and arbitration

●Offers service intelligence with prioritization of traffic (unicast and multicast)●Provides efficient congestion-management mechanism and avoids problems related to head-of-line blocking

Centralized arbiter

Uses an efficient credit mechanism to help ensure transparent switchover with zero packet loss

IEEE 1588 support

Delivers timing services over the packet network efficiently and reliably

Two independent clock source connections: BITS and Synchronization Supply Unit (SSU) DTI

Offers redundant, centralized network synchronization support

Solid-State Drives (SSDs)

RSP880 provides two 32GB SSD’s while RSP880-LT offers two 128GB SSD which allows storing of core dumps and helps reduce the system Mean Time To Repair (MTTR)

Embedded Universal Series Bus (eUSB) memoryport

Provides access to onboard Universal Serial Bus (USB) flash-memory devices for software image storing and upgrades

Front-panel external USB 2.0 port

Provides access to USB flash-memory devices for quick software image loading andrecovery

Front-panel LEDs

Provides visual indication of route switch processor status (active or standby), power management, and activity on SSD

Management ports

Provides easy access to system console

Processor

RSP880 has 8 cores, 1.9 GHz while RSP880-LT has 4 cores, 2.4Ghz

Technical Specifications for Cisco ASR 9000 RSP 880 and RSP880-LT Hardware

Technical Specifications

Internal Memory

●Control of up to seven Cisco ASR 9000 Series switch fabric cards with RSP880-LT●ASR 9000 RSP 880 for Packet Transport 16G (product number: A9K-RSP880-TR, A9K-RSP880-LT-TR): 16-GB Error-Correcting Code (ECC)-protected DRAM●ASR 9000 RSP 880 for Service Edge 32G (product number: A9K-RSP880-SE, A9K-RSP880-LT-SE): 32-GB ECC-protected DRAM●Solid-state disk: RSP 880 - Two 32-GB SSDs, RSP880-LT – Two 128GB SSD●8-GB embedded USB●USB 2.0 Type A receptacle

Timing System

●Timing: Two independent clock source connections●IEEE 1588 support: Copper 10-Mbps and 100-Mbps RJ-45 Ethernet port

GPS

●ToD (RS-422 and RS-232)●1-pps RS-422 or 1.0/2.3 50-ohm RF connector●10-MHz in/out 1.0/2.3 50-ohm RF connector

Management

●Two 100/1000BASE-T (RJ-45) LAN management ports●One console port●One auxiliary port

Alarms

●Alarm outputs: Critical alarm (CR), major alarm (MJ), and minor alarm (MN)

LEDs

●Amber Alarm Cutoff (ACO) and lamp test●System Synchronization Alarm (SYNC)●GPS●Fabric-card fault indicator●SSD
Cisco IOS XR Software, Version 6.4.2[Default]Copyright (c) 2018 by Cisco Systems, Inc.
ROM: System Bootstrap, Version 17.31(c) 1994-2017 by Cisco Systems, Inc.
ios uptime is 1 minuteSystem image file is ASR9K Series (Pentium Celeron Stepping 3) processor with 16777216K bytes of memory.Pentium Celeron Stepping 3 processor at 2404MHz, Revision 2.174ASR 9006 4 Line Card Slot Chassis with V2 DC PEM
1 FastEthernet2 Management Ethernet375k bytes of non-volatile configuration memory.5631M bytes of hard disk.100027376k bytes of disk0: (Sector size 512 bytes).100027376k bytes of disk1: (Sector size 512 bytes).
Configuration register on node 0/RSP1/CPU0 is 0x2102Boot device on node 0/RSP1/CPU0 is disk0:Package active on node 0/RSP1/CPU0:iosxr-security, V 6.4.2[Default], Cisco Systems, at disk0:iosxr-security-6.4.2 Built on Fri Jul 27 15:48:51 UTC 2018 By iox-lnx-051 in for pie
asr9k-k9sec-supp, V 6.4.2[Default], Cisco Systems, at disk0:asr9k-k9sec-supp-6.4.2 Built on Fri Jul 27 15:48:51 UTC 2018 By iox-lnx-051 in for pie
asr9k-k9sec-px, V 6.4.2[Default], Cisco Systems, at disk0:asr9k-k9sec-px-6.4.2 Built on Fri Jul 27 15:49:07 UTC 2018 By iox-lnx-051 in for pie
asr9k-fpd, V 6.4.2[Default], Cisco Systems, at disk0:asr9k-fpd-6.4.2 Built on Fri Jul 27 15:26:57 UTC 2018 By iox-lnx-051 in for pie
asr9k-fpd-px, V 6.4.2[Default], Cisco Systems, at disk0:asr9k-fpd-px-6.4.2 Built on Fri Jul 27 15:27:30 UTC 2018 By iox-lnx-051 in for pie
iosxr-infra, V 6.4.2[Default], Cisco Systems, at disk0:iosxr-infra-6.4.2 Built on Fri Jul 27 15:10:31 UTC 2018 By iox-lnx-051 in for pie
iosxr-fwding, V 6.4.2[Default], Cisco Systems, at disk0:iosxr-fwding-6.4.2 Built on Fri Jul 27 15:10:31 UTC 2018 By iox-lnx-051 in for pie
iosxr-routing, V 6.4.2[Default], Cisco Systems, at disk0:iosxr-routing-6.4.2 Built on Fri Jul 27 15:10:31 UTC 2018 By iox-lnx-051 in for pie
iosxr-diags, V 6.4.2[Default], Cisco Systems, at disk0:iosxr-diags-6.4.2 Built on Fri Jul 27 15:10:31 UTC 2018 By iox-lnx-051 in for pie
iosxr-ce, V 6.4.2[Default], Cisco Systems, at disk0:iosxr-ce-6.4.2 Built on Fri Jul 27 15:10:31 UTC 2018 By iox-lnx-051 in for pie
iosxr-common-pd-fib, V 6.4.2[Default], Cisco Systems, at disk0:iosxr-common-pd-fib-6.4.2 Built on Fri Jul 27 15:10:31 UTC 2018 By iox-lnx-051 in for pie
asr9k-cpp, V 6.4.2[Default], Cisco Systems, at disk0:asr9k-cpp-6.4.2 Built on Fri Jul 27 15:10:31 UTC 2018--More-- RP/0/RSP1/CPU0:Sep 22 06:29:01.135 UTC: canb_fan_upg_agt[153]: %PLATFORM-UPGRADE_FPD-4-DOWN_REV : cbc instance 7 is down-rev (V5.02), upgrade to (V5.05). Use the "upgrade hw-module fpd" CLI in admin mode.RP/0/RSP1/CPU0:Sep 22 06:29:01.252 UTC: canb_fan_upg_agt[153]: %PLATFORM-UPGRADE_FPD-4-DOWN_REV : cbc instance 8 is down-rev (V5.02), upgrade to (V5.05). Use the "upgrade hw-module fpd" CLI in admin mode. By iox-lnx-051 in for pie
iosxr-gcp-fwding, V 6.4.2[Default], Cisco Systems, at disk0:iosxr-gcp-fwding-6.4.2 Built on Fri Jul 27 15:10:31 UTC 2018 By iox-lnx-051 in for pie
asr9k-os-mbi, V 6.4.2[Default], Cisco Systems, at disk0:asr9k-os-mbi-6.4.2 Built on Fri Jul 27 15:11:37 UTC 2018 By iox-lnx-051 in for pie
asr9k-base, V 6.4.2[Default], Cisco Systems, at disk0:asr9k-base-6.4.2 Built on Fri Jul 27 15:10:31 UTC 2018 By iox-lnx-051 in for pie
asr9k-fwding, V 6.4.2[Default], Cisco Systems, at disk0:asr9k-fwding-6.4.2 Built on Fri Jul 27 15:10:31 UTC 2018 By iox-lnx-051 in for pie
asr9k-ce, V 6.4.2[Default], Cisco Systems, at disk0:asr9k-ce-6.4.2 Built on Fri Jul 27 15:10:31 UTC 2018 By iox-lnx-051 in for pie
asr9k-diags-supp, V 6.4.2[Default], Cisco Systems, at disk0:asr9k-diags-supp-6.4.2 Built on Fri Jul 27 15:10:31 UTC 2018 By iox-lnx-051 in for pie
asr9k-scfclient, V 6.4.2[Default], Cisco Systems, at disk0:asr9k-scfclient-6.4.2 Built on Fri Jul 27 15:10:31 UTC 2018 By iox-lnx-051 in for pie
asr9k-mini-px, V 6.4.2[Default], Cisco Systems, at disk0:asr9k-mini-px-6.4.2 Built on Fri Jul 27 15:12:02 UTC 2018 By iox-lnx-051 in for pie
SYSTEM CONFIGURATION COMPLETED
