Network sh ver
Cisco Adaptive Security Appliance Software Version 9.2(3)
Device Manager Version 7.7(1)151
Compiled on Mon 15-Dec-14 05:10 PST by builders
System image file is "disk0:/asa923-smp-k8.bin"
Config file at boot was up 28 secs
Hardware:ASA5515, 8192 MB RAM, CPU Clarkdale 3058 MHz, 1 CPU (4 cores)
ASA: 4096 MB RAM, 1 CPU (1 core)
Internal ATA Compact Flash, 8192MB
BIOS Flash MX25L6445E @ 0xffbb0000, 8192KB
Encryption hardware device : Cisco ASA-55xx on-board accelerator (revision 0x1)
Boot microcode: CNPx-MC-BOOT-2.00
SSL/IKE microcode: CNPx-MC-SSL-PLUS-T020
IPSec microcode: CNPx-MC-IPSEC-MAIN-0026
Number of accelerators: 1
Baseboard Management Controller (revision 0x1) Firmware Version: 2.4
0: Int: Internal-Data0/0: address is 0462.73f8.0d60, irq 11
1: Ext: GigabitEthernet0/0: address is 0462.73f8.0d64, irq 10
2: Ext: GigabitEthernet0/1: address is 0462.73f8.0d61, irq 10
3: Ext: GigabitEthernet0/2: address is 0462.73f8.0d65, irq 5
4: Ext: GigabitEthernet0/3: address is 0462.73f8.0d62, irq 5
5: Ext: GigabitEthernet0/4: address is 0462.73f8.0d66, irq 10
6: Ext: GigabitEthernet0/5: address is 0462.73f8.0d63, irq 10
7: Int: Internal-Data0/1: address is 0000.0001.0002, irq 0
8: Int: Internal-Control0/0 : address is 0000.0001.0001, irq 0
9: Int: Internal-Data0/2: address is 0000.0001.0003, irq 0
10: Ext: Management0/0: address is 0462.73f8.0d60, irq 0
Licensed features for this platform:
Maximum Physical Interfaces: Unlimitedperpetual
Maximum VLANs: 100perpetual
Inside Hosts: Unlimitedperpetual
Failover: Enabledperpetual
Security Contexts: 2perpetual
GTP/GPRS: Disabledperpetual
AnyConnect Premium Peers: 2perpetual
AnyConnect Essentials: Disabledperpetual
Other VPN Peers: 250perpetual
Total VPN Peers: 250perpetual
Shared License: Disabledperpetual
AnyConnect for Mobile: Disabledperpetual
AnyConnect for Cisco VPN Phone: Disabledperpetual
Advanced Endpoint Assessment: Disabledperpetual
UC Phone Proxy Sessions: 2perpetual
Total UC Proxy Sessions: 2perpetual
Botnet Traffic Filter: Disabledperpetual
Intercompany Media Engine: Disabledperpetual
IPS Module: Disabledperpetual
Cluster: Enabledperpetual
Cluster Members: 2perpetual
This platform has an ASA 5515 Security Plus license.
Serial Number: FCH19357WAK
Running Permanent Activation Key: 0xd135d97c 0x885d510e 0xad227928 0xd3306c44 0x4f2dcdaf
Configuration register is 0x41
Configuration has not been modified since last system sh inv

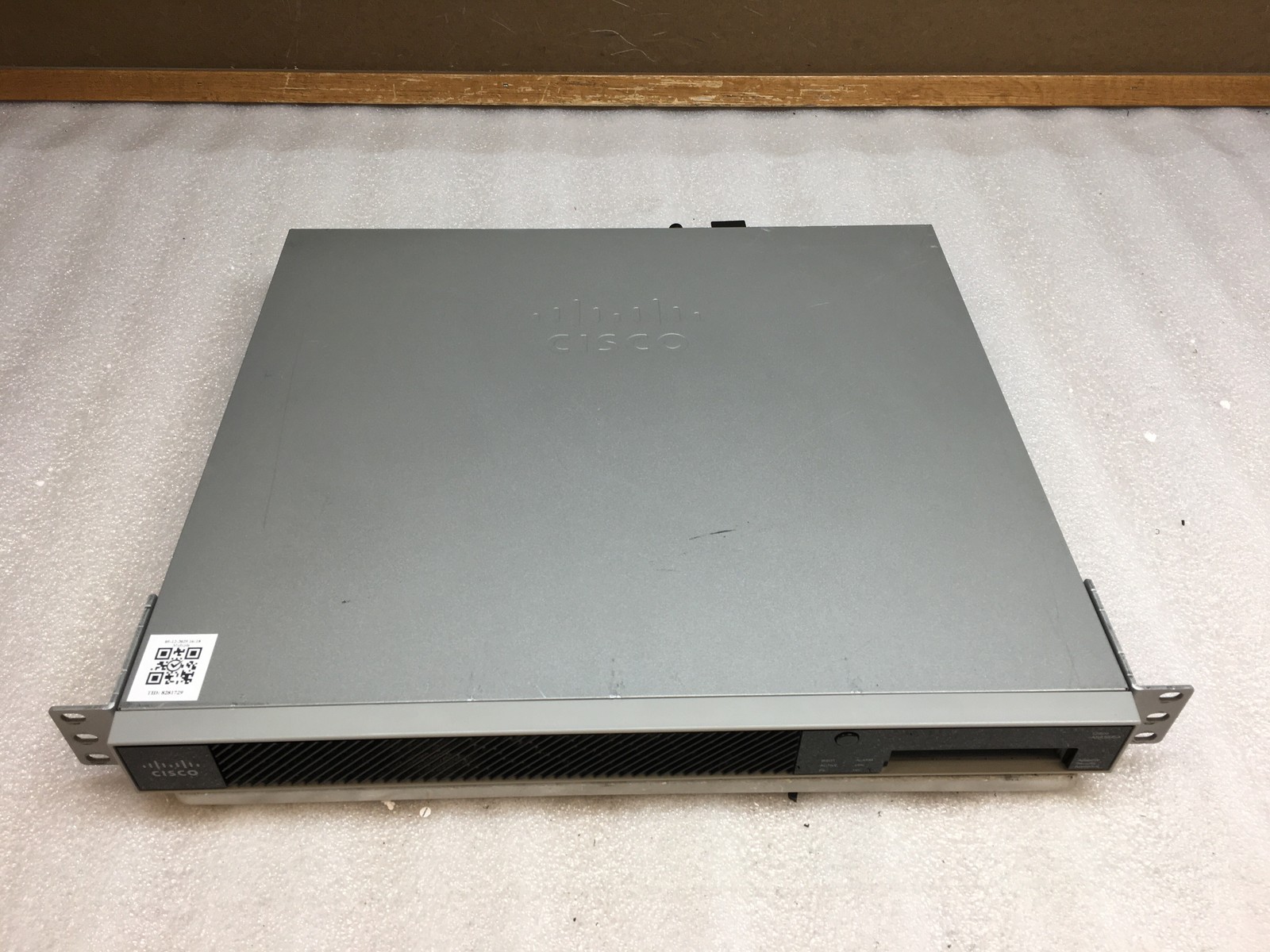

Name: "Chassis", DESCR: "ASA 5515-X with SW, 6 GE Data, 1 GE Mgmt, AC"
PID: ASA5515, VID: V04, SN:
ciscoasa# sh env
Cooling Fan 1: 6400 RPM - OK
Cooling Fan 2: 6400 RPM - OK
Cooling Fan 3: 6400 RPM - 1: 34.0 C - 1: 28.0 C - OK(Chassis Back Temperature)
Ambient 2: 26.0 C - OK(Chassis Front Temperature)
Ambient 3: 31.0 C - OK(Chassis Back Left 1: 1.208 V - OK(CPU Core)
Channel 2: 12.126 V - OK(12V)
Channel 3: 5.104 V - OK(5V)
Channel 4: 3.296 V - OK(3.3V)
Channel 5: 1.504 V - OK(DDR3 1.5V)
Channel 6: 1.48 V - OK(PCH sh memory
Free memory:3519170096 bytes (82%)
Used memory:775797200 bytes memory:4294967296 bytes sh interface
Interface GigabitEthernet0/0 "", is administratively down, line protocol is down
Hardware is i82574L rev00, BW 1000 Mbps, DLY 10 usec
Auto-Duplex, Auto-Speed
Input flow control is unsupported, output flow control is off
Available but not configured via nameif
MAC address 0462.73f8.0d64, MTU not set
IP address unassigned
0 packets input, 0 bytes, 0 no buffer
Received 0 broadcasts, 0 runts, 0 giants
0 input errors, 0 CRC, 0 frame, 0 overrun, 0 ignored, 0 abort
0 pause input, 0 resume input
0 L2 decode drops
0 packets output, 0 bytes, 0 underruns
0 pause output, 0 resume output
0 output errors, 0 collisions, 0 interface resets
0 late collisions, 0 deferred
0 input reset drops, 0 output reset drops
input queue (blocks free curr/low): hardware (511/511)
output queue (blocks free curr/low): hardware (511/511)
Interface GigabitEthernet0/1 "", is administratively down, line protocol is down
Hardware is i82574L rev00, BW 1000 Mbps, DLY 10 usec
Auto-Duplex, Auto-Speed
Input flow control is unsupported, output flow control is off
Available but not configured via nameif
MAC address 0462.73f8.0d61, MTU not set
IP address unassigned
0 packets input, 0 bytes, 0 no buffer
Received 0 broadcasts, 0 runts, 0 giants
0 input errors, 0 CRC, 0 frame, 0 overrun, 0 ignored, 0 abort
0 pause input, 0 resume input
0 L2 decode drops
0 packets output, 0 bytes, 0 underruns
0 pause output, 0 resume output
0 output errors, 0 collisions, 0 interface resets
0 late collisions, 0 deferred
0 input reset drops, 0 output reset drops
input queue (blocks free curr/low): hardware (511/511)
output queue (blocks free curr/low): hardware (511/511)
Interface GigabitEthernet0/2 "", is administratively down, line protocol is down
Hardware is i82574L rev00, BW 1000 Mbps, DLY 10 usec
Auto-Duplex, Auto-Speed
Input flow control is unsupported, output flow control is off
Available but not configured via nameif
MAC address 0462.73f8.0d65, MTU not set
IP address unassigned
0 packets input, 0 bytes, 0 no buffer
Received 0 broadcasts, 0 runts, 0 giants
0 input errors, 0 CRC, 0 frame, 0 overrun, 0 ignored, 0 abort
0 pause input, 0 resume input
0 L2 decode drops
0 packets output, 0 bytes, 0 underruns
0 pause output, 0 resume output
0 output errors, 0 collisions, 0 interface resets
0 late collisions, 0 deferred
0 input reset drops, 0 output reset drops
input queue (blocks free curr/low): hardware (511/511)
output queue (blocks free curr/low): hardware (511/511)
Interface GigabitEthernet0/3 "", is administratively down, line protocol is down
Hardware is i82574L rev00, BW 1000 Mbps, DLY 10 usec
Auto-Duplex, Auto-Speed
Input flow control is unsupported, output flow control is off
Available but not configured via nameif
MAC address 0462.73f8.0d62, MTU not set
IP address unassigned
0 packets input, 0 bytes, 0 no buffer
Received 0 broadcasts, 0 runts, 0 giants
0 input errors, 0 CRC, 0 frame, 0 overrun, 0 ignored, 0 abort
0 pause input, 0 resume input
0 L2 decode drops
0 packets output, 0 bytes, 0 underruns
0 pause output, 0 resume output
0 output errors, 0 collisions, 0 interface resets
0 late collisions, 0 deferred
0 input reset drops, 0 output reset drops
input queue (blocks free curr/low): hardware (511/511)
output queue (blocks free curr/low): hardware (511/511)
Interface GigabitEthernet0/4 "", is administratively down, line protocol is down
Hardware is i82574L rev00, BW 1000 Mbps, DLY 10 usec
Auto-Duplex, Auto-Speed
Input flow control is unsupported, output flow control is off
Available but not configured via nameif
MAC address 0462.73f8.0d66, MTU not set
IP address unassigned
0 packets input, 0 bytes, 0 no buffer
Received 0 broadcasts, 0 runts, 0 giants
0 input errors, 0 CRC, 0 frame, 0 overrun, 0 ignored, 0 abort
0 pause input, 0 resume input
0 L2 decode drops
0 packets output, 0 bytes, 0 underruns
0 pause output, 0 resume output
0 output errors, 0 collisions, 0 interface resets
0 late collisions, 0 deferred
0 input reset drops, 0 output reset drops
input queue (blocks free curr/low): hardware (511/511)
output queue (blocks free curr/low): hardware (511/511)
Interface GigabitEthernet0/5 "", is administratively down, line protocol is down
Hardware is i82574L rev00, BW 1000 Mbps, DLY 10 usec
Auto-Duplex, Auto-Speed
Input flow control is unsupported, output flow control is off
Available but not configured via nameif
MAC address 0462.73f8.0d63, MTU not set
IP address unassigned
0 packets input, 0 bytes, 0 no buffer
Received 0 broadcasts, 0 runts, 0 giants
0 input errors, 0 CRC, 0 frame, 0 overrun, 0 ignored, 0 abort
0 pause input, 0 resume input
0 L2 decode drops
0 packets output, 0 bytes, 0 underruns
0 pause output, 0 resume output
0 output errors, 0 collisions, 0 interface resets
0 late collisions, 0 deferred
0 input reset drops, 0 output reset drops
input queue (blocks free curr/low): hardware (511/511)
output queue (blocks free curr/low): hardware (511/511)
Interface Management0/0 "", is administratively down, line protocol is down
Hardware is en_vtun rev00, BW 1000 Mbps, DLY 10 usec
Auto-Duplex, Auto-Speed
Input flow control is unsupported, output flow control is off
Available but not configured via nameif
MAC address 0462.73f8.0d60, MTU not set
IP address unassigned
0 packets input, 0 bytes, 0 no buffer
Received 0 broadcasts, 0 runts, 0 giants
0 input errors, 0 CRC, 0 frame, 0 overrun, 0 ignored, 0 abort
0 pause input, 0 resume input
0 L2 decode drops
0 packets output, 0 bytes, 0 underruns
0 pause output, 0 resume output
0 output errors, 0 collisions, 1 interface resets
0 late collisions, 0 deferred
0 input reset drops, 0 output reset drops
input queue (blocks free curr/low): hardware (0/0)
Specifications Functional Condition:
F3 - Key Functions Working Equipment in this category has undergone testing to confirm that its core functionalities are operational. Essential functions that a typical user would expect are verified working. Secondary functions or software may not be present or configured. Units may be missing components or parts that are not essential to key functions.
Cosmetic Condition:
C4 - Used Good Good overall used condition. Some light scratches or scuffs. No dents, dings or cracks.
Data Sanitization:
S3 - Data Clear Device has been sanitized by one of the following methods: Factory Reset, NIST 800-88 Clear, or DOD 5220.22
Mpn
ASA5515 V03(V04) Function Tests Powers On
Passed Physical Inspection
Passed Functions
Passed Buttons
Passed Shipping
