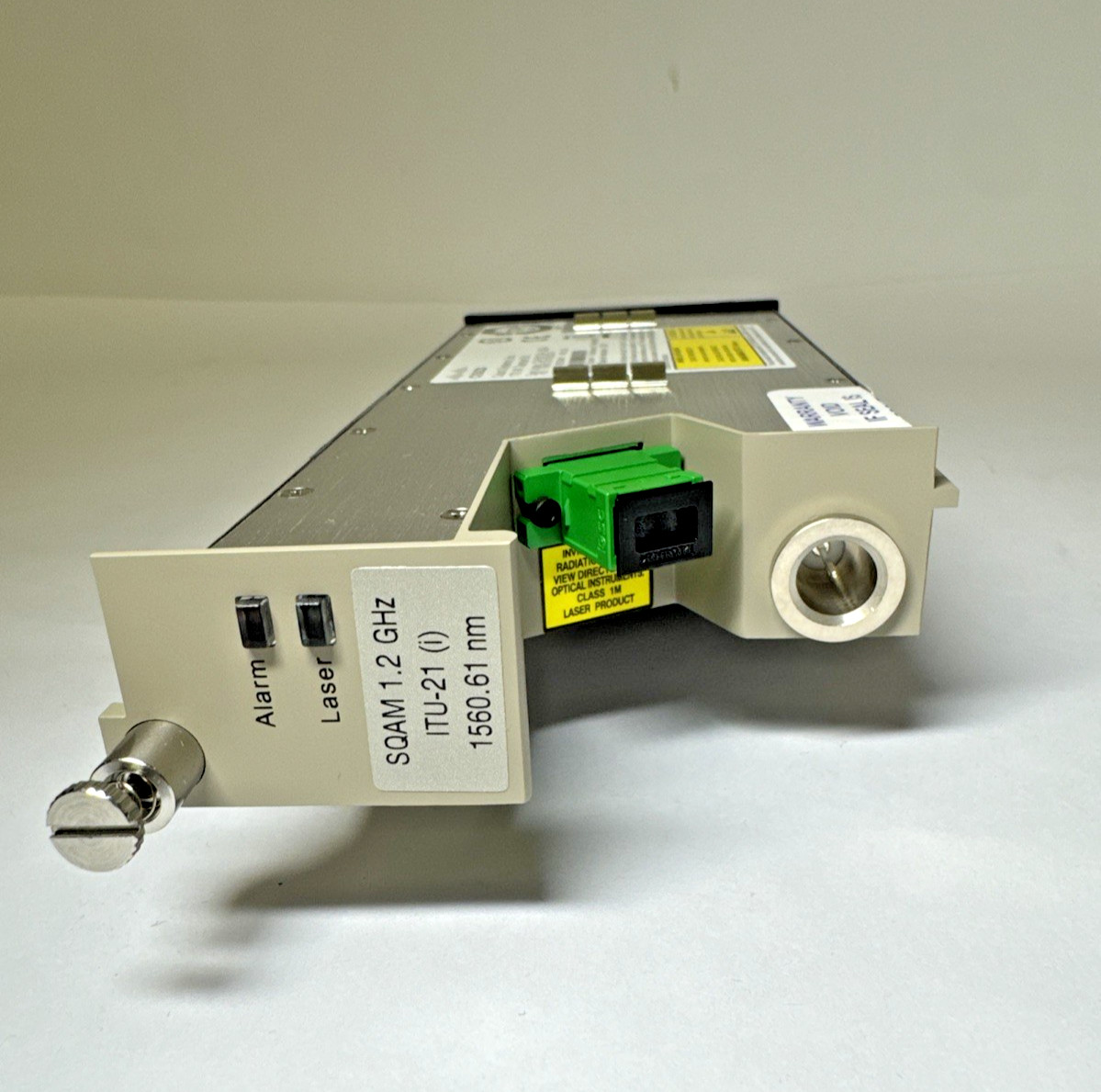

P2HD1.2G15TXQ21i=
Cisco® Prisma® II optical networks allow for best in class architectures with increased reliability, scalability, and cost-effectiveness. The Cisco Prisma II SuperQAM 1.2 transmitter offers increased bandwidth and uses existing directly-modulated QAM transmitter designs to support DOCSIS® 3.1 networks. This transmitter combines the enhanced channel carrying capacity of the Prisma II 1-GHz SuperQAM Full Spectrum transmitter with the narrowcast support in multi-wavelength systems inherent in the original Prisma II 1-GHz SuperQAM transmitter to provide unprecedented performance in a directly modulated transmitter
Features:
● RF channels up to 1.218 GHz● Designed to operate in the Prisma II and Prisma XD platforms● Superior fiber dispersion compensation● Excellent modulation-error-rate (MER) and bit-error-rate (BER) performance supports high-symbol-rate QAM● ITU compatible with 100 GHz channel spacing for dense wavelength division multiplexing (DWDM) systems● Small CO2 footprint with the lowest power consumption transmitter in the industry● Status LEDs indicate module condition and simplify troubleshooting● Blind-mate (push-on) RF and DC connectors● RF input test points● Nonvolatile storage of pre-set operating parameters simplifies installation proceduresUser selectable Automatic Gain Control (AGC)● Local control via Local Craft Interface (LCI)● Local control via Intelligent Communications Interface Module (ICIM)● SNMP remote monitoring
