Cisco UBR-MC3GX60V v03 Broadband Processing Engine Module Board NEW IN BOX

Price: BE $582.78

Cisco UBR-MC3GX60V v03 Broadband Processing Engine Module Board NEW? IN BOX

Dear customer,

When there might be a difference between the automatic generated specifications by the system, and the hand written/typed description, then please be aware that the only correct description is what's written by our selves here in the description.
Specifications above might be slightly different.
Thanks for your understanding.

LOOKS LIKE NEW IN BOX

Price is for 1 item

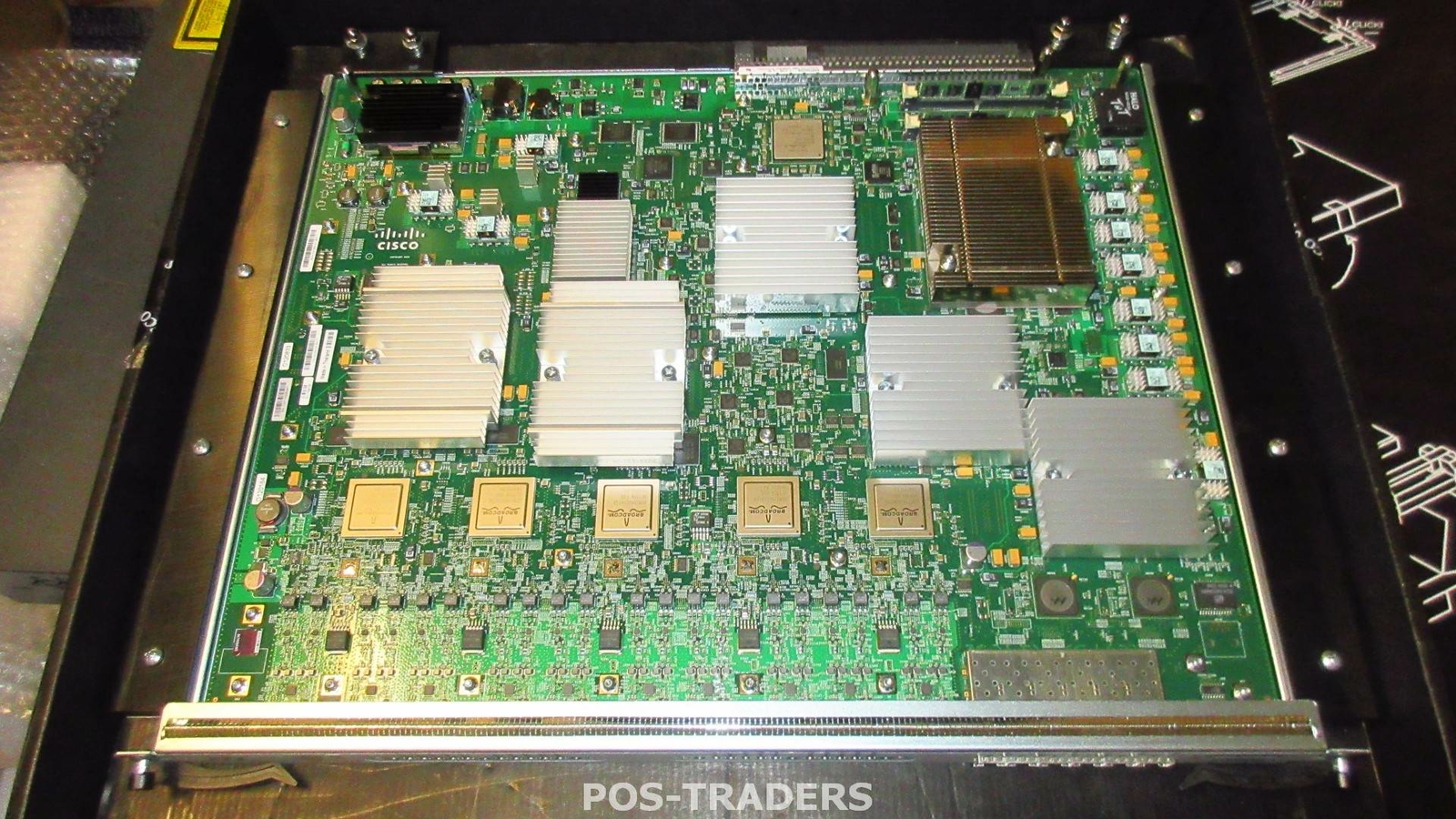

See photos for actual item

CISCO uBR MC3GX60V
BROADBAND PROCESSING ENGINE WITH
FULL DOCSIS 3.0 SUPPORT
The Cisco uBR MC3GX60V Broadband Processing Engine (BPE) is a high capacity, DOCSIS
3.0 capable line card for the Cisco uBR 10012 Universal Broadband Router. With 72 DOCSIS
downstream and 60 upstream channels per card the Cisco uBR10012 platform scales to an
unprecedented 576 modular DOCSIS downstream channels and 480 upstream channels, or
approximately 24 Gbps of downstream throughput and 14.4 Gbps of upstream throughput, in a
single, carrier class chassis. Because it bonds 18 EuroDOCSIS channels per bonding group,
the solution allows cable operators to deliver ultra broadband services with maximum
downstream speeds approaching 1.0 Gbps per subscriber.
• DOCSIS line rate operation for all downstream channels (72 at 256QAM Annex B or 54
at 256QAM Annex A) and all 60 upstream channels (up to 64QAM at 6.4 MHz) in
bonded and nonbonded modes
• From four channel to more than 32 channel downstream bonding capable; four channel
upstream bonding capable
• Six Small Form Factor Pluggable (SFP) ports (three active and three standby)
• 20 upstream ports (identical to MC20X20V), providing up to 12 frequency stacking per
port
• Flexibility in assigning upstream channels to upstream ports; upstream frequency of up
to 85 MHz
• Full DOCSIS 3.0 CMTS and downstream external PHY interface (DEPI) capability
• Superior RF performance with enhanced full feature tap (FFT), ingress cancellation,
and impulse noise detection capability
• Time Division Multiple Access (TDMA), Advanced Time Division Multiple Access (ATDMA), and Synchronous Code Division Multiple Access (S-CDMA) supported
