Cisco UCS 6332-16UP 40-Port Fabric Interconnect Switch UCS-FI-6332-16UP +License
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

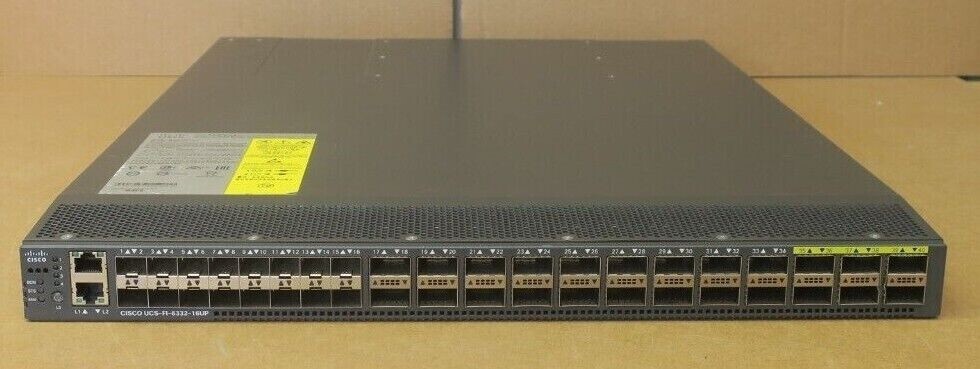

Cisco UCS 6332-16UP 40-Port Fabric Interconnect Switch UCS-FI-6332-16UP +License
Price: GB $950.00
Cisco UCS 6332-16UP 40-Port Fabric Interconnect Switch UCS-FI-6332-16UPP/N: UCS-FI-6332-16UPIn Good Condition, Full Working OrderTestedBack to Front Airflow
8x 10Gb SFP+ Ports + 4x 40Gb QSFP+ Ports LicensedIncludes:
  • 1 x Cisco UCS 6332-16UP 40-Port Fabric Interconnect Switch UCS-FI-6332-16UP
  • 2 x Cisco UCS-PSU-6332-AC 650W Power Supply
  • 2 x Cisco UCS-FAN-6332 Fan Module
Product Overview
The Cisco UCS 6300 Series Fabric Interconnects are a core part of Cisco UCS, providing both network connectivity and management capabilities for the system (Figure 2). The Cisco UCS 6300 Series offers line-rate, low-latency, lossless 10 and 40 Gigabit Ethernet, Fibre Channel over Ethernet (FCoE), and Fibre Channel functions.
The Cisco UCS 6300 Series provides the management and communication backbone for the Cisco UCS B-Series Blade Servers, 5100 Series Blade Server Chassis, and C-Series Rack Servers managed by Cisco UCS. All servers attached to the fabric interconnects become part of a single, highly available management domain. In addition, by supporting unified fabric, the Cisco UCS 6300 Series provides both LAN and SAN connectivity for all servers within its domain.
From a networking perspective, the Cisco UCS 6300 Series uses a cut-through architecture, supporting deterministic, low-latency, line-rate 10 and 40 Gigabit Ethernet ports, switching capacity of 2.56 Terabits per second (Tbps), and 320 Gbps of bandwidth per chassis, independent of packet size and enabled services. The product family supports Cisco® low-latency, lossless 10 and 40 Gigabit Ethernet[1] unified network fabric capabilities, which increase the reliability, efficiency, and scalability of Ethernet networks. The fabric interconnect supports multiple traffic classes over a lossless Ethernet fabric from the server through the fabric interconnect. Significant TCO savings can be achieved with an FCoE optimized server design in which Network Interface Cards (NICs), Host Bus Adapters (HBAs), cables, and switches can be consolidated.
The Cisco UCS 6332-16UP 40-Port Fabric Interconnect is a 1RU 10 and 40 Gigabit Ethernet, FCoE, and native 4-, 8, and 16-Gbps Fibre Channel switch offering up to 2.43 Tbps throughput and up to 40 ports. The switch has 24 fixed 40-Gbps Ethernet and FCoE ports and sixteen 1 and 10 Gigabit Ethernet or 4-, 8-, and 16-Gbps Fibre Channel ports.
Manufacturer Specification:
  • Manufacturer: Cisco Unified Computing
  • Brand: Cisco
  • Product Line: Cisco UCS
  • Model: 6332 Fabric Interconnect
  • Bundled with: 12-port licenses
  • Performance: Throughput: 2.43 Tbps
  • Capacity:
    • QoS hardware queues per port: 8
    • Virtual interfaces (VLANs): Switch
    • Subcategory: Network hubs and switches
    • Subtype: 40 Gigabit Ethernet
    • Form Factor: Rack-mountable
    • Ports Qty: 40
    • Routing Protocol: IGMP, IGMPv2, IGMPv3
    • MAC Address Table Size: 32000 entries
    • Jumbo Frame Support: 9216 bytes
    • Manageable: Yes
    • Remote Management Protocol: RMON
    • Features: Class of Service (CoS), Data Center Bridging Exchange (DCBX) support, Fabric Extender Transceiver (FET), Link Aggregation Control Protocol (LACP), Priority-Based Flow Control (PFC), Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Weighted Round Robin (WRR) queuing
    • Compliant Standards: IEEE 802.1p, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3x
    SFP+ Ports:
    • Qty: 16
    • Type: 1 Gigabit / 10Gb Ethernet/ 4/8/16Gb Fibre Channel
    QSFP+ Ports:
    • Qty: 24
    • Type: 40 Gigabit FCoE 1 x 1000Base-T RJ-45 management, 40 x QSFP+
    Boot Log:

    cisco-A#show version
    System version: 4.0(4n)
    cisco-A#scope license
    cisco-A /license #show featureLicense feature:
    NameVendor Version TypeGrace Period
    ------------------------- ------ ------- ------------------ ------------
    10G_C_PORT_ACTIVATION_PKG cisco1.0Counted120
    40G_ETH_C_PORT_ACTIVATION_PKG
    cisco1.0Counted120
    40G_ETH_PORT_ACTIVATION_PKG
    cisco1.0Counted120
    cisco-A /license #show usage
    Feat NameScope Default Total Quant Used Quant Subordinate
    QuantStatePeer Count ComparisonGrace Used
    ------------------------------ ----- ------- ----------- ---------- ------------
    -------- -------------------- ----------------------- Not ApplicableNo Not ApplicableNo Not ApplicableNo Not ApplicableNo Not Not Not Not ApplicableUnknown0cisco-A#scope firmwarecisco-A /firmware #show class="MsoNoSpacing">
