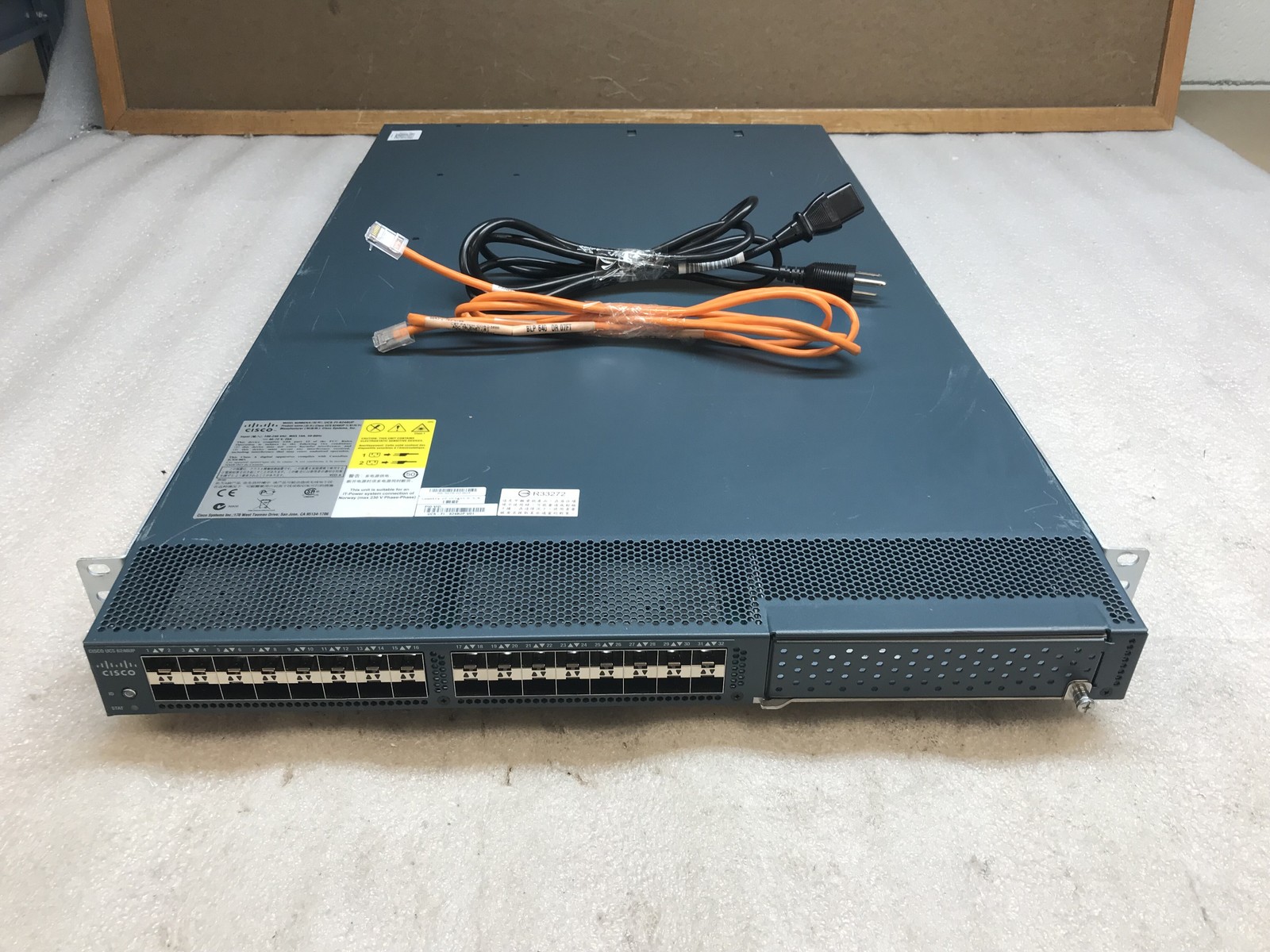

Listing Grid template example Product Photo Description Cisco UCS-FI-6248UP Fabric Interconnect - Tested / Factory Reset Cisco UCS-FI-6248UP Fabric Interconnect - Tested / Factory Reset

The Cisco UCS-FI-6248UP Fabric Interconnect is a high-performance, managed Layer 3 networking device designed for data center environments. It provides robust connectivity with 48 ports at 10G speed, ensuring efficient and reliable network management and scalability suited for enterprise-grade Count: 32

Port Speed: 10G

Management Type: Managed

PoE Support: None

Stackable: No

Layer: Layer 3

SFP Ports: 32

Key Features

• High-density 10 Gigabit Ethernet connectivity suitable for unified fabric environments
• Managed Layer 3 switch capabilities for advanced networking functions including routing and switching
• Supports Cisco Unified Computing System (UCS) for integrated data center management
• Multiple SFP ports for flexible fiber optic or copper connections
• Robust security and network traffic management features
• Model: UCS-FI-6248UP
• Device Type: Fabric Interconnect
• Serial Number: SSI15450GEL
• Layer: Unified Fabric (Ethernet / FCoE / Fibre Channel)
• Hardware Revision: V01
• Software: Cisco UCS Manager 5.0(3)N2(2.1s)
• License / Feature Set: Cisco UCS Manager embedded management
• Fixed Unified Ports: 32x 1/10G SFP+ (Ethernet/FCoE; Fibre Channel-capable unified ports by configuration)
• Expansion: 1x expansion slot supporting up to 16 additional unified ports (48 ports maximum)
• Installed UCS Module(s): UCS-FI-DL2
• Switching Capacity: Up to 960 Gbps
• Fabric ID: A
• Device Class: Cisco UCS 6200 Series Fabric Interconnect
• StackWise Stackable: No (UCS Fabric Interconnect clustering is a separate technology)
• Installed Power Supply Model(s): UCS-PSU-6248UP-AC S/N ART1543X0WW, UCS-PSU-6248UP-AC S/N ART1538X0ZP

Important Notes

• Device shows scratches and blemishes

Included

• Rack Ears
• Power Cable
• Ethernet Cable

Not Included

• No additional transceivers or modules included

Specifications Functional Condition:
F3 - Key Functions Working

Equipment in this category has undergone testing to confirm that its core functionalities are operational. Essential functions that a typical user would expect are verified working. Secondary functions or software may not be present or configured. Units may be missing components or parts that are not essential to key functions.

Cosmetic Condition:
C4 - Used Good

Good overall used condition. Some light scratches or scuffs. No dents, dings or cracks.

Data Sanitization:
S3 - Data Clear

Device has been sanitized by one of the following methods: Factory Reset, NIST 800-88 Clear, or DOD 5220.22

Port Count
48 Port Speed
10G Management Type
Managed Poe Support
None Poe Budget
NO Stackable
NO Layer
Layer 3 Sfp Ports
32 Function Tests Powers On
Passed Management Interface Access
Passed Port Connectivity
Passed Link Lights
Passed Factory Reset
