✅ High‑Performance ITX Power Delivery 9+2+1‑phase 60A DrMOS VRM with dedicated VRM cooling fan and 10‑layer PCB, stable enough for top‑tier Ryzen 9000 X3D CPUs in compact ITX builds.
✅ Elite Overclocking Capability Built‑in independent clock generator supports CPU base‑clock asynchronous overclocking. Two DDR5 slots up to 128GB total, supports EXPO and memory OC up to DDR5‑10200+ MT/s.
✅ Dual CPU‑Direct PCIe 5.0 M.2 Two M.2 slots run full PCIe 5.0 x4 lanes directly from CPU, delivering ultra‑fast NVMe SSD performance for gaming and content creation.
✅ Complete High‑Speed Connectivity Onboard 5G wired LAN plus Wi‑Fi 7 & BT5.4; rear‑panel 20Gbps USB‑C, abundant USB‑A ports, HDMI 2.0 & DP 1.2 video outputs.
✅ DIY‑Friendly Gaming Features X3D AI High‑FPS Mode optimizes gaming performance for X3D processors. Features BIOS Flashback, Clear CMOS button, debug LED and ARGB headers for small‑form‑factor gaming rigs.

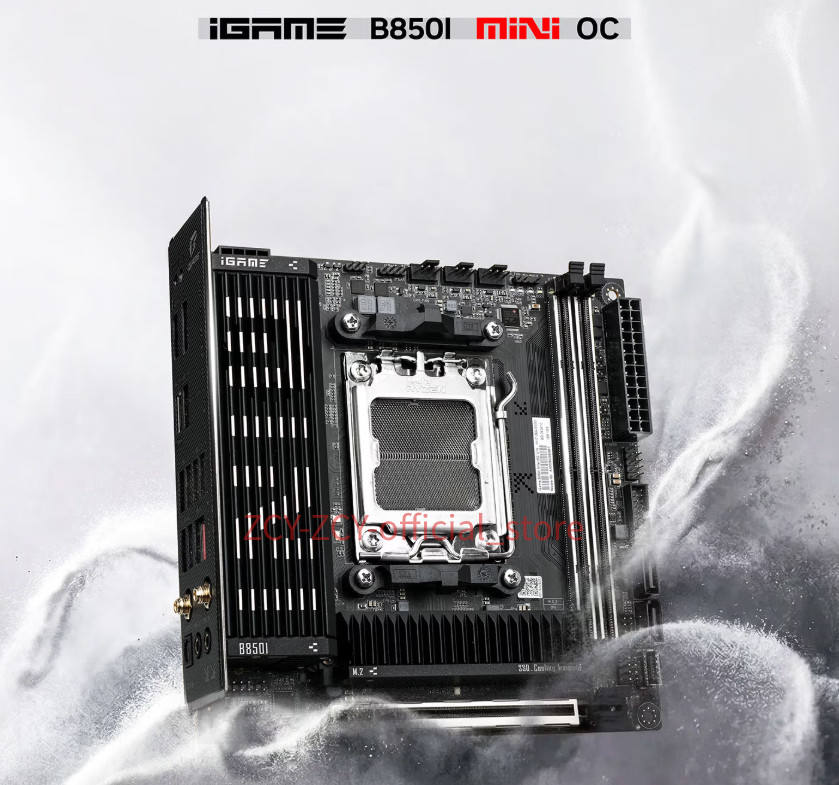

ItemSpecificationProduct NameColorful iGame B850I MINI OC V14 MotherboardChipsetAMD B850SocketAM5Supported CPUAMD Ryzen 7000 / 8000 / 9000 Series (Including X3D Models)Form FactorMini‑ITX (170 × 170 mm)Power Solution9+2+1‑phase 60A DrMOS, 8‑pin CPU power connector, 10‑layer PCB, On‑board VRM cooling fanMemory2×DDR5 DIMM slots, Max 128GBSupport EXPO, Overclock up to DDR5‑10200+ MT/sPCIe Slot1×PCIe 5.0 x16 (Metal‑reinforced)M.2 Storage2×M.2 NVMe 2280, Dual PCIe 5.0 x4 (CPU‑direct)SATA Port2×SATA III 6Gb/sRear I/O1×HDMI 2.0, 1×DP 1.21×USB3.2 Gen2x2 Type‑C(20Gbps)1×USB3.2 Gen2‑A(10Gbps), 2×USB3.2 Gen1‑A, 4×USB2.0‑ASPDIF‑out, 3.5mm Audio JacksBIOS Flash Button, Clear CMOS ButtonNetwork5G RJ45 Ethernet, Wi‑Fi 7 + Bluetooth 5.4AudioRealtek ALC897 7.1‑Channel HD AudioSpecial FeaturesIndependent Clock Generator for Asynchronous Overclock, X3D AI High‑FPS Mode, Debug LED, ARGB HeadersRelease DateJun 2026
