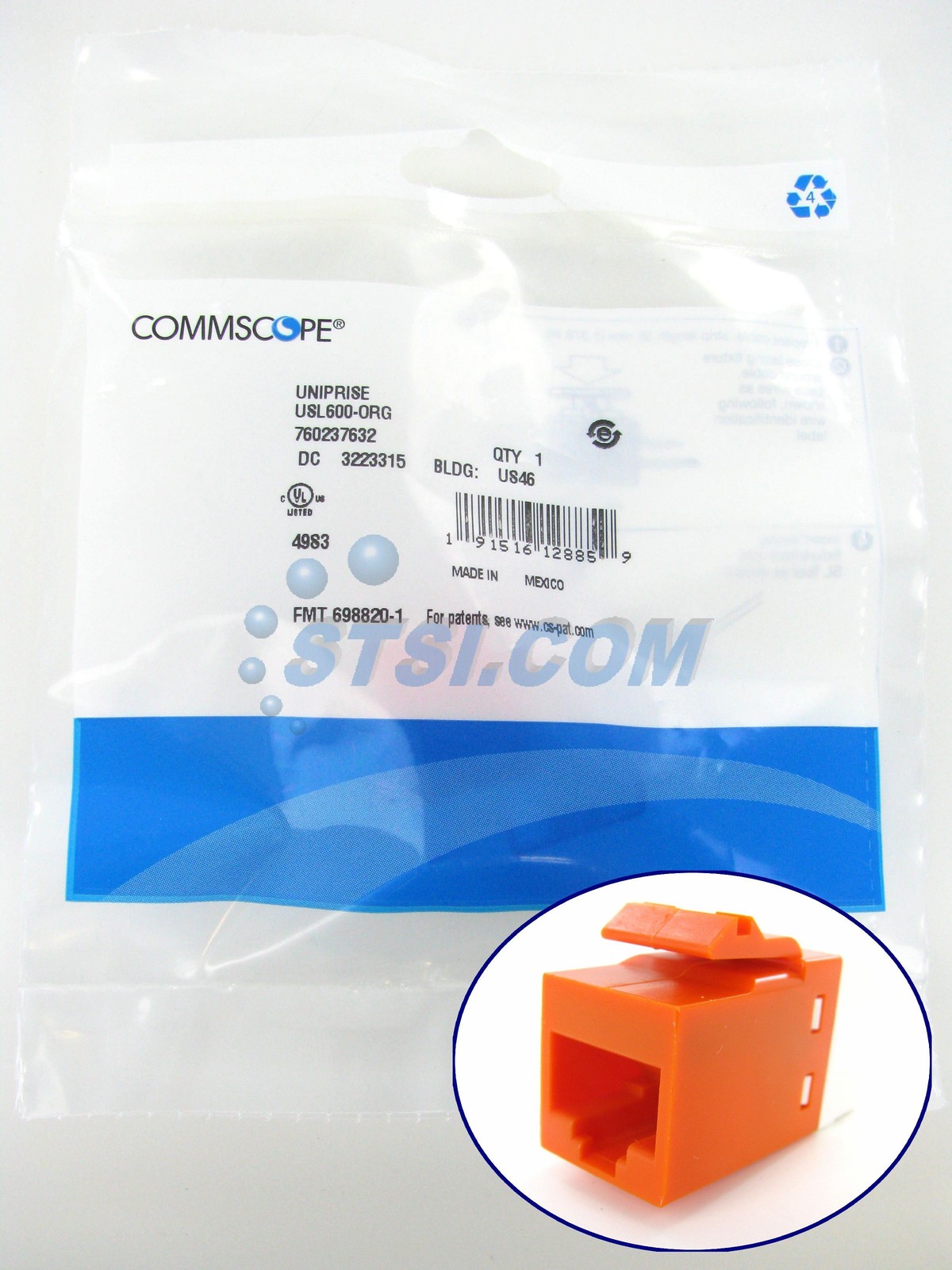

Commscope USL600-ORG Uniprise SL-Series RJ45 Cat6 Jack, Orange ~STSI
Price: US $9.99
Commscope USL600-ORG Uniprise SL-Series RJ45 Cat6 Jack, Orange


Description:

Commscope Uniprise SL-Series Modular Jack, RJ45, Cat6 Unshielded, Uniprise®

  • Product Type Modular jack
  • Product Series USL Series
  • ANSI/TIA Category 6
  • Cable Type Unshielded
  • Color Orange
  • Conductor Type Solid | Stranded
  • Integrated Dust Cover Type None
  • Termination Type IDC
  • Wiring T568A | T568B
  • Compatible Conductor Gauge, solid 22 AWG | 24 AWG
  • Compatible Conductor Gauge, stranded 24 AWG | 26 AWG
  • Contact Resistance Variation, maximum 20 mOhm
  • Contact Resistance, maximum 100 mOhm
  • Current Rating at Temperature 1.5 A @ 20 °C | 1.5 A @ 68 °F
  • Dielectric Withstand Voltage, RMS, conductive surface 1,500 Vac @ 60 Hz
  • Dielectric Withstand Voltage, RMS, contact-to-contact 1,000 Vac @ 60 Hz
  • Insulation Resistance, minimum 500 MOhm
  • Remote Powering Fully supports the safe delivery of power over LAN cabling described by IEEE 802.3bt (Type 4) and complies with the unmating under electrical load requirements prescribed by IEC 60512-99-002
  • PoE Durability Supports IEEE 802.3bt Type 4 (90 W) applications after 3000 plug to jack mating cycles
  • Contact Plating Material Precious metals
  • Material Type Copper alloy | High-impact, flame retardant, thermoplastic
  • Termination Contact Plating Nickel
  • Plug Insertion Life, test plug IEC 60603-7 compliant plug
  • Plug Retention Force, minimum 133 N | 29.9 lbf
  • Plug to Jack Mating Cycles Complies to IEC 60603-7 series
  • Operating Temperature -10 °C to +60 °C (+14 °F to +140 °F)
  • Storage Temperature -40 °C to +70 °C (-40 °F to +158 °F)
  • Relative Humidity Up to 95%, non-condensing
  • Flammability Rating UL 94 V-0
  • Safety Standard UL | cUL


    • Shipping Info:

    In general, for packages going via the US Postal Service, we will ship the same day if your payment is received by 9:00am CST. For packages going via UPS or Fedex, we will ship within 1 business day. For heavier packages requiring UPS or Fedex, we may adjust the carrier depending on the pickup schedule for our location. For US Postal Service packages, we usually ship on Saturdays too.
