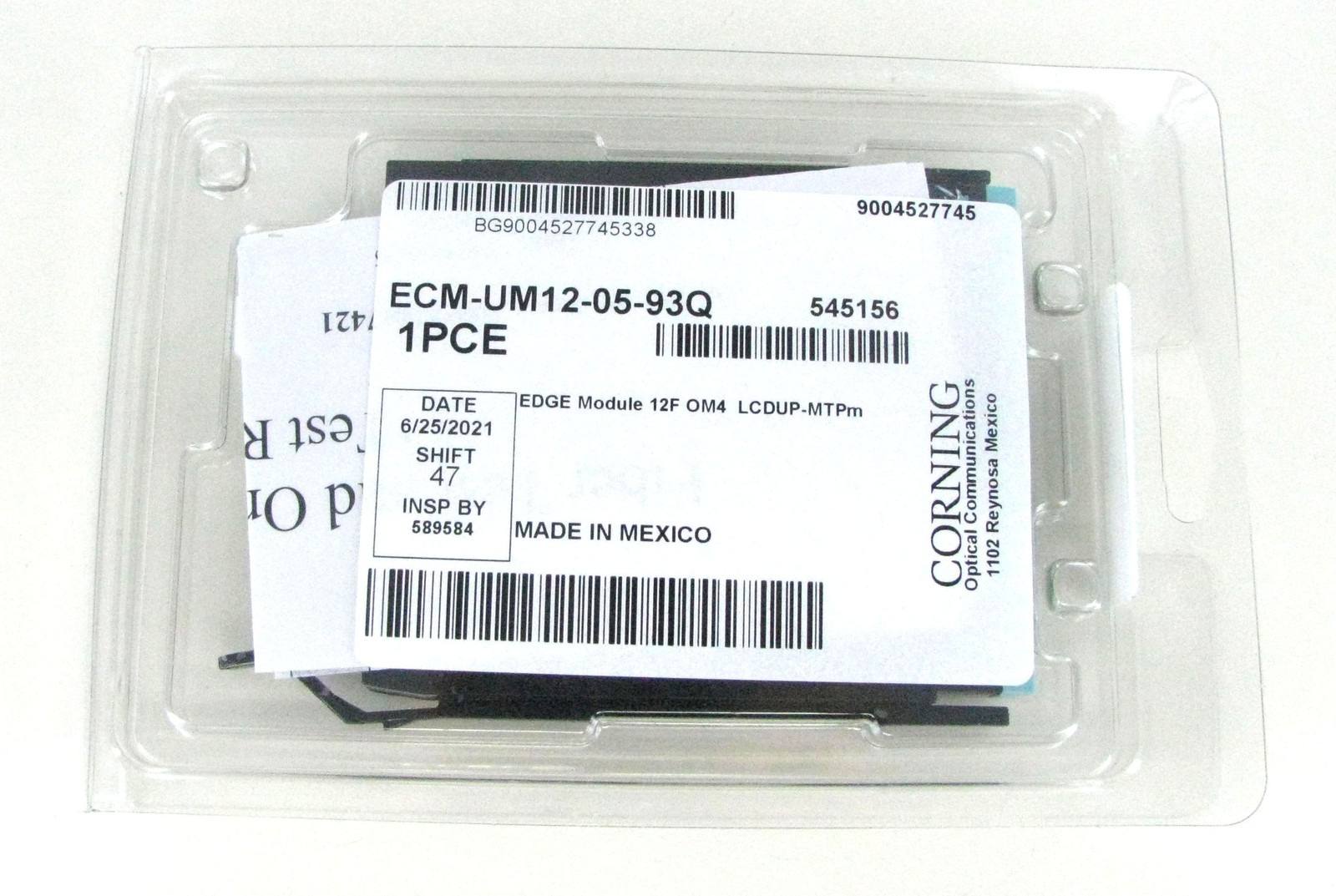

Corning 12-Fiber Pretium Edge Module, LC Duplex to Pinned MTP 50um, SX+ OM4Description:
Pretium EDGE® Module, 12 F, LC Duplex to MTP® Connector, 50 um multimode (OM4)Part Number: ECM-UM12-05-93QThe Pretium EDGE® modules provide the interface between the MTP® on the trunk and the LC duplex jumpers that will then connect directly into the electronics. The LC duplex adapters feature hinged VFL-compatible shutters that move up and out of the way when the connector is inserted. Specially designed indents in the shutters ensure that the end faces of the connectors are never touched. These shutters replace the standard dust caps that typically once removed are never replaced, exposing the interior end faces to dust particles and possible damage.Features:
Part Number ECM-UM12-05-93Q
Product Description Pretium EDGE® Solutions Module, 12 F, LC Duplex to MTP® Connector, 50 um multimode (OM4)
Product Type Panels & Modules
Fiber Category 50 um MM (OM4)
Fiber Count 12
Units per Delivery 1/1
Connector modules
Allow for fiber modularity while offering both front- and rear-loading capability
Shuttered modules
Create one-hand operation while eliminating need to keep up with dust capsSpecifications:
Application Data Center LAN/SAN
Product Type Panels & Modules
Fiber Category 50 um MM (OM4)
Fiber Count 12
Number of Adapters per Panel 6
Adapter Type Front Shuttered LC
Adapter Color Front Aqua
Adapter Type Back MTP®
Adapter Color Back Aqua
Dimensions (W x D x H) 90 mm 124 mm 12 mm (3.53 in 4.87 in 0.463 in)
Optical Specification - Hardware
Module Insertion Loss, Max 0.5 dB
Wavelengths 850 nm / 1,300 nm nm
Connector Type MTP® (pinned)
Ferrule Composite
Design - Connector B
Connector Type LC Uniboot
Ferrule Ceramic
Cable Design
Fiber Count 12
Polarity Universal
RoHS Free of hazardous substances according to RoHS 2002/95/EG
