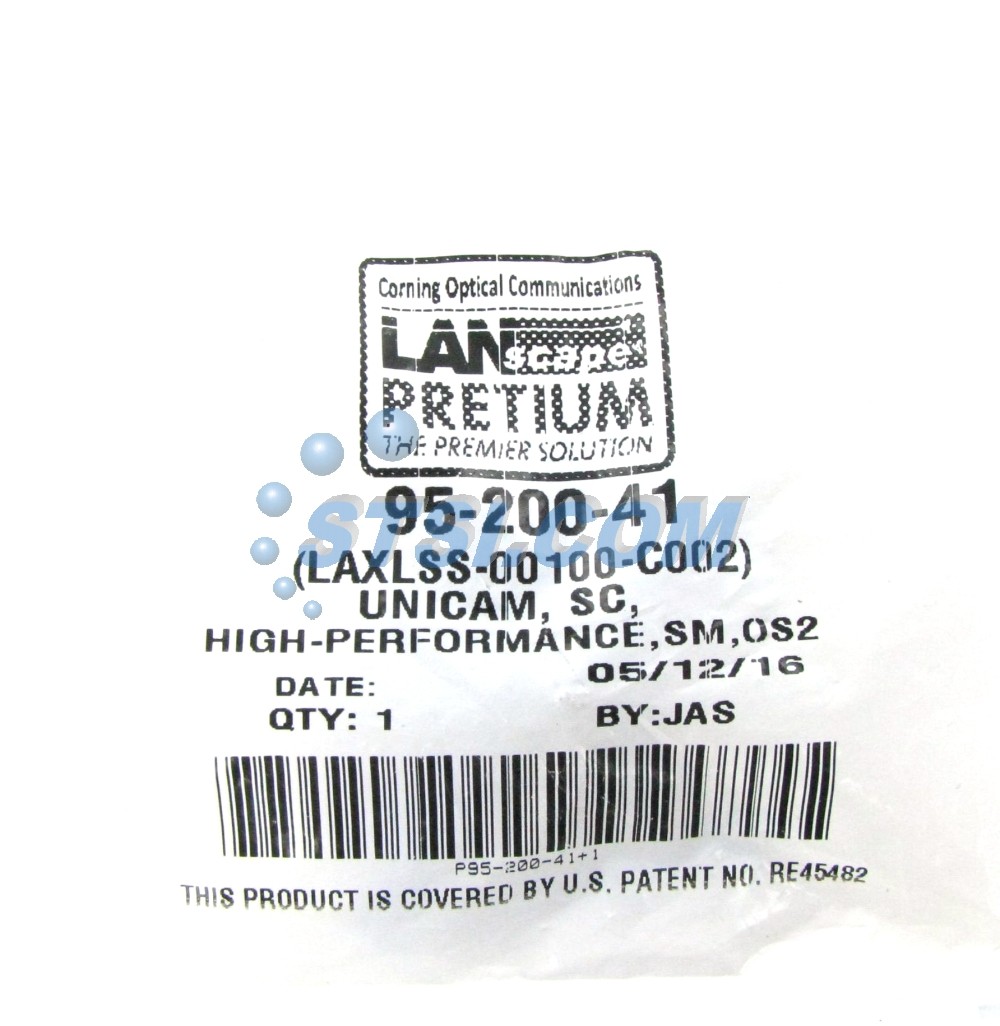

Corning Unicam SC OS2 Singlemode 8.3 um Pretium Fiber Optic Connector, 2016 DATE CODE

These connectors have a date code from 2016. These will work with either the Standard (blue bag) tool kits, or the Pretium (gray bag) tool kits made by Corning.

Description:

UniCam® High-Performance Connector, SC Single-mode (OS2)Part Number: 95-200-41Corning Cable Systems UniCam® High-Performance Connectors offer best-in-class optical performance in a fast, easy field-termination solution. These high-precision connectors guarantee exceptional insert loss – 0.1 dB typical/0.5 dB maximum per connector pair for multimode, 0.2 dB typical/0.5 dB maximum per connector pair for single-mode. Installation of an LC, SC, or ST® Compatible Connector can be accomplished in about 45 seconds with the UniCam High-Performance Tool Kit. The lightweight, handheld installation tool and the high-performance cleaver virtually eliminate human variability from installation, ensuring terminations are right, the first time, every time. This kit was designed with consideration for the network installers, from the cleaver, with its integrated fiber scrap bin and dual-clamp precision hold, to the installation tool, with its immediate go/no-go response signal. Installation is as easy as strip, clean, cleave, cam and crimp, with exceptional optical performance guaranteed. Every UniCam Connector is guaranteed to meet the published specification at the time of installation or Corning Cable Systems will replace it.
Features:

• Part Number 95-200-41
• Product Description UniCam® High-Performance Connector, SC, Single-mode (OS2), ceramic ferrule, logo, single pack, blue housing, blue boot
• Product Type Field-Installable Connectors
• Keyed No
• Fiber Category Single-mode (OS2)
• Units per Delivery 1/1
• Broad operating temperature (-40deg to 75deg C)
• Utility and flexibility
• Factory-polished end face
• Consistent optical performance
• Fast termination and no consumables
• Low installation cost
• Minimum insertion loss
• Optimum optical and Listings Passed EIA/TIA 568-B.3
• Intermateability Connectors are FOCIS compliant with TIA/EIA 604-10A and IEC61754-20
• Product Type Field-Installable Connectors
• Technology No-Epoxy/No-Polish
• Keyed No
• Corning Logo Yes
• Packaging Single Pack
• Fiber Category Single-mode (OS2)
• Operation -40 deg C to 75 deg C exceeding EIA/TIA 568-B.3 (-40 deg F to 167 deg F exceeding EIA/TIA 568-B.3)
• Connector Type SC
• Ferrule Ceramic
• Housing Material Composite
• Housing Color Blue
• Boot Color Blue
• Durability 0.2 dB change by 500 rematings, FOTP-21
• Tensile Strength Jacketed Cable 44 N, change 0.2 dB, FOTP-6 (10 lb, change 0.2 dB, FOTP-6)
• Tensile Strength 900u Cable 2.2 N, change 0.2 dB, FOTP-6 (0.5 lb, change 0.2 dB, FOTP-6)
• Temperature Cycling 0.3 dB IL, -40deg to +75deg C, 21 cycles
• Nominal Fiber Outer Diameter 125 um
• Insertion Loss, Typical 0.2 dB
• Insertion Loss, Max. 0.5 dB
• Reflectance -55 dB
• Polish UPC
• RoHS Free of hazardous substances according to RoHS 2002/95/EG
