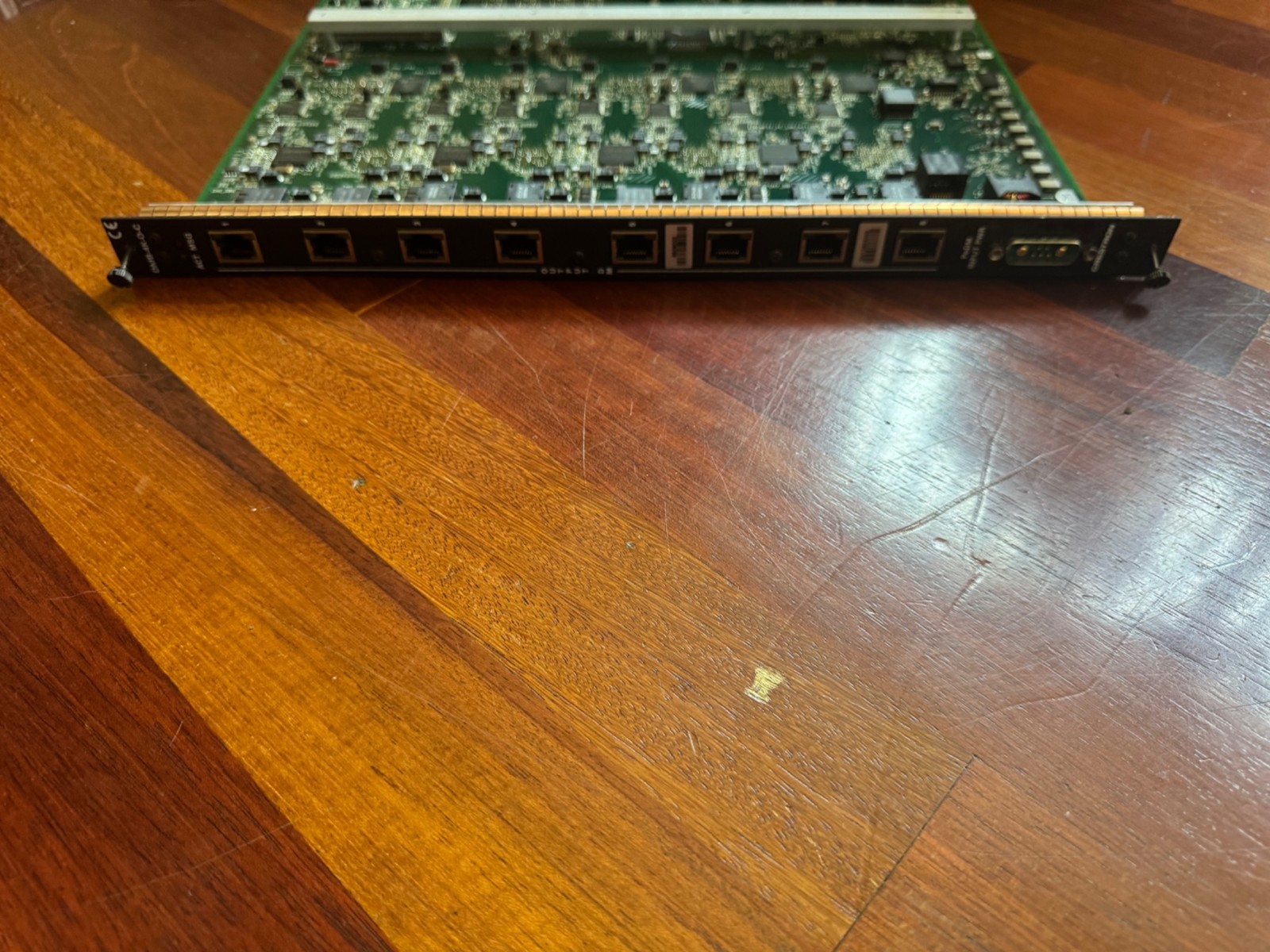

Crestron DMB-4K-O-C HDBaseT 8-Channel 4K DigitalMedia 8G+ Output Blade
DMB-4K-O-C
HDBaseT® Certified 8-Channel 4K DigitalMedia 8G+® Output Blade for DM® Switchers
Fully Tested for years of use.
Sold As Shown
Factory Description:
Provides eight DM 8G+® outputs for any DigitalMedia™ Switcher with modular output blade slots. Supports 4K and Ultra HD video.
The DMB-4K-O-C is an output blade designed for use with any blade-based Crestron® DigitalMedia™ Switcher. It provides eight independent DM 8G+® outputs, which are also compatible with HDBaseT® technology. Using a single CAT5e (or better) twisted pair cable, each DM 8G+ output enables the connection of a DM 8G+ receiver, the output of another DM® switcher, or an HDBaseT® certified display device or receiver.4K Ultra HD
All outputs on the DMB-4K-O-C are capable of handling video resolutions up to 4K and Ultra HD. Support for 4K video also ensures compatibility with the latest generation of computers and monitors with native resolutions beyond 1080p and WUXGA.DigitalMedia 8G+® Technology
Engineered for ultra high-bandwidth and ultimate scalability, DigitalMedia 8G+ provides a true one-wire lossless transport for high-definition video, audio, power, Ethernet, and control signals. All signals are transported over a single cable, supporting 1080p, WUXGA, and 2K signals at distances up to 330 ft (100 m) using Crestron DM Ultra Cable, Crestron DM 8G Cable, or third-party CAT5e (or better). Higher resolutions up to UHD and 4K are supported at distances up to 330 ft (100 m) using DM Ultra Cable, 230 ft (70 m) using DM 8G Cable, or 165 ft (50 m) using CAT5e.1HDBaseT® Standard Certified
Crestron DigitalMedia 8G+ technology is designed using HDBaseT Alliance specifications, ensuring interoperability with other HDBaseT standard certified products. Any DM 8G+ output can be connected directly to an HDBaseT compliant device without requiring a DM receiver.Power over DM® Technology
Power over DM (PoDM) technology affords a true one-wire solution by supplying power to each connected device over the same wire that carries video, audio, and data signals. To enable PoDM power sourcing through the blade’s DM 8G+ input ports, simply connect a compatible PoDM power source to the PoDM input. Compatible power sources include Crestron models PW-5430DUS and DM-PSU-3X8-RPS. Support for PoDM+ is enabled through all eight ports using the DM-PSU-3X8-RPS, or through a maximum of four ports using the PW-5430DUS.
Key Features
- Modular output blade for a DM-MD64X64 or DM-MD128X128 switcher
- Provides eight independent 4K DM 8G+® outputs
- HDBaseT® Standard Certified -- Enables direct connection to other HDBaseT certified equipment
- Handles video resolutions up to 4K and Ultra HD
- Handles 3D video and Deep Color
- Handles Dolby® TrueHD, Dolby Atmos®, and DTS HD® audio formats, and uncompressed 7.1 linear PCM audio
- HDCP 2.2 compliant
- Supports cable lengths up to 330 ft (100 m) for all resolutions up to UHD and 4K using DM® Ultra cable
- Supports cable lengths up to 330 ft (100 m) for 1080p, WUXGA, and 2K using DM 8G® cable or CAT5e
- Supports cable lengths up to 230 ft (70 m) for UHD and 4K using DM 8G cable, or 165 ft (50 m) using CAT5e
- Supports PoDM and HDBaseT PoE power sourcing
- Occupies a single DM® switcher output blade slot
Item Specifics
Brand: Crestron
Type: DMB-4K-O-C
MPN: DMB-4K-O-C
